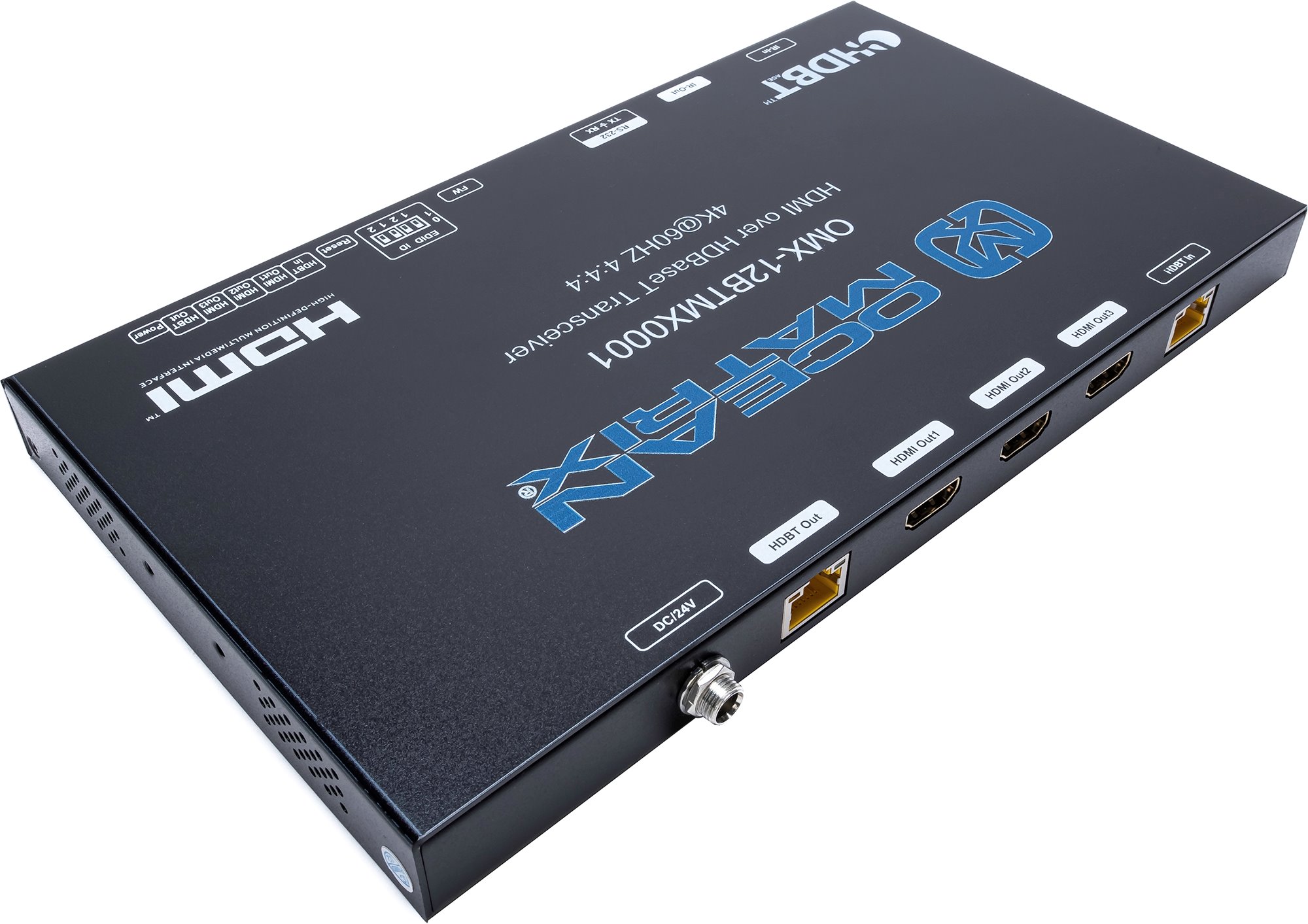

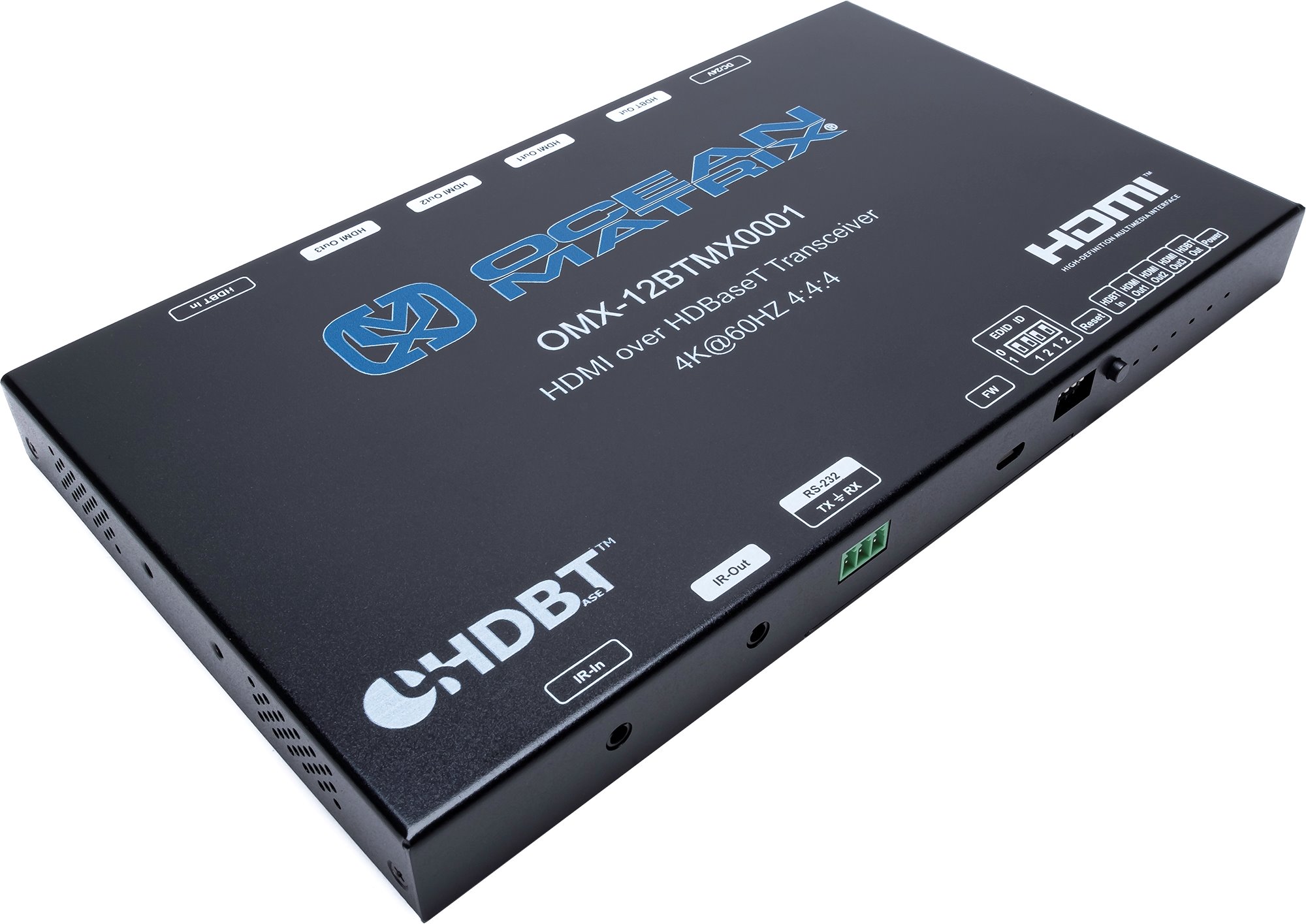

Ocean Matrix OMX-12BTMX0001 4K HDBaseT Transceiver - 1080p 70m / 4K 40m

OMX-12BTMX0001 1.jpg
OMX-12BTMX0001 2.jpg
OMX-12BTMX0001 3.jpg
OMX-12BTMX0001 4.jpg
OMX-12BTMX0001 5.jpg
Part Number: OMX-12BTMX0001  |  $305.95

The Ocean Matrix OMX-12BTMX0001 is the perfect device for further extending your HDBaseT signal, while still supporting the highest quality of uncompressed 4K HD video over a single CAT5e/6 cable. The OMX-12BTMX0001 also features 3x HDMI outputs for sending video to local displays, and supports uncompressed multi-channel audio, EDID management, and bi-directional IR and RS-232 control.




  • HDMI 2.0 Bandwidth Up To 18Gbps
  • Supports Resolutions Up To 4K @60hz YUV 4:4:4
  • Transmits 4K Up To 40m, 1080p Up To 70m
  • HDR10, 3D Support

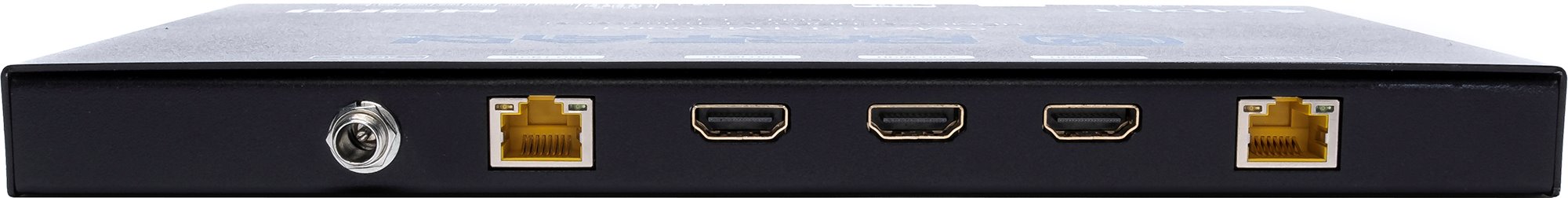

  • 1x HDBaseT In; 1x HDBaseT Out With 3x Looping HDMI Out

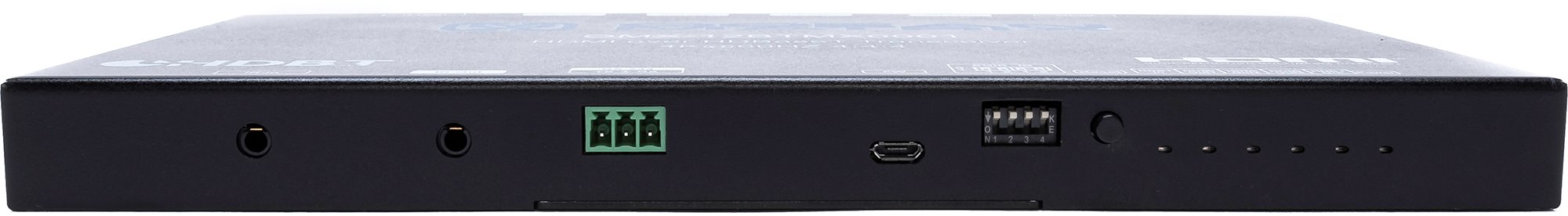

  • Bi-Directional Wide Band IR and RS232 Pass Through
  • Supports 7.1CH & Dolby True HD, DTS-HD Audio
  • HDCP2.2/ HDCP1.4 Compliant
  • Built-in EDID Management

NOTE - HDBaseT Transmitter required. HDBaseT receiver required to use HDBT output.


  • Video Formats Supported: DTV/HDTV: 4K / 1080p / 1080i / 720p / 576p / 480p / 576i / 480i
  • HDMI Version: HDMI 2.0
  • HDCP Compliance: HDCP 1.4/HDCP 2.2
  • Output Audio: Supports 7.1CH DTS-HD, Dolby-HD
  • Maximum Transmission Distance: 70 Meters For 1080p, 40 Meters For 4K
  • Supported Audio Rate: Up To 48 Khz
  • Operating Temperature Range: 14 to 131 °F
  • Power Supply: 24V1A
  • Power Consumption: 11 Watts
  • Dimensions (L/W/H): 9.6in X 5.5in X .9in
  • Weight: 2.3lbs
