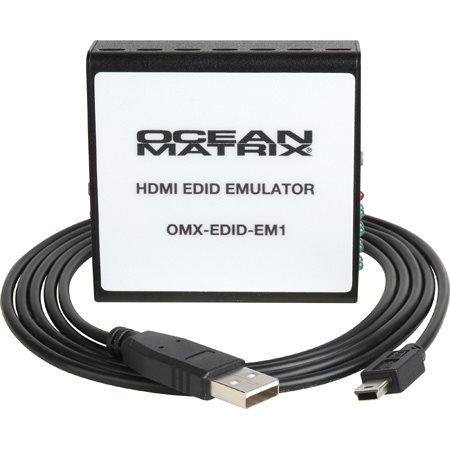

Ocean Matrix OMX-EDID-EM1 HDMI EDID Emulator

Part Number: OMX-EDID-EM1  |  $94.95

The Ocean Matrix OMX-EDID-EM1 Emulator generates EDID signal to correct compatibility issues between a video source and a monitor. Designed for AV installation and equipment testing, the unit has an integrated learning function that allows EDID management through read, write, emulator, and bypass modes.

Features:
  • HDMI and DVI 1.0 compliant
  • Supports 8 sets of default EDID
  • Supports DVI source with a HDMI to DVI adaptor
  • Supports Consumer Electronics Control (CEC) and EDID pass through
  • Can be powered through the USB or HDMI input

    Supports the following HDMI features:
  • High video bandwidth up to 300 MHz/9 Gbps
  • Resolutions up to 1080p@60 Hz and 4Kx2K@24/25/30 Hz
  • 12-bit Deep Color
  • LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio (Sampling rates from 32 kHz to 192 kHz)

    Four EDID Modes:
  • Read: Reads the display's EDID information
  • Write: Overwrites the display's EDID information (display needs to be able to support overwrite function)
  • Emulator: Allows the source device to read the selected EDID information from the unit's default or learned EDID memory
  • Bypass: Allows the source device to read the EDID information from the TV/display directly
Item Includes:
  • Mini-USB to USB Type A Cable
Specifications
  • Inputs: 1- HDMI, 1-USB Mini-B
  • Output: 1-HDMI
  • Vented Enclosure
  • USB Power
  • Dimensions (LWH): 2.8 x 2.8 x 0.9in / 71 x 71 x 23mm
  • Weight: 3.81 oz / 108g
