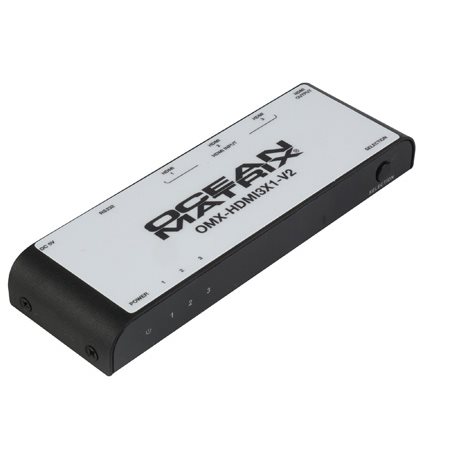

Ocean Matrix OMX-HDMI3X1-V2 4K/UHD 3x1 HDMI 2.0 Switcher with Remote Control

Part Number: OMX-HDMI3X1-V2  |  $45.95

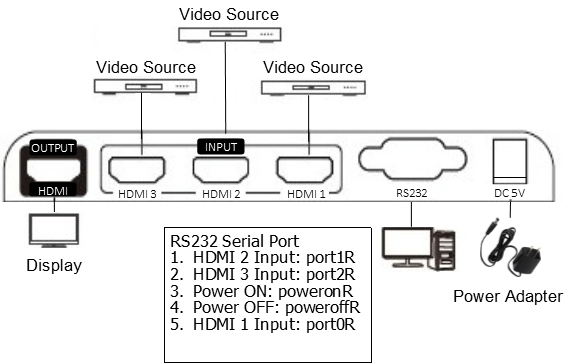

The Ocean Matrix OMX-HDMI3X1-V2 switcher routes three HDMI source devices into one high definition HDMI TV or projector with resolutions up to 4KX2K@60Hz. HDMI source selection can be made with a remote control or from the RS232 serial port on the switcher.

  • Supports HDMI resolution up to 4K x 2K@60HZ and HDMI 3D
  • Input signal can be switched by remote control
  • Supports bandwidth up to 18Gpbs
  • RS232 serial port, baud rate 9600bps
  • Audio: standard, Direct Stream Digital, and HD(HBR)
Item Includes:
  • Remote Control
  • 5VDC/1A Power Supply
  • 1 Year
  • Support 12 bit full HD video, 3D video and 4Kx2K@30/60Hz ultra HD video
  • HDMI Resolutions: 480i/480p/756i/756p/720p/1080i/1080p/4Kx2K@24/25/30/60Hz
  • Compatible with DVI1.0, HDMI1.4, HDMI2.0/ HDCP1.4, HDCP2.2
  • Input port: 3- HDMI / Output ports: 1 - HDMI
  • TMDS Signal: 0.5-1.5Vp-p(TMDS)
  • DDC Signal: 5Vp-p(TTL)
  • Power Consumption: 5W
  • Dimensions (WxDxH): 6.3x2.0x0.79in/160x51.5x20mm
  • Weight: 8 oz/230 g
