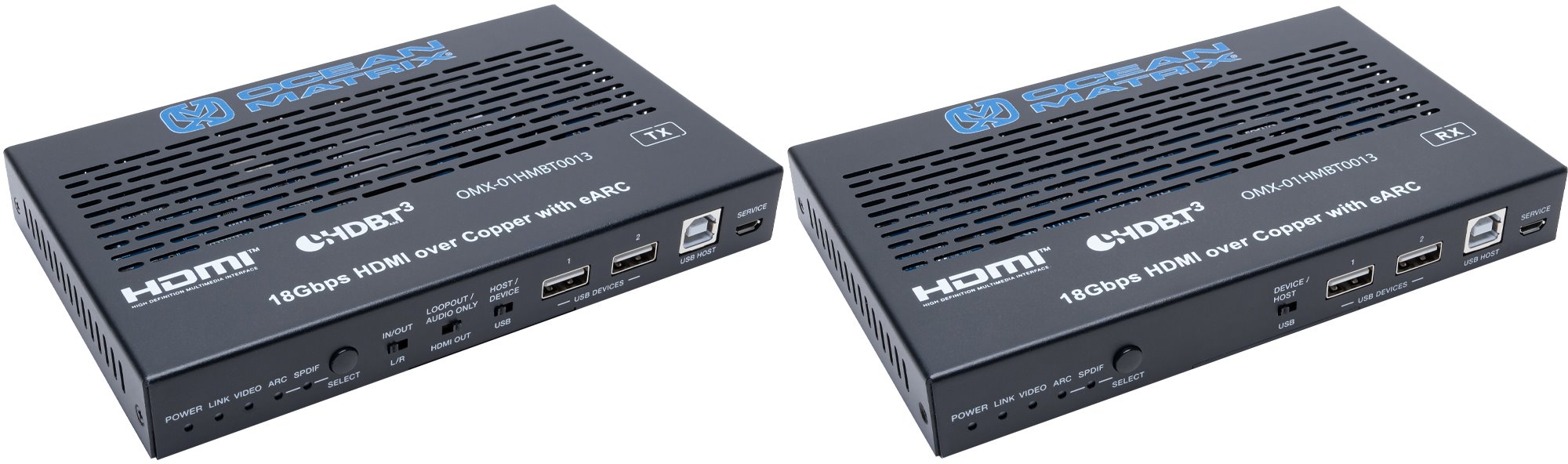

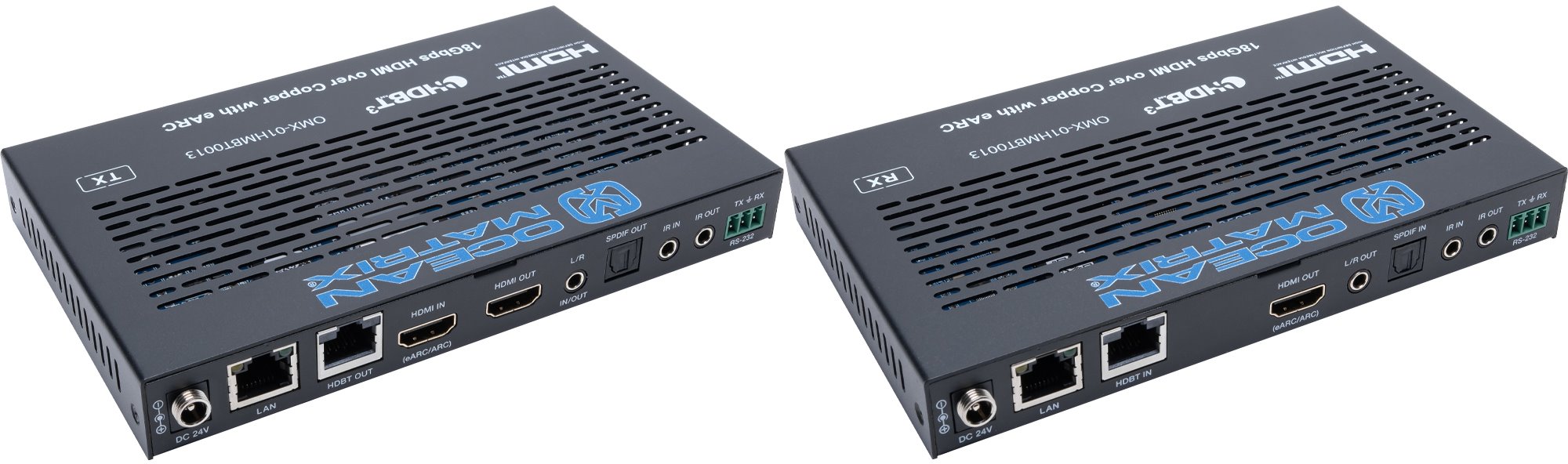

Ocean Matrix OMX-01HMBT0013 HDMI over HDBaseT 3.0 4K60 up to 328ft Extender Set

The Ocean Matrix OMX-01HMBT0013 is an HDBaseT 3.0 extender that can send uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE ethernet, and USB2.0 signals up to 100m/328ft via a single Cat6a/7 cable. This extender is a convenient solution for extension of HDMI and other signals via a single CAT cable over long distances, making it the perfect solution for most commercial applications.


Part Number: OMX-01HMBT0013  |  $880.95
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K @ 60Hz 4:4:4
  • Transmission Distance: 328ft / 100m (via Single Cat 6a/7C Cable)
  • HDBaseT Bandwidth 16Gbps on Main and 2Gbps on Return Link
  • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • Color Depth: 8/10/12-bit
  • Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/94, DTS High Res, DTS-HD Master Audio, DSD
  • L/R Audio Formats: PCM 2.0
  • SPDIF Audio Formats: LPCM 2.0, AC3 5.1, DTS 5.1
  • IR Level: 12Vp-p
  • IR Bandwidth: 20K-60KHz
  • USB Bandwidth: Up to 350Mbps
  • Ethernet: 1000Mbps
  • RS-232: Up to 921600bps
  • TX Inputs: 1 x HDMI In (Type A, 19-Pin Female)
  • TX Outputs: 1 x HDMI Out (Type A, 19-Pin Female), 1 x HDBaseT Out (RJ45, 8-Pin Female), 1 x SPDIF Out (S/PDIF), 1 x L/R Out (3.5mm Stereo Mini-Jack)

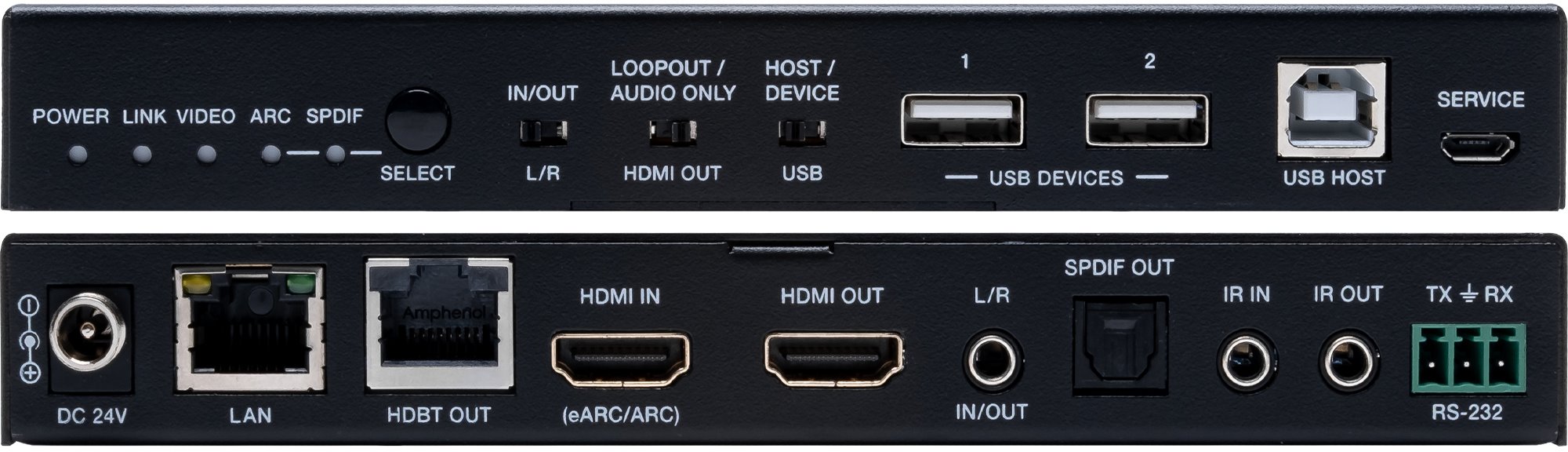

  • TX Controls: 1 x IR In (3.5mm Stereo Mini-Jack), 1 x IR Out (3.5mm Stereo Mini-Jack), 1 x RS-232 (3-Pin-3.81 Phoenix Jack), 1 x Service (Mini-USB, Update Port), 1 x USB Host (USB Type B), 2 x USB Devices (USB Type A), 1 x LAN (RJ45)

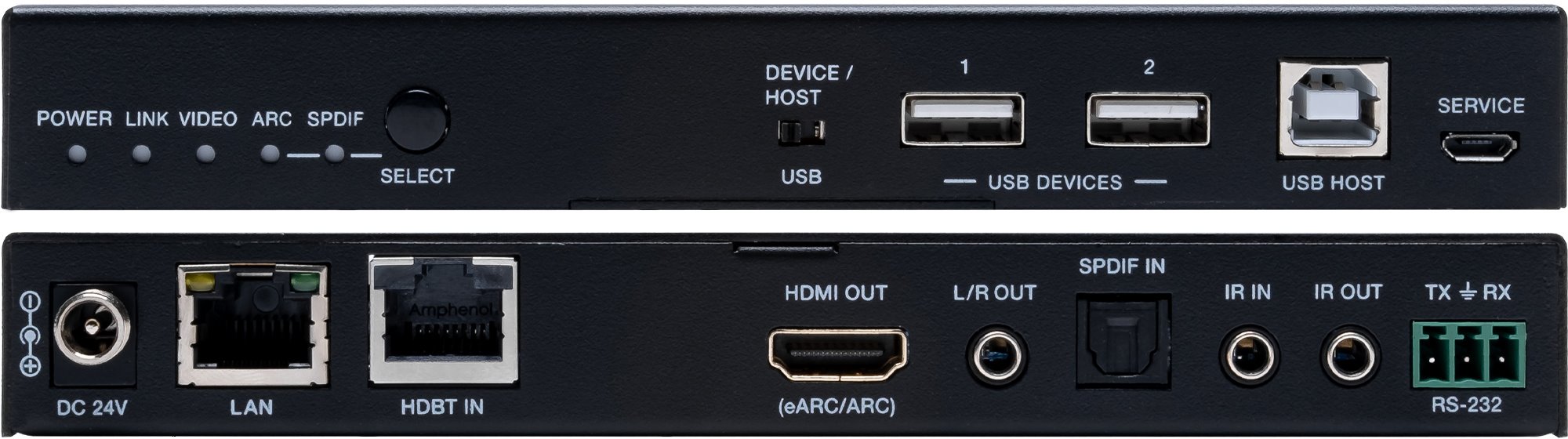

  • RX Inputs: 1 x HDBaseT In (RJ45, 8-Pin Female), 1 x SPDIF In (S/PDIF)
  • RX Outputs: 1 x HDMI Out (Type A, 19-Pin Female), 1 x L/R Out (3.5mm Stereo Mini-Jack)
  • Controls: 1 x IR In (3.5mm Stereo Mini-Jack), 1 x IR Out (3.5mm Stereo Mini-Jack), 1 x RS-232 (3-Pin- 3.81 Phoenix Jack), 1 x Service (Mini-USB, Update Port), 1 x USB Host (USB Type B), 2 x USB Devices (USB Type A), 1 x LAN (RJ45)
  • Dimensions (LxWxH): TX/RX 6.69 x 4.04 x 0.89in  (170 x 102 x 22mm)
  • Weight: TX: 0.98lbs (425g) / RX: 0.96lbs (437g)
  • Power Supply: Input: AC 100-240V 50/60Hz / Output: DC 24V/1A (US/EU Standard, CE/FCC/UL Certified)
  • Power Consumption: 15.36W (POC)
  • Operating Temperature: 32 - 104°F (0 - 40°C)
  • Storage Temperature: -4 - 140°F (-20 - 60°C)
  • Relative Humidity: 20 - 90% RH (No Condensation)
