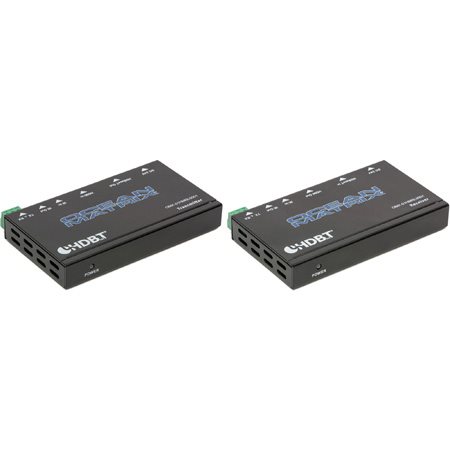

Ocean Matrix 01HMBL0001 HDBaseT 4K HDMI Extender Set with Two-Way IR - RS232 - PoC

Part Number: OMX-01HMBL0001  |  $249.95

The Ocean Matrix OMX-01HMBL0001 extender converts a 1080p@60Hz HDMI signal to standard HDBaseT for 4K video and HD audio transmission over a single Ethernet CAT5e/CAT6 cable up to 131 feet and 1080p video up to 230 feet.   Supports video resolutions up to 4K2K@30Hz and HD audio formats, this extender features bi-directional IR & RS232 signals.

Bi-directional PoC allows both the Tx and Rx to be powered by (1) power supply at either the Tx or Rx.

Features:
  • HDBaseT Lite over a single CAT5e/6 cable
  • Extends RS-232 & Two-Way IR signals
  • LPCM, Dolby TrueHD, and DTS-HD Master Audio
  • Video Resolutions up to 4K2K@30Hz (4:2:0)
  • Two-Way PoC for either transmitter or receiver
  • Transmission Distance: 1080P Up to 230 ft, 4K up to 131 ft over CAT6
  • Rugged Black Powder-Coated Metal Enclosure
  • CE, FCC Certified
Item Includes:
  • 2 IR blasters, 2 green RS232 connectors, & 24V/1A power supply, power supply adapter for type A
Warranty:
  • 1 Year
Specifications
  • Compliance: HDMI 2.0a, HDCP2.2
  • Video Bandwidth: 10.2 Gbps
  • Video Resolutions: up to 4K2K@60Hz(4:2:0),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth: 10-bit, 12-bit, 16-bit
  • Audio Formats: PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Inputs: TX- 1-HDMI Type A, 1 -3.5mm Stereo Mini-Jack, 1-RS232 / RX - 1-RJ45, 1-3.5mm Stereo Mini-Jack
  • Outputs: TX - 1-RJ45, 1-3.5mm Stereo Mini-Jack / RX - 1-HDMI Type A, 1-3.5mm Stereo Mini-Jack, 1-RS232
  • Power Consumption: 12W
  • Power Supply: Input: AC100 - 240V 50/60Hz / Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
  • Dimensions: 4.5 x 2.6 x .675 in
  • Weight: TX 7.1 oz / RX 7.1 oz
