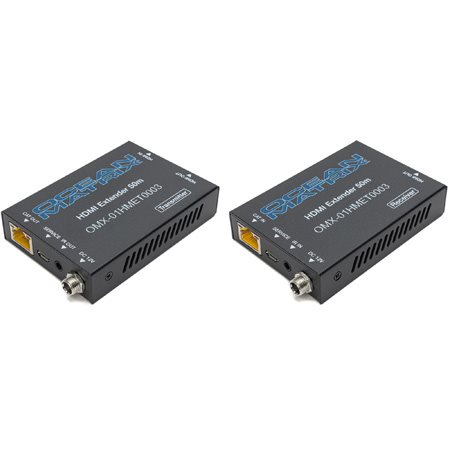

Ocean Matrix 01HMET0003 Extender Set- 4K HDMI 2.0 Over Single CAT6/6a/7 with EDID / PoC / IR - 197 Feet

Part Number: OMX-01HMET0003  |  $199.95

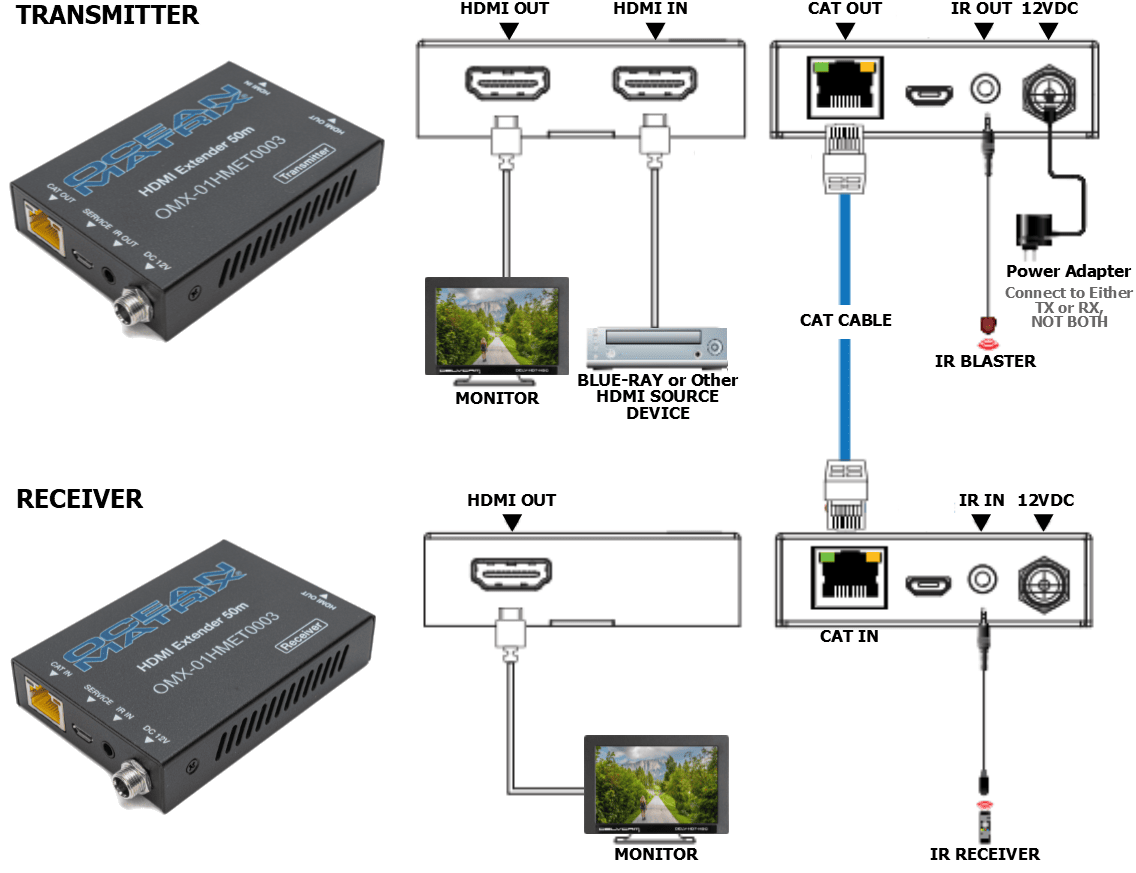

The Ocean Matrix OMX-01HMET0003 extender sends 4K2K@60Hz 4:4:4 HDMI signals up to 197 feet over Cat6/6a/7 cable and up to 164 feet over Cat5e. Features include bi-directional power over cable (PoC), one-way IR signal transmission, and EDID support, and is compatible with many HDMI audio formats including DTS-HD and Dolby TrueHD audio.

Features:
  • HDMI 2.0 Audio/Video over a Single CAT6 Cable

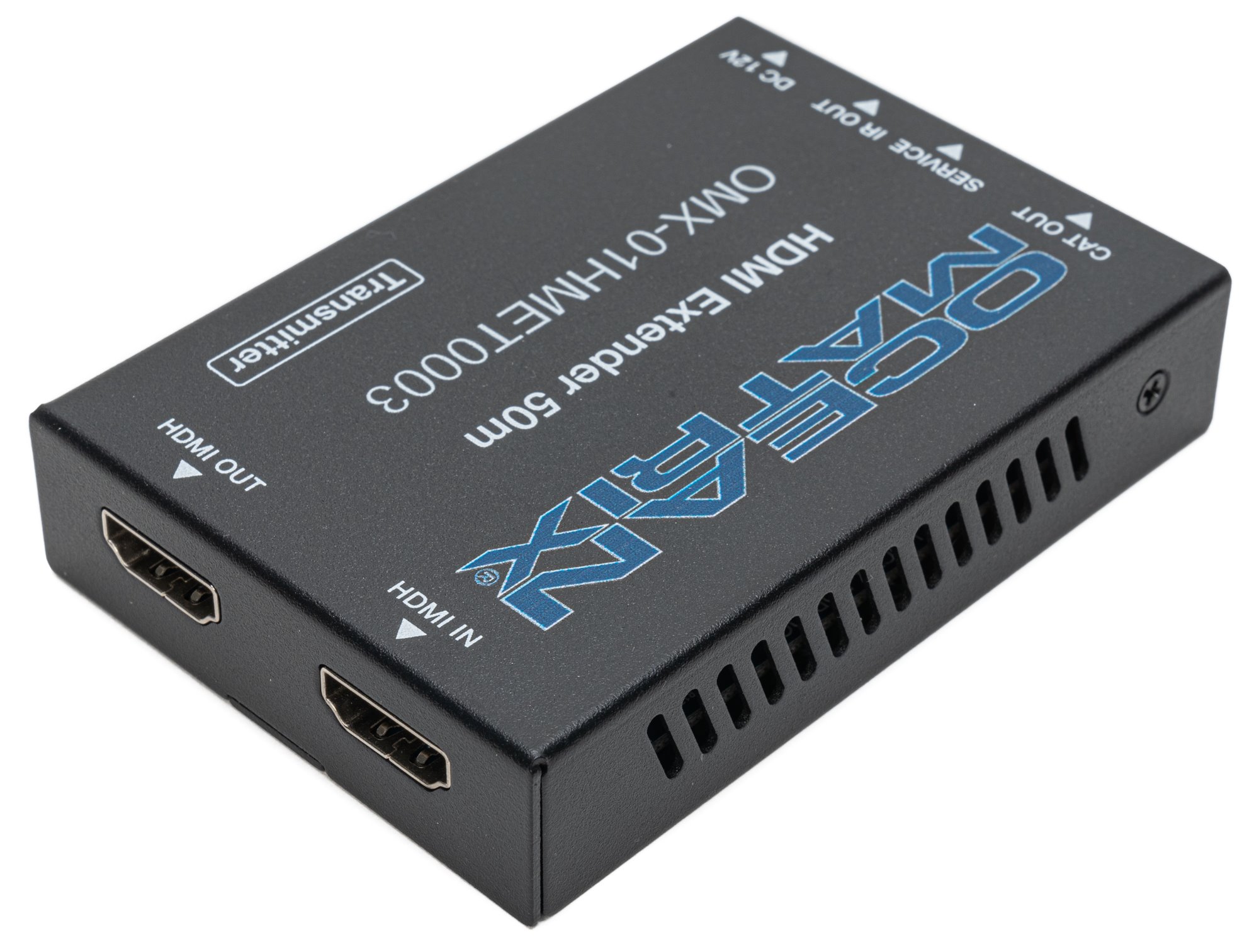

  • HDMI Loop Out on Transmitter
  • Transmission Distance: 4K60Hz Cat 6/6a/7 up to 197 feet (60m), Cat 5e 164 feet (50m) / 4K30Hz/1080p Cat 6/6a/7 230 feet (70m), CAT5e up to 164 feet (50m)
  • Bi-Directional Power over Cable (PoC)
  • One Way IR Pass Through
  • Supports EDID from Receiver Display
  • Rugged Black Metal Enclosure
  • CE, RoHS Certified
Item Includes:
  • 12V/1A Locking Power Adapter, 1- IR Blaster Cable, 1-IR Receiver Cable
Warranty:
  • 1 Year
Specifications
  • Compliance: HDMI 2.0, HDCP 2.2/1.4, DVI 1.0
  • Video Bandwidth: 18 Gbps
  • Video Resolutions: up to 4K2k60 Hz 4:4:4
  • HDR Support
  • Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 /4:2:0, YUV 4:4:4
  • Color Depth: 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0), 8-bit (4K60Hz 4:4:4)
  • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS-ES, DTS HD Master, DTS HD-HRA, DTS:X
  • Power Consumption: 3.84W
  • Dimensions WxDxH (TX / RX): 2.36 x 3.50 x 0.71 in/ 61 x 88 x18mm
  • Weight: TX 5.64oz, RX 5.47oz / TX 160g, RX 150g
