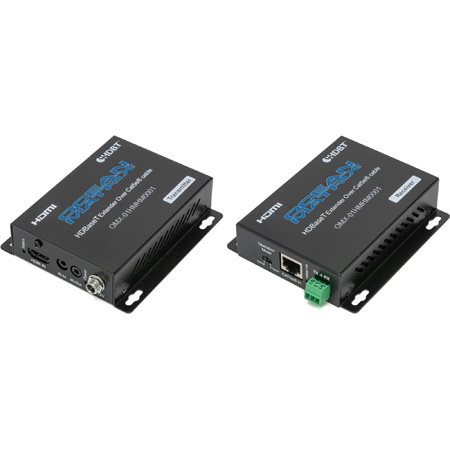

Ocean Matrix 01HMHM0001 HDBaseT 4K HDMI Extender Set with Two-Way IR - RS232 - CEC Pass Through - PoC

The Ocean Matrix OMX-01HMHM0001 HDMI extender meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT5e/CAT6 cable up to 230 feet. This extender supports resolutions up to 4K@30Hz, and features RS232 & two-way IR, as well as PoC from the transmitter to the receiver. The power over cable makes system installation easier and allows for streamlined setups.

Part Number: OMX-01HMHM0001

Features:

Extends Two-Way IR Signals
RS232 Control Signal Transmission
Full HD support: 1080p@60Hz@48b/pixels, 4K@30Hz and 3D
Supports CEC Bypass
Transmission Distance: 1080P Up to 230 Feet, 4K up to 131 Feet
12V PoC
Rugged Black Powder-Coated Metal Enclosure
CE, FCC Certified

Item Includes:

2-IR blasters with mounting pads, 2-RS232 connectors, 1-12V/2 A power supply

Warranty:

1 Year

Compliance: HDMI 2.0, HDCP2.2, HDCP 1.4
Video Formats: DTV/HDTV; 4K/1080P/1080i/720P/576P/480P/576i/480i & 3D
Input Video Signal: 0.5-1.0 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Video Bandwidth: 10.2 Gbps
Output Audio Support: DTS-HD, Dolby-HD
Power Consumption: TX 2.5W, RX 5W
Dimensions (HxWxD): 4.1 x 2.8 x 1.0 in
Weight: TX 9.4 oz / RX 9.3 oz
