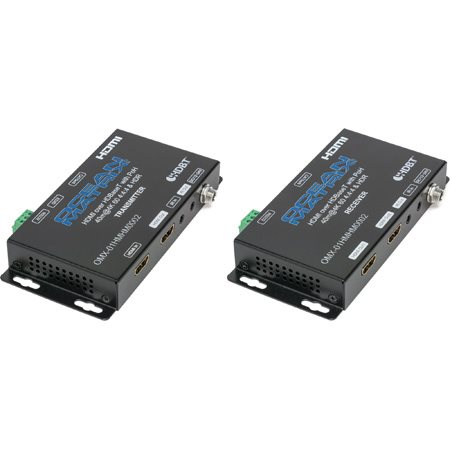

Ocean Matrix 01HMHM0002 HDBaseT 4K HDMI Extender Set with Two-Way IR - RS232 - Two-Way PoH

Part Number: OMX-01HMHM0002  |  $379.95

The Ocean Matrix OMX-01HMHM0002 HDMI extender meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT5e/CAT6 cable up to 131 feet. This extender supports video resolutions up to 4K@60Hz (4:4:4) and features two-way IR & RS232, and 24V PoH. The Power over HDBaseT feature makes system installation easier and allows for streamlined setups.

Features:
  • Extends Two-Way IR & RS232 Pass Through
  • Video Resolutions up to 4K2K@60Hz YUV4:4:4
  • Full HD support: 1080p@60Hz@48b/pixels, 3D and 4Kx2K
  • 1 Looping HMDI on TX, 2 HDMI on RX
  • Transmission Distance: 1080P Up to 230 Feet, 4K up to 131 Feet
  • Two-Way 24V PoH
  • Rugged Black Powder-Coated Metal Enclosure
  • CE, FCC Certified
Item Includes:
  • 2-IR blasters with mounting pads, 2-RS232 connectors, 1-24V/1A power supply
Warranty:
  • 1 Year
Specifications
  • Compliance: HMDI 2.0, HDCP2.2, HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Formats: DTV/HDTV; 4K/1080P/1080i/720P(50Hz)/576P/480P/576i/480i
  • Supports HDR10, 3D
  • Input Video Signal: 0.5-1.0 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • Output Audio Support: DTS-HD, Dolby-HD
  • Power Consumption: 12W
  • Dimensions (HxWxD): 5.5 x 2.63 x 0.8 in
  • Weight: TX 9.1 oz / RX 9.2 oz
