Ocean Matrix 07HMHM0001 4K HDR 4x4 HDMI Matrix Switcher with Downscaling - 18Gbps

Part Number: OMX-07HMHM0001

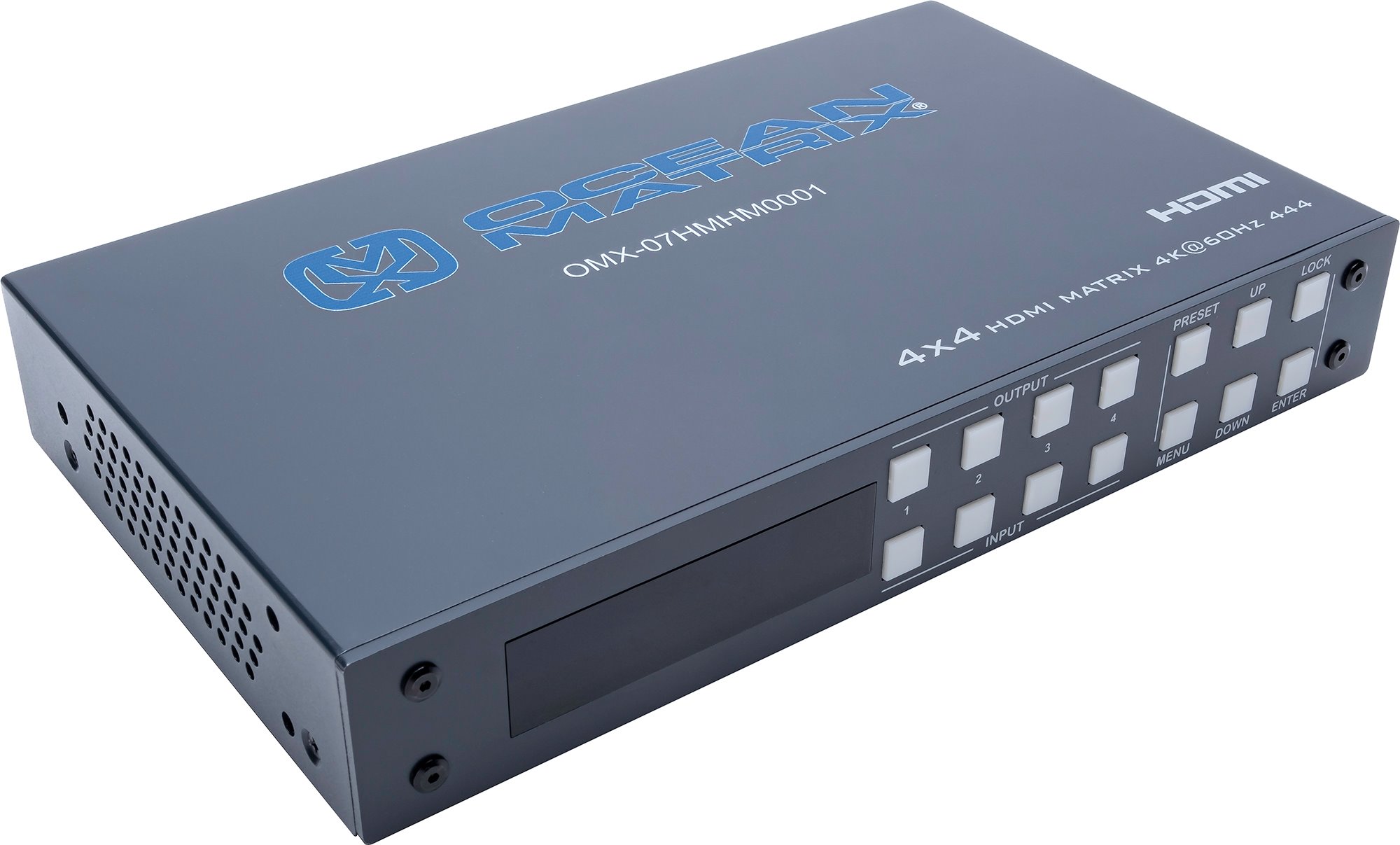

The Ocean Matrix OMX-07HMHM0001 allows up to four HDMI source device connections to independently distribute any source to up to four connected HDMI displays. This HDMI 2.0 unit supports up to 4K@60Hz with flexible switching options for ease of use, as well as digital and analog audio extraction. The OMX-07HMHM0001 also supports mixed 4K & 1080p display outputs and features built-in downscaling for simultaneously displaying 4K content to a 4K monitor and 1080p content to a 1080p monitor.

Features:

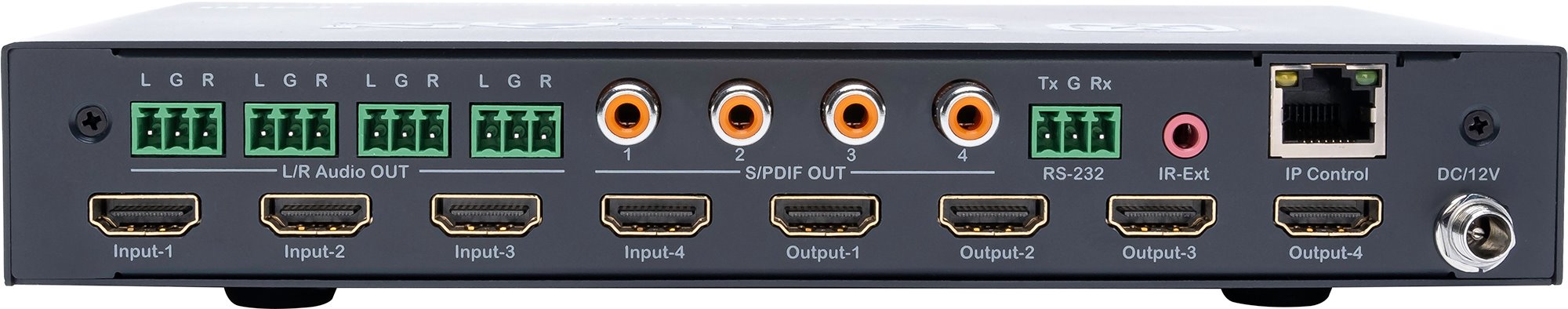

  • 4 x HDMI 2.0 Inputs
  • 4 x HDMI 2.0/1.4 Outputs
  • 4 x SPDIF Coaxial Audio outputs
  • 4 x Analog Audio outputs
  • Supports 4K@60Hz YUV 4:4:4
  • Audio Sampling Rates up to 192kHz
  • Supports HDR10, HLG, and Dolby Vision

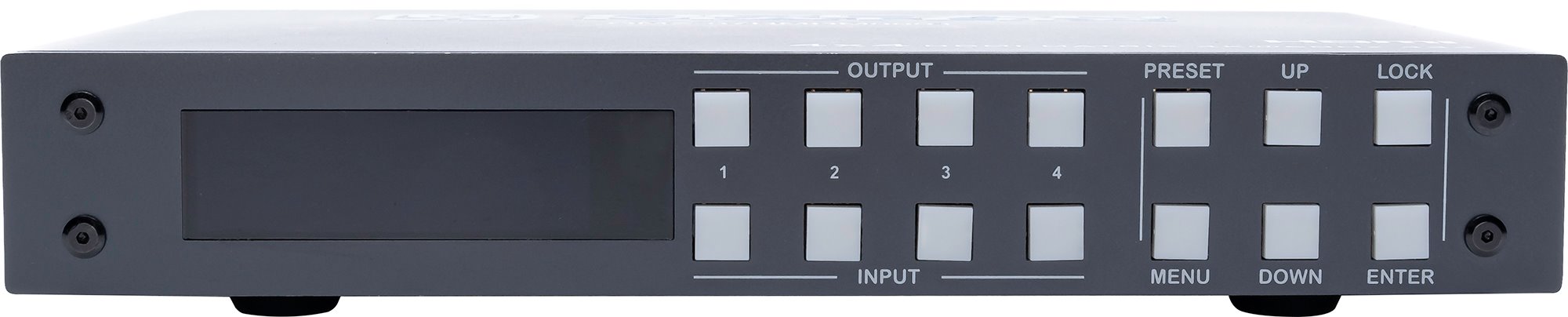

  • Supports IR, RS232 control, TCP/IP control, web GUI control, or Push Button control
  • PCM2.0, Dolby True HD, DTS-HD Master Audio, and LPCM 7.1 Supported
  • Supports Analog and SPDIF Audio Extraction
  • 18Gbps Bandwidth
  • HDCP 1.4 and 2.2 Compliant
  • Built-in EDID Management and Learning

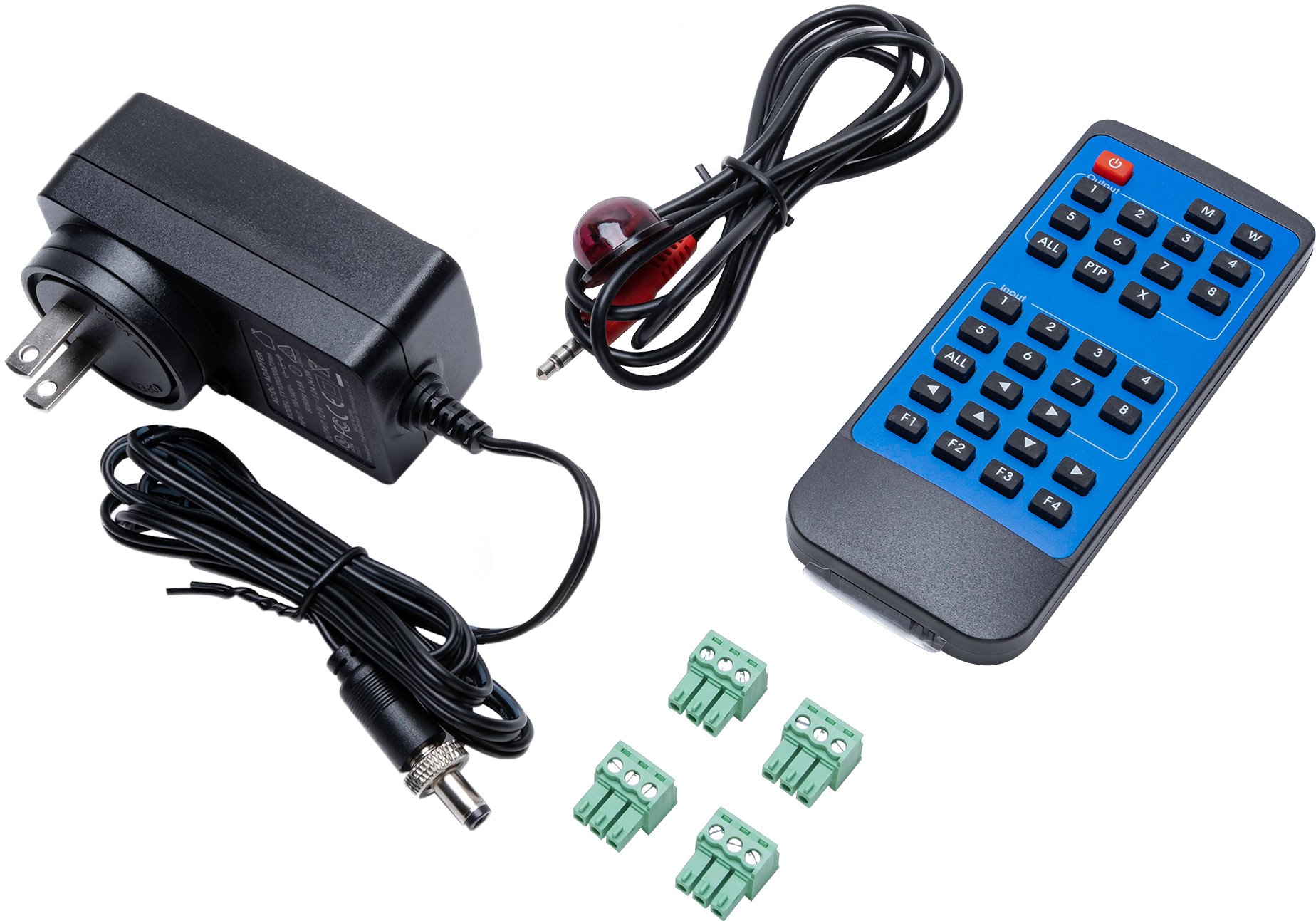

Item Includes:
  • 1 x 12V/2A DC Power Supply
  • 1 x Remote Control
  • 1 x IR Ext RX Cable
  • 5 x Phoenix Plugs for RS232 Cable Termination & L/R Audio Termination
  • 1 x Setup CD
Warranty:

1 Year

Specifications
  • Compliance: HDMI 2.0, HDCP 2.2/1.4, DVI 1.0
  • Video Bandwidth: 18 Gbps
  • Video Resolutions: up to 4K2k60 Hz 4:4:4
  • HDR Support
  • Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 /4:2:0, YUV 4:4:4
  • Color Depth: 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0), 8-bit (4K60Hz 4:4:4)
  • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS-ES, DTS HD Master, DTS HD-HRA, DTS:X
  • Power Consumption: 3.84W
  • Dimensions WxDxH (TX / RX): 2.36 x 3.50 x 0.71 in/ 61 x 88 x18mm
  • Weight: TX 5.64oz, RX 5.47oz / TX 160g, RX 150g
