Ocean Matrix OMX-07HMHM0006 4:4:4 HDMI 4x4 Matrix & Video Wall Controller with EDID Management

OMX-07HMHM0006 1.jpg
OMX-07HMHM0006 2.jpg
OMX-07HMHM0006 3.jpg
OMX-07HMHM0006 4.jpg
OMX-07HMHM0006 5.jpg
Part Number: OMX-07HMHM0006

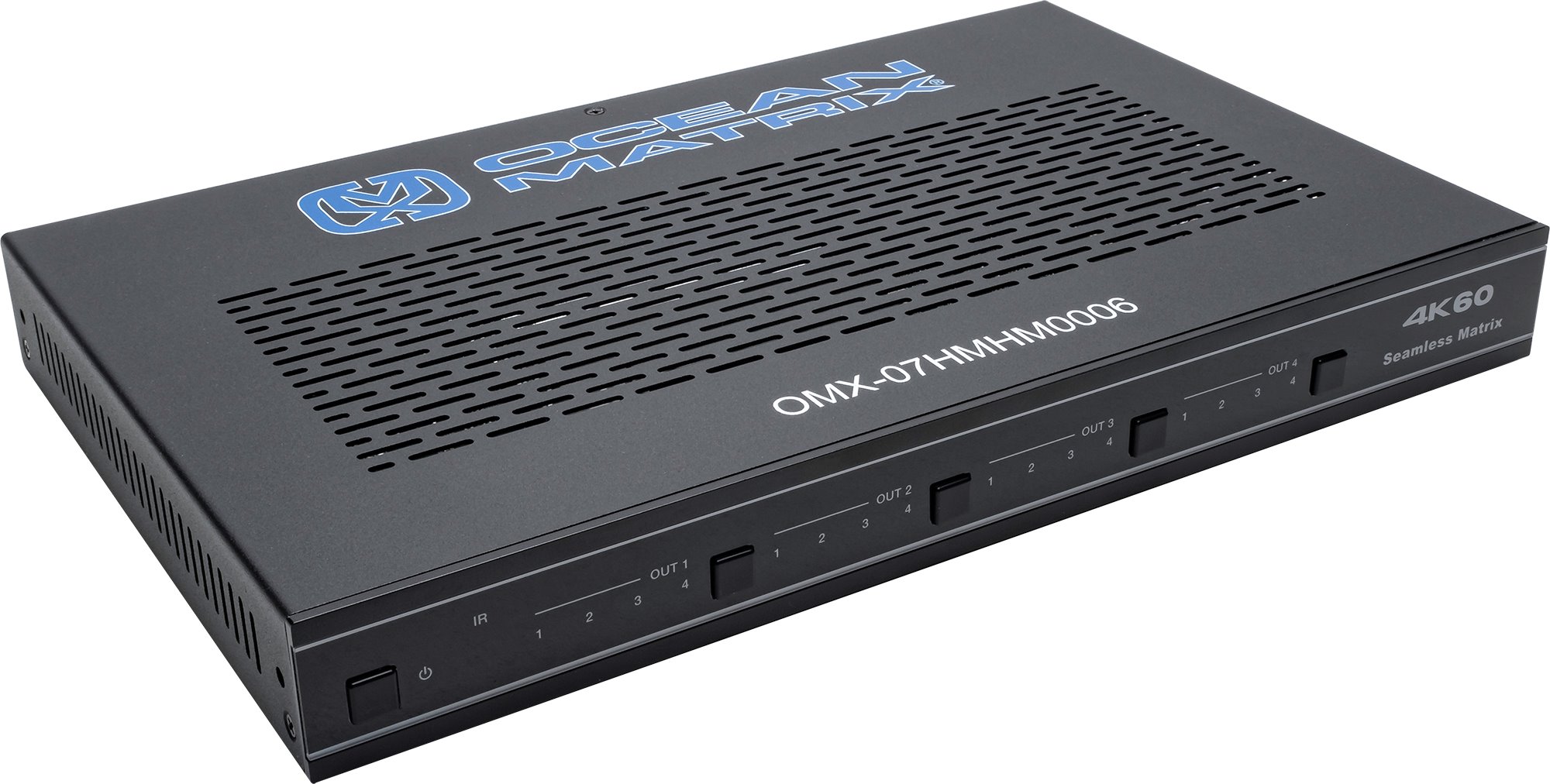

The Ocean Matrix OMX-07HMHM0006 is an HDMI 4x4 matrix and video wall controller that supports up to 4K@60Hz 4:4:4 resolutions. The unit can function as a 4x4 seamless matrix switcher and also supports ten video wall modes. The OMX-07HMHM0006 also features a web browser interface module for control and configuration of the matrix when used as a stand-alone unit or with a third party control system. The OMX-07HMHM0006 can be controlled via the front-panel push buttons, IR remote control, RS-232 interface, and TCP/IP.

Features:
  • HDMI 2.0b and HDCP 2.2 / 1.4 Compliant
  • Seamless Video Switching
  • Video Input Supports all Industry Standard Resolutions Including GA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840x2160 @60Hz 4:4:4, 4096x2160 @60Hz 4:4:4)
  • HDMI Output Supports Upscaling or Downscaling to any Resolution, up to 4096x2160@60Hz 4:4:4
  • Supports LPCM, DD, DD+, DTS, Dolby TrueHD, and DTS HD-master Audio
  • Built-In EDID Management
  • Control and Configure the Matrix Through the Web Interface Module

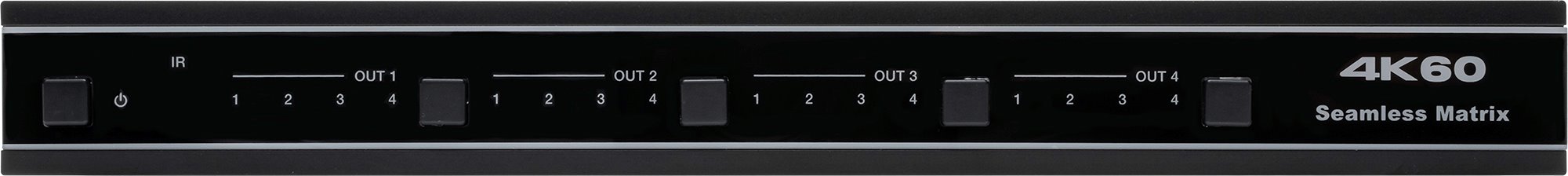

  • Control via Front Panel Buttons, Infrared Remote Control, RS-232 and TCP/IP

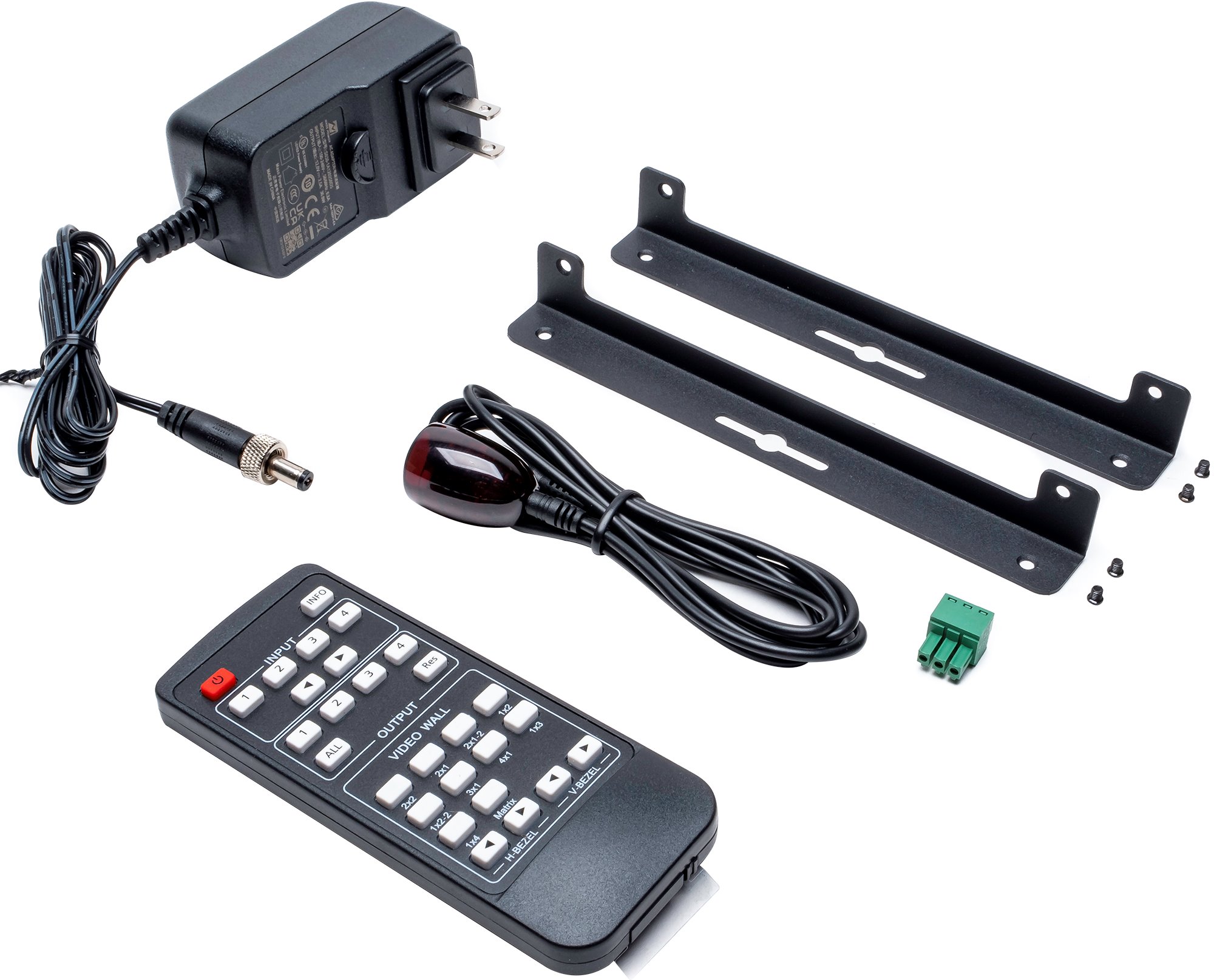

Item Includes:
  • 1 x OMX-07HMHM0006
  • 1 x Matrix IR Remote
  • 1 x 3pin-3.81mm Phoenix Connector (male)
  • 1 x 20-60KHz IR Wideband Receiver Cable (1.5 meters)
  • 2 x Mounting Ears
  • 4 x Machine Screws (KM3*4)
  • 1 x 12V/2.5A Locking Power Adapter
Warranty:
  • 1 Year
Specifications

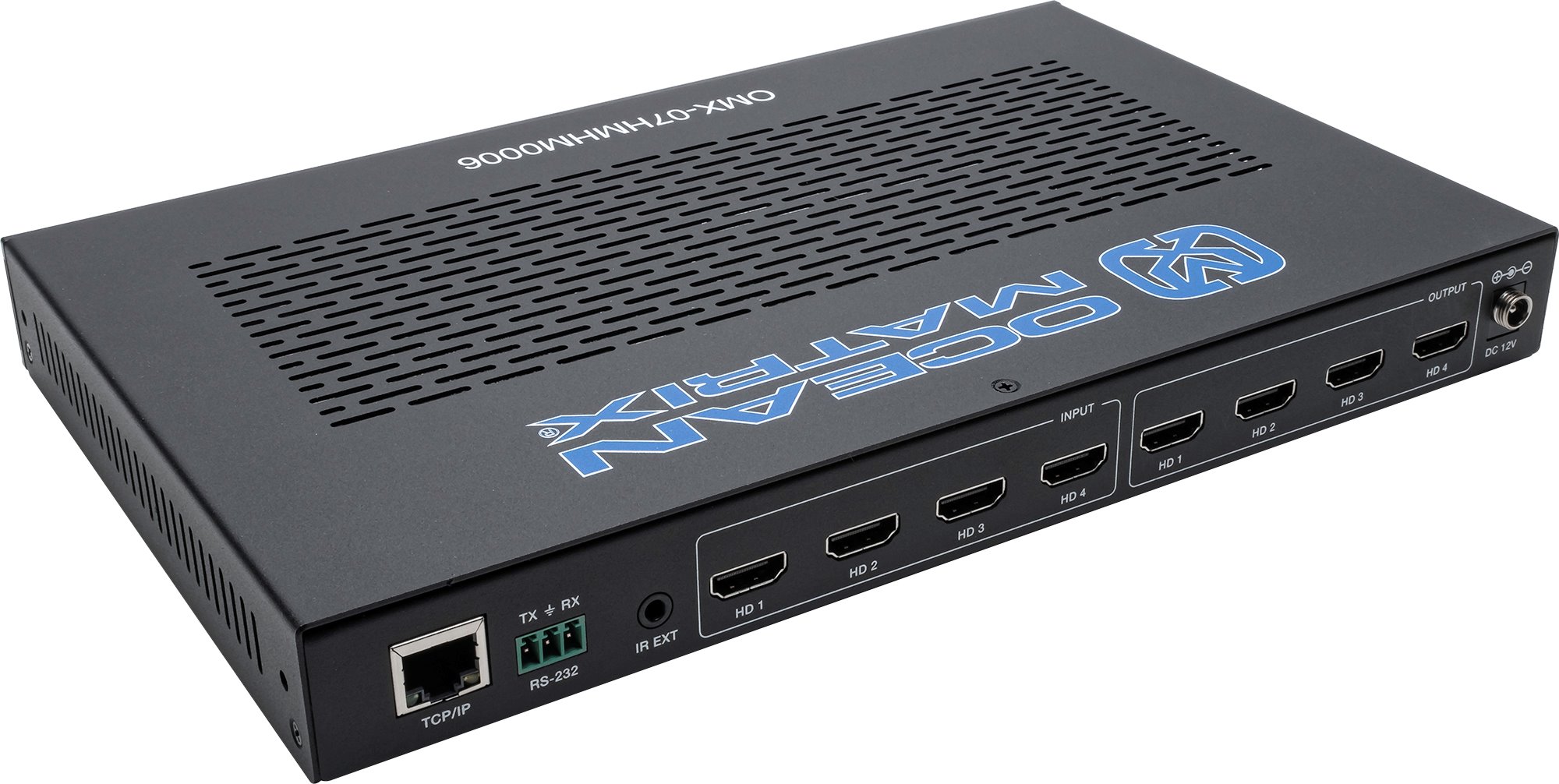

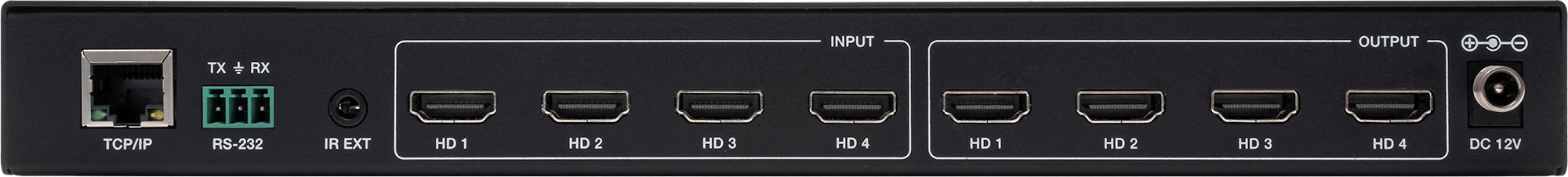

  • Inputs: 4 x HDMI Input (Type A, 19-pin Female)
  • Outputs: 4 x HDMI Output (Type A, 19-pin Female)
  • Control Interface: 1 x RS-232 (3-pin - 3.81mm Phoenix Terminal), 1 x TCP/IP (RJ45), 1 x IR EXT (3.5mm Stereo Mini Jack)
  • HDMI Compatibility: HDMI 2.0
  • HDCP Compatibility: HDCP 2.2 / HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolution: Input: VGA-WUXGA (up to 1920x1200@60Hz), 480i-4K (3840x2160@60Hz 4:4:4, 4096x2160@60Hz 4:4:4) Output: 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60, auto
  • Color Space: RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit
  • HDMI Audio Format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
  • Dimensions (LxWxH): 10.625 x 6.5 x 1.192in
  • Weight: 2.625lbs (1189g)
  • Power Supply: AC 100~240V 50/60Hz
  • Power Consumption: 19.56W
  • Operating Temperature: 32-104°F (0-40°C)
  • Storage Temperature: 32 - 104°F (0 - 40°C)
