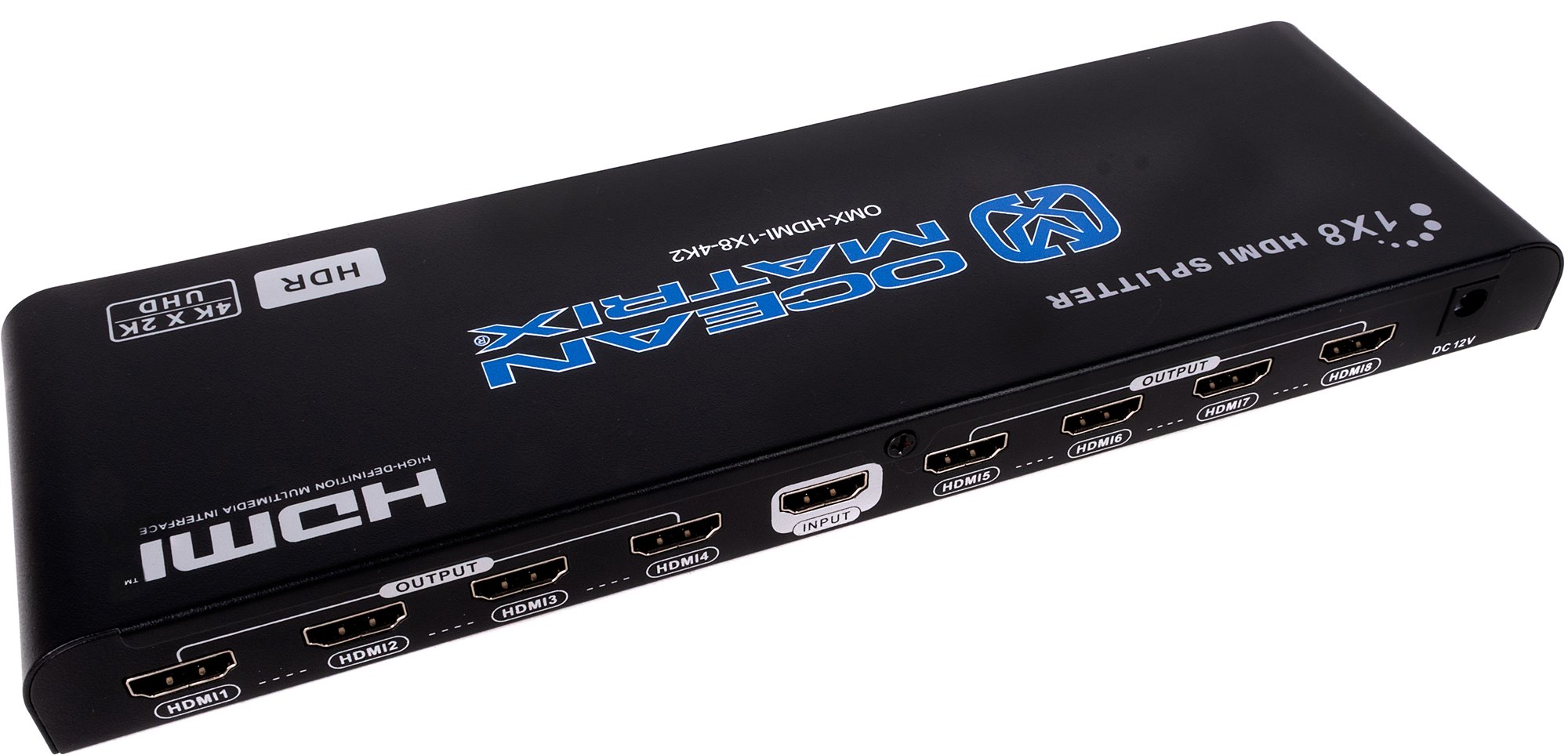

Ocean Matrix HDMI-1X8-4K2 4k UHD 1x 8 HDMI 2.0 Splitter/Distribution Amplifier with EDID

The Ocean Matrix OMX-HDMI-1X8-4K2 is a 1x8 HDMI splitter that can distribute a single 4K x 2K HDMI signal to up to 8 synchronized displays. This unit has an onboard intelligent EDID management system that allows the OMX-HDMI-1X8-4K2 to match and automatically output the best display resolutions and can output 4K x 2K and 1080p signals simultaneously. This is ideal for Entertainment spaces, sports bars, restaurants, and digital signage.

Part Number: OMX-HDMI-1X8-4K2

Distribute 1 HDMI source to up to 8 HDMI displays
Support Ultra HD resolutions 4K x 2K@60Hz (4:4:4 8bpc)
Supports HDMI 4:4:4 chroma subsampling
Supports HDR
HDMI 2.0 and HDCP 2.2 compliant
Low power consumption
Built-in intelligent EDID Management, automatically matching outputs with the best display resolution
16 preset EDID profiles
Simultaneous output mix of 4k and 1080p signals
Plug and play

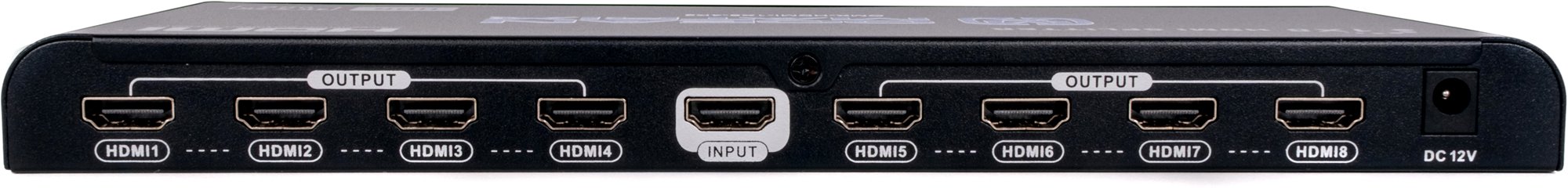

Input: 1 HDMI
Output: 8 HDMI
Power indicator LED: 1
Signal Indicator LED: 8
HDMI Version: HDMI 2.0, backwards compatible with HDMI 1.4
HDCP Version: Compatible with HDCP 1.4, HDCP 2.2
HDMI Resolution: 480i/480p/576i/720p/1080i/1080p/4K x 2K@24/25/30/60Hz (4:4:4 8bpc)
Frequency Range: 25MHz – 600MHz
Video Format: 3D Video and 4K x 2K@30/60Hz (4:4:4 8bpc) Ultra HD Video
Input and output TMDS signal: 0.7-1.5Vp-p (TMDS)
Input and output DDC signal: 5Vp-p (TTL)
Audio Formats: Standard Audio, DSD (Direct Stream Digital), HD (HBR) audio
Working Temperature: 32°F° to 140°F (0°C to 60°C)
Power Supply: 12V/1A
Power consumption: <8W
Dimensions (in):10.3 x 3.2 x 0.9
Weight: 1lb (454g)
