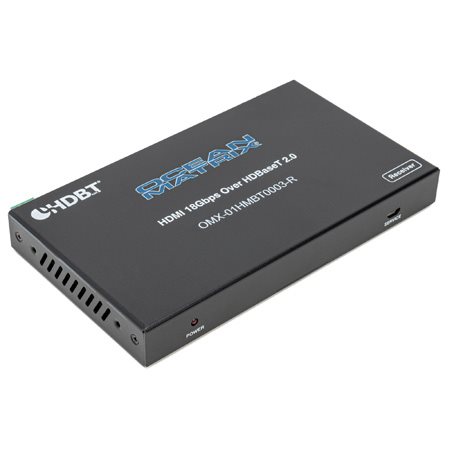

Ocean Matrix OMX-01HMBT0003-R HDBaseT 4K HDMI USB KVM Receiver with Two-Way IR - RS232 - CEC - PoC

Part Number: OMX-01HMBT0003-R  |  $199.95

The Ocean Matrix OMX-01HMBT0003-R 4K HDMI USB KVM Receiver meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT6/6A cable up to 131 feet. Supporting video resolutions up to 4K2K@60Hz(4:4:4), this extender features two-way IR,  RS232 control, and two-way 24V PoC making system installation easier and allowing for streamlined setups.

Features:
  • USB/KVM Functionality & CEC Enabled
  • Extends Two-Way IR & RS232 Pass Through
  • Video Resolutions up to 4K2K@60Hz YUV4:4:4
  • Transmission Distance: 1080P Up to 230 Feet, 4K up to 131 Feet
  • Up to 7.1 Channels HD Audio
  • Two-Way 24V PoC
  • Rugged Black Powder-Coated Metal Enclosure
  • CE, FCC Certified
Item Includes:
  • 2 Mounting Ears, 1-RS232 Connector, 1-24V/1A power supply
Warranty:
  • 1 Year
Specifications
  • Compliance: HDMI 2.0b, HDCP2.2, HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolutions: up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz,1080P 3D@60Hz
  • Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth: 10-bit, 12-bit
  • HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Power Consumption: 7.5W
  • Dimensions(HxWxD): 0.8 x 6.8 x 3.8 in
  • Weight: 0.92 lb
