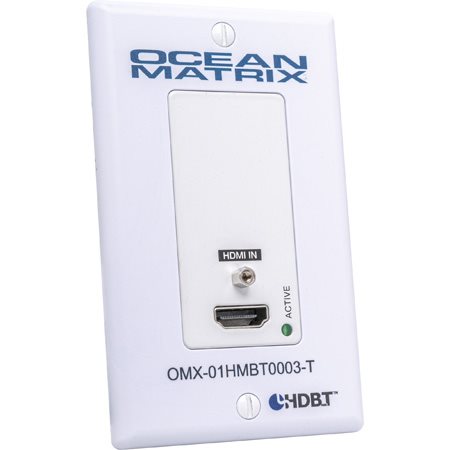

Ocean Matrix OMX-01HMBT0003-T HDBaseT 4K HDMI 1-Gang Wall Plate Transmitter with Two-Way IR - RS232 - PoC

Part Number: OMX-01HMBT0003-T  |  $199.95

The Ocean Matrix OMX-01HMBT0003-T 1-Gang Wall Plate Transmitter meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT6/6A/7 cable up to 131 feet. Supporting video resolutions up to 4K2K@50/60Hz(4:4:4), HDMI audio and optical audio formats, this transmitter features two-way IR & RS232 signals, and two-way 24V PoC. Convenient in-wall locations allow efficient and clean installations in boardrooms, conference rooms, and media rooms.

Features:
  • Extends Two-Way IR & RS232 Pass Through
  • Video Resolutions up to 4K2K@60Hz YUV4:4:4
  • Transmission Distance: 1080P Up to 230 Feet, 4K up to 131 Feet
  • Up to 7.1 Channels HD Audio
  • Two-Way 24V PoC
  • Black Metal Enclosure with White Front Panel
  • CE, FCC Certified
    Note: This transmitter does not support KVM/USB Functions of the OMX-01HMBT0003-R Receiver.
Item Includes:
  • 2-3Pin RS232 connectors, 2-2Pin RS232 Connectors
Warranty:
  • 1 Year
Specifications
  • Compliance: HDMI 2.0b, HDCP2.2, HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolutions: up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz,1080P 3D@60Hz
  • Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth: 10-bit, 12-bit
  • HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Optical Audio Formats: LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
  • Power Consumption: 9W
  • Dimensions(HxWxD): 4.1 x 1.8 x 1.2 in
  • Weight: 5 oz
