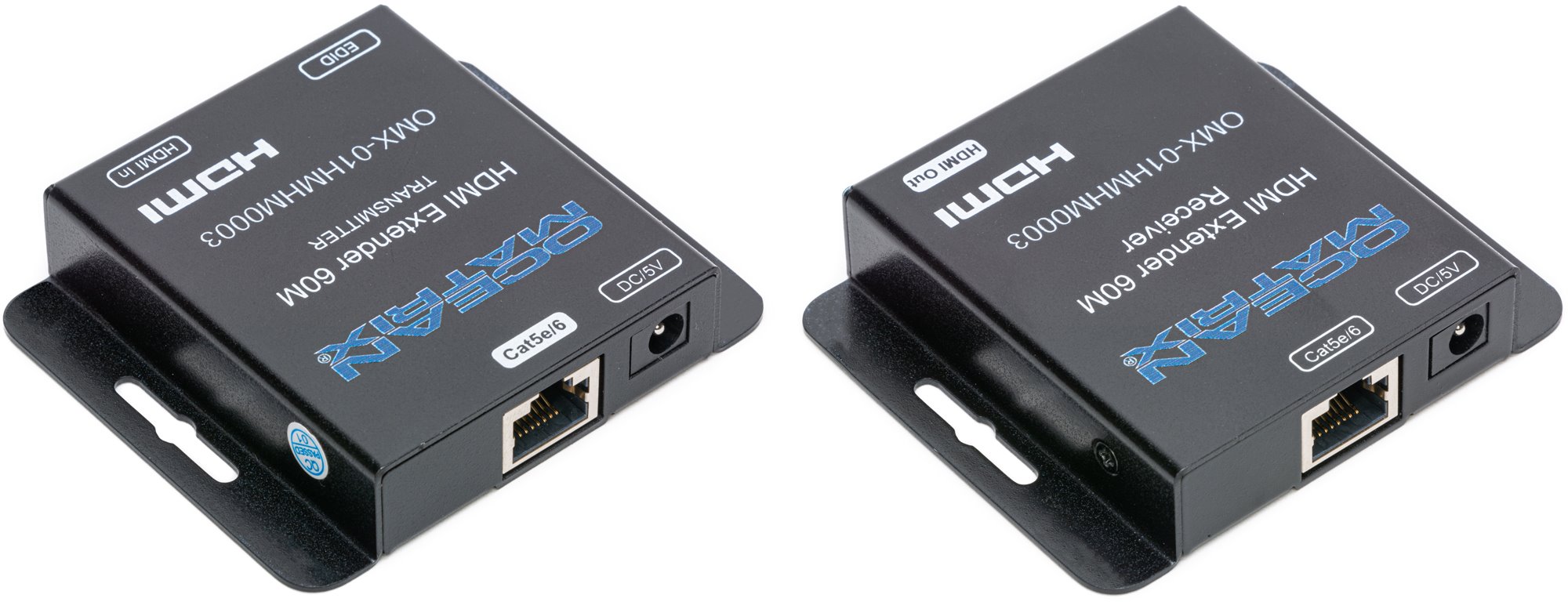

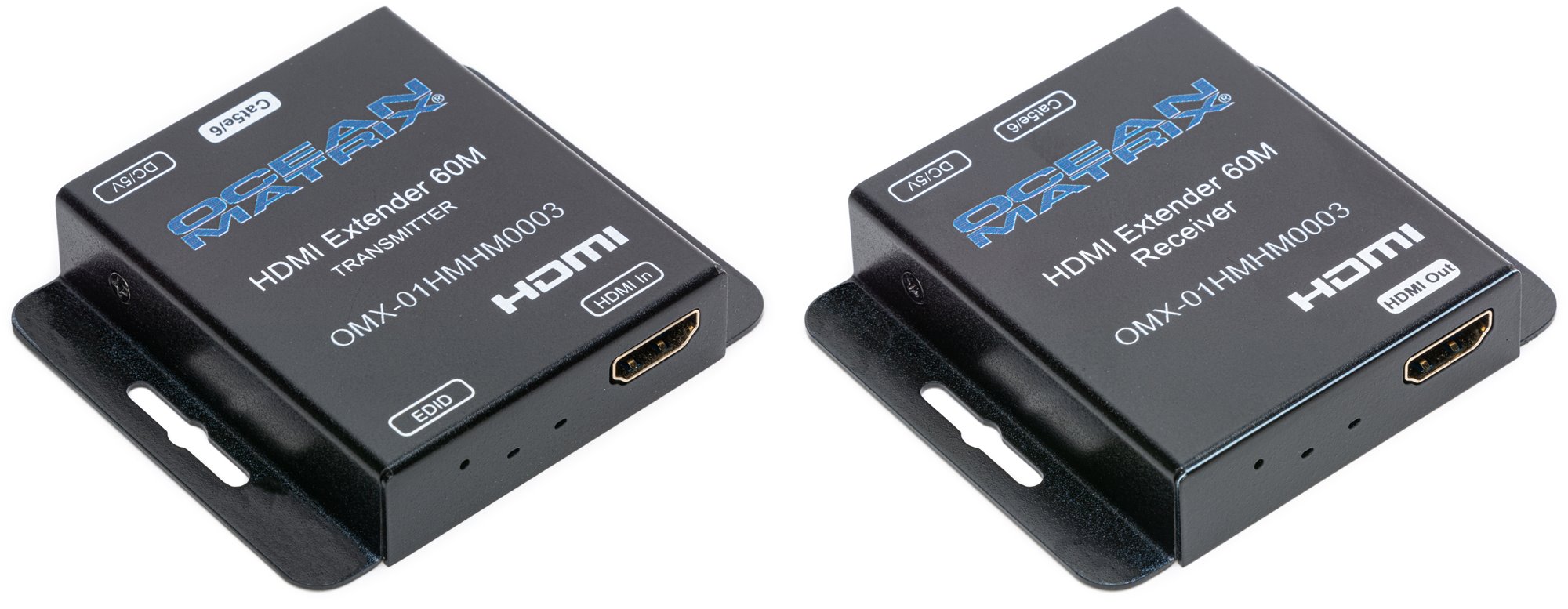

Ocean Matrix OMX-01HMHM0003 HDMI 1080P 60HZ Extender over Single Cat5e / 6 with Built-In EDID and POC

The Ocean Matrix OMX-01HMHM0003 Extender sends 1080P@60Hz HDMI signals up to 196 feet over a single CAT5e/6 cable. Features include built-in EDID management to facilitate compatibility between the source and display, as well as bi-directional PoC (power over cable) for streamlined installations. This extender is compatible with many video formats including DVI 1.0 and VESA as well as DTS-HD and Dolby True HD audio formats.

Ideal for digital signs, trade shows, small offices, classrooms, retail settings, and houses of worship where the HDMI video sources are located farther than conventional HDMI signals can reliably travel.

Part Number: OMX-01HMHM0003

High definition resolution up to Full HD 1080p@60hz YUV4:4:4
Transmits DVI/HDMI and Audio up to 196 feet over CAT5e/6 without Signal Loss
Supports 3D
Built-in EDID Management Function
Support Bi-Directional POC: 196 ft when RX powered by TX and 98 ft when TX powered by RX
Rugged Metal Enclosure

Input Video Signal: 0.5-1.0 Volts P-P
Input DDC Signal: 5 volts p-p(TTL)
Video Output: HDMI
Video Formats: DTV/HDTV:720P/1080i/1080P 3D video
Audio Formats: DTS-HD Master Audio, Dolby true-HD
Transmission Distance: up to 196 ft/ 60m over CAT5e/6
Power Consumption: 2W
Dimension (LxWxH) TX/RX each: 3.13 x 2.6 x 0.63 inches
Net Weight Net Weight TX and RX: 8.2 oz
