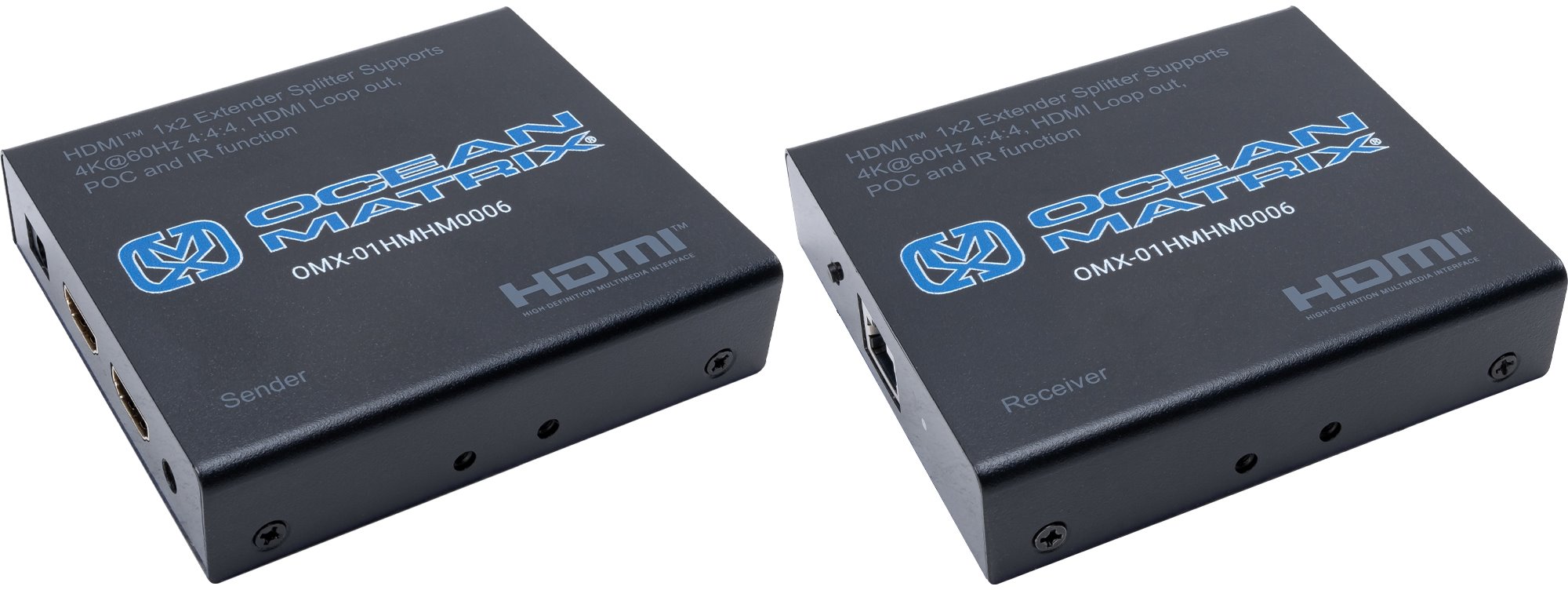

Ocean Matrix OMX-01HMHM0006 HDMI 1x2 Extender Splitter Set with HDMI Loop Out - POC - IR Function

OMX-01HMHM0006 1.jpg
OMX-01HMHM0006 2.jpg
OMX-01HMHM0006 3.jpg
OMX-01HMHM0006 4.jpg
OMX-01HMHM0006 5.jpg
Part Number: OMX-01HMHM0006  |  $169.49

The Ocean Matrix OMX-01HMHM0006 HDMI is a 1x2 HDMI extender splitter set that combines splitting and extension functionality, allowing for local displaying and remote viewing. The HDMI signal is distributed simultaneously to local and remote outputs, making this device ideal for digital signage applications that require high-quality HDMI video up to 4K@60Hz 4:4:4. Additionally, the OMX-01HMHM0006 can extend IR signals from remote controls, allowing you to control video sources directly from the display-end of your setup. For additional convenience, the unit supports two-way POC (Power Over Cable) enabling either the transmitter or receiver to be powered by a single 12V power supply.


Features:

  • Supports High Resolutions up to 4K@60Hz YUV 4:4:4
  • Supports Full 3D Format
  • HDCP 2.2 & HDCP 1.4
  • Data Transfer Rate p to 6.0Gbps Per Channel (18Gbps All Channels)
  • TMDS Clock up to 600MHz
  • Supports 12bit Per Channel (36bit all Channels) Deep Color
  • Supports Uncompressed Audio Such as DTS, Dolby Digital (Including DTS-HD Master Audio and Dolby TrueHD)
  • Supports 2-Way 12V POC (Power over Cable) from Tx to Rx or Rx to Tx



Specifications

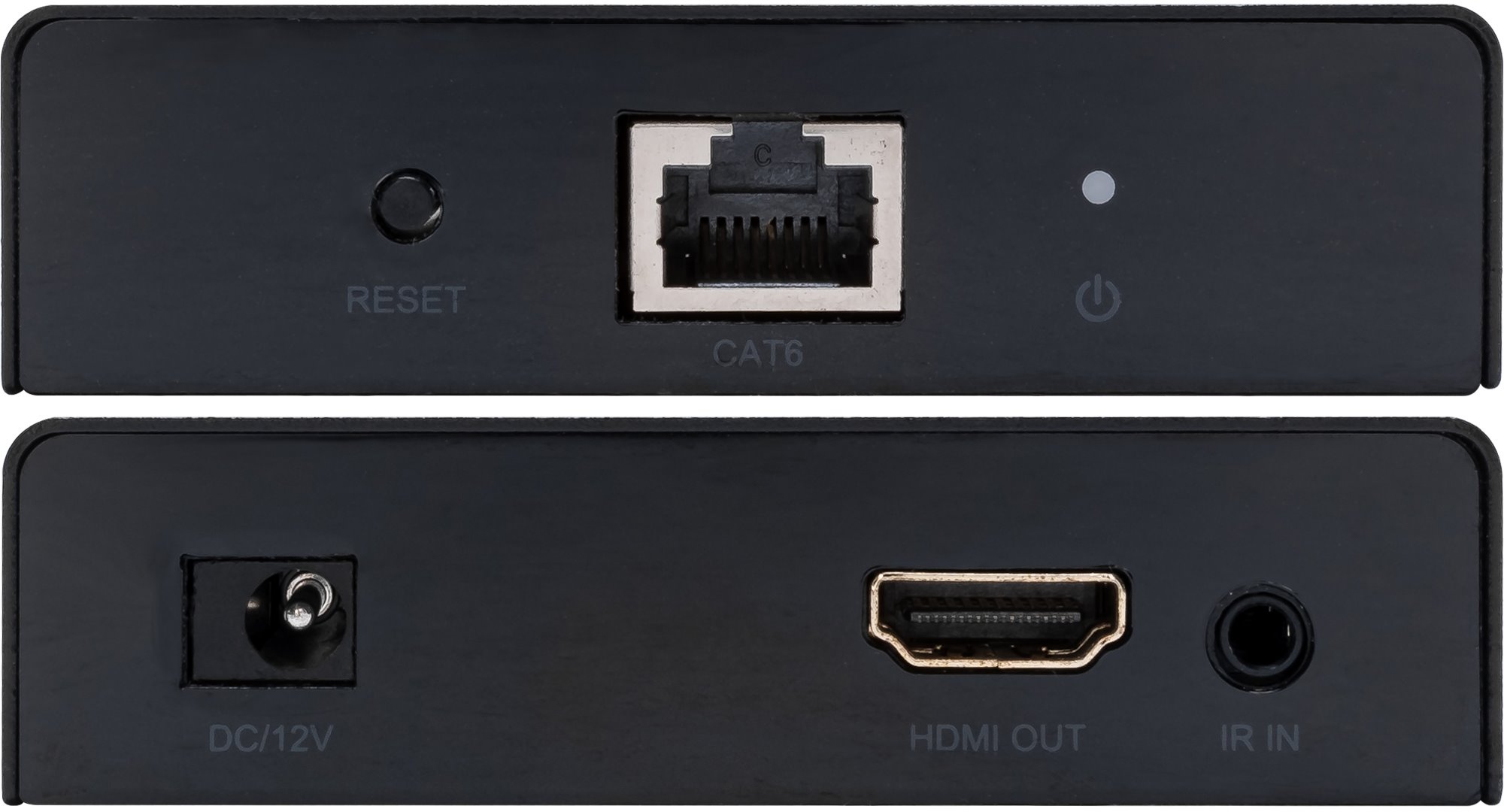

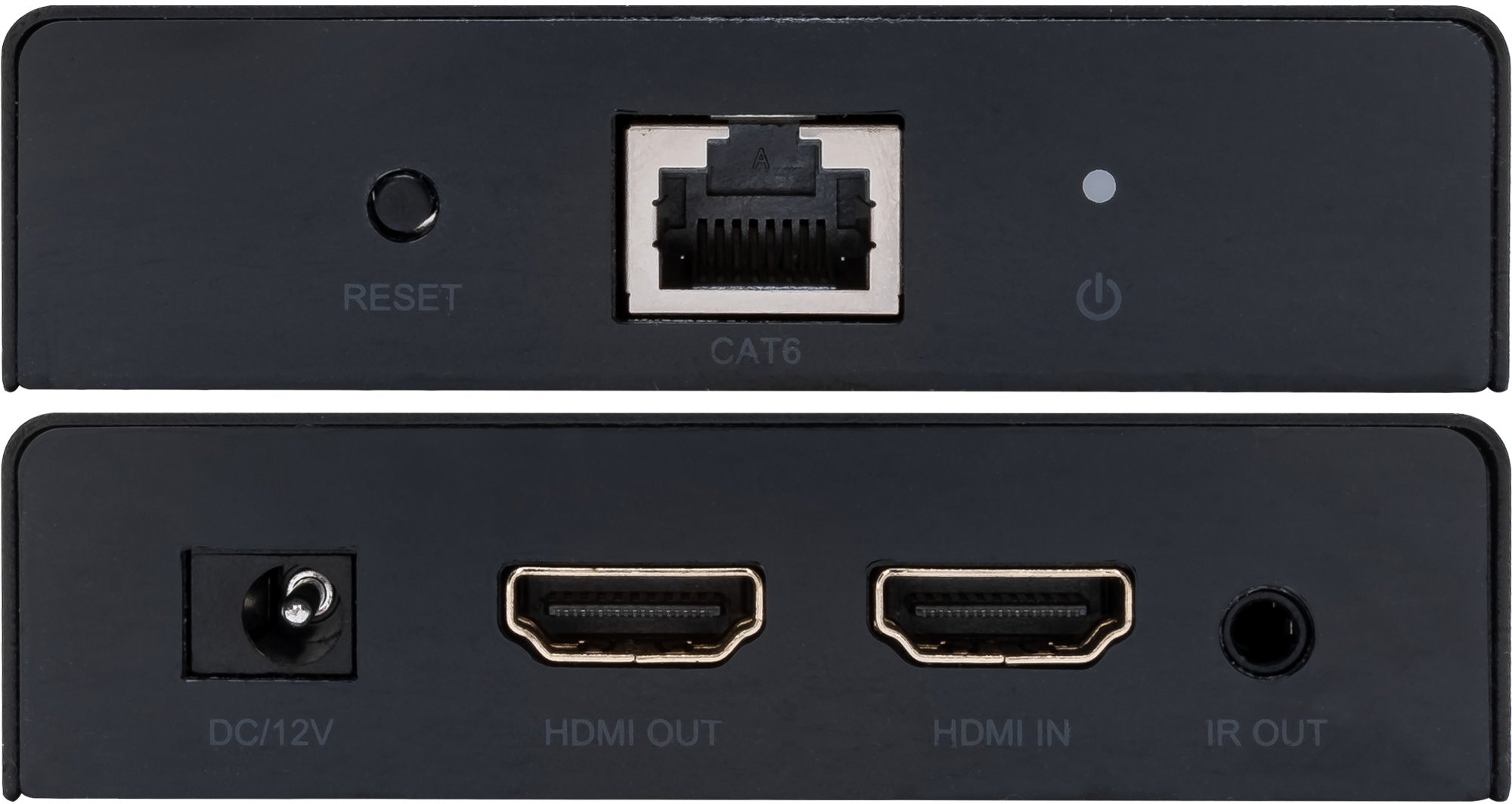

  • Input Port: HDMI x 1 / RJ45 x 1 / 3.5MM x 1
  • Output Port: HDMI x 1 / Loop Out x 1 / RJ45 x 1 / 3.5MM x1
  • Transmission Distance: 4K@60Hz 4:4:4 up to 230 Feet (70m)
  • Vertical Frequency Range: 50/60Hz
  • IR Frequency Range: 20-60KHz
  • Interlaced Resolutions (50 & 60Hz): 480i, 576i, 1080i
  • Progressive Resolutions (50 & 60Hz): 480p, 576p, 720p, 1080p, 4K@60Hz
  • Operating Temperature: 32°F to 122°F
  • Storage Humidity: 5% to 90% RH Non-Condensation
  • Power Supply: DC 12V
  • Power Consumption (Max): TX: 1.3W / RX: 1.6W
  • Power Supply and Extender Certifications: FCC / CE / RoHS
  • Dimensions (LxWxH): 3.97 x 3.47 x 0.92"
  • Net Weight: 6.9oz (196g)
