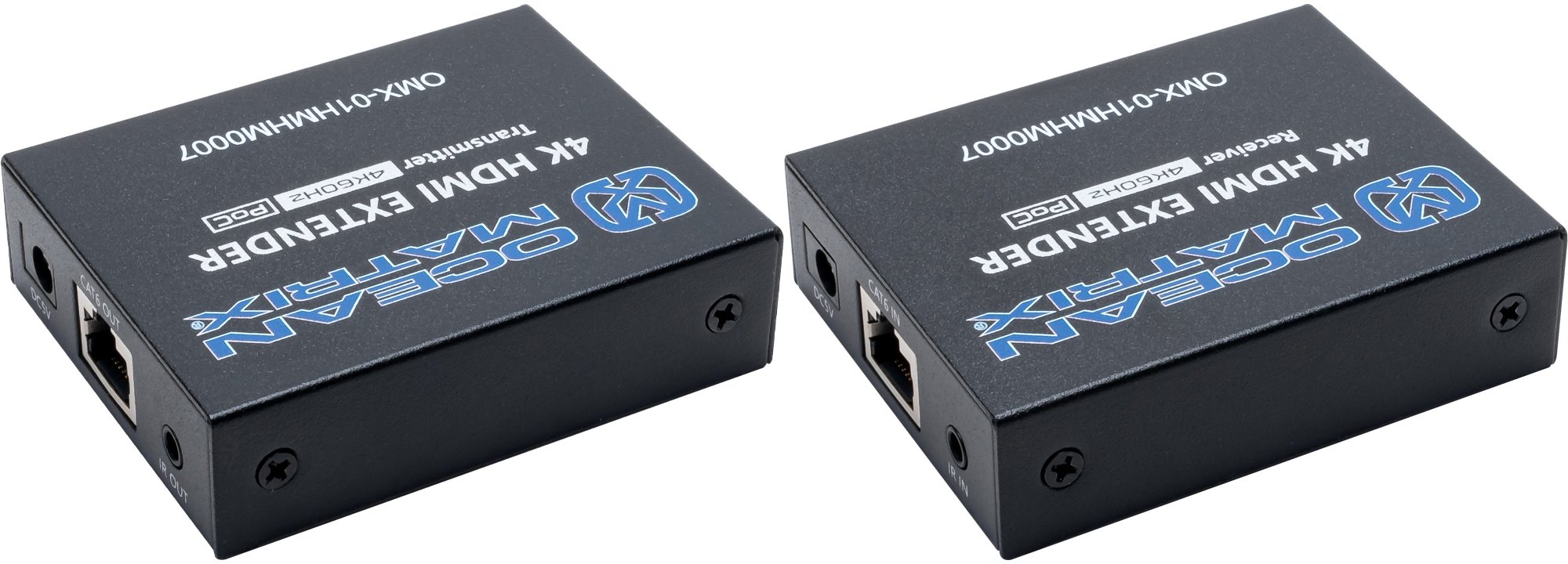

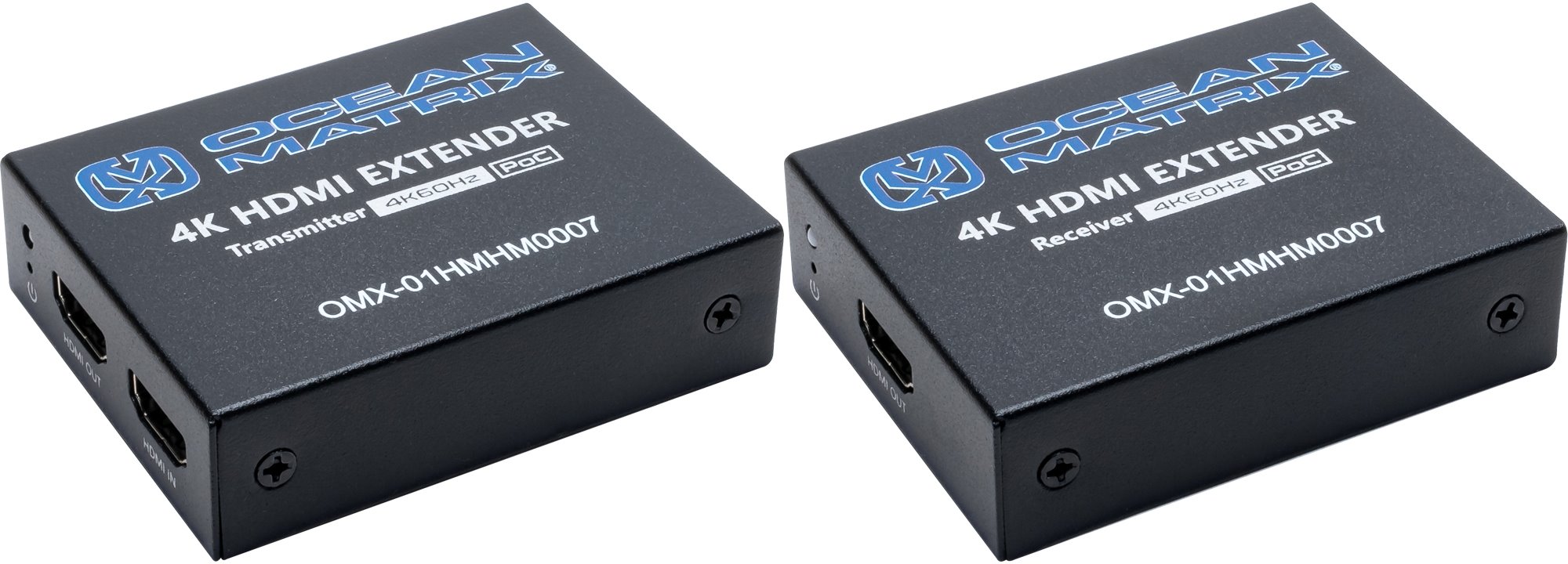

Ocean Matrix OMX-01HMHM0007 4K/60Hz 4:4:4 HDR HDMI PoC Extender up to 164 Feet over Cat6

OMX-01HMHM0007 1.jpg
OMX-01HMHM0007 2.jpg
OMX-01HMHM0007 3.jpg
OMX-01HMHM0007 4.jpg
OMX-01HMHM0007 5.jpg
Part Number: OMX-01HMHM0007  |  $104.95

The Ocean Matrix OMX-01HMHM0007 is a 4K/60Hz 4:4:4 HDR HDMI extender that extends 4K signal up to 50m and 1080p up to 70m over CAT6/6A/7 cable. With zero-latency transmission, EDID passthrough, auto-downscaling, and an HDMI loop-out function, the OMX-01HMHM0007 is the ideal extender for monitoring systems, education, conference rooms and home theaters.

Features:
  • Zero latency transmission
  • Extend 4K@60Hz HDMI signals up to 50m over CAT6/6A/7 cable
  • Supports HDR10
  • PoC functionality
  • EDID passthrough and auto downscaling
  • HDMI loop out
  • IR passthrough
  • Lightning protection, surge protection, ESD protection

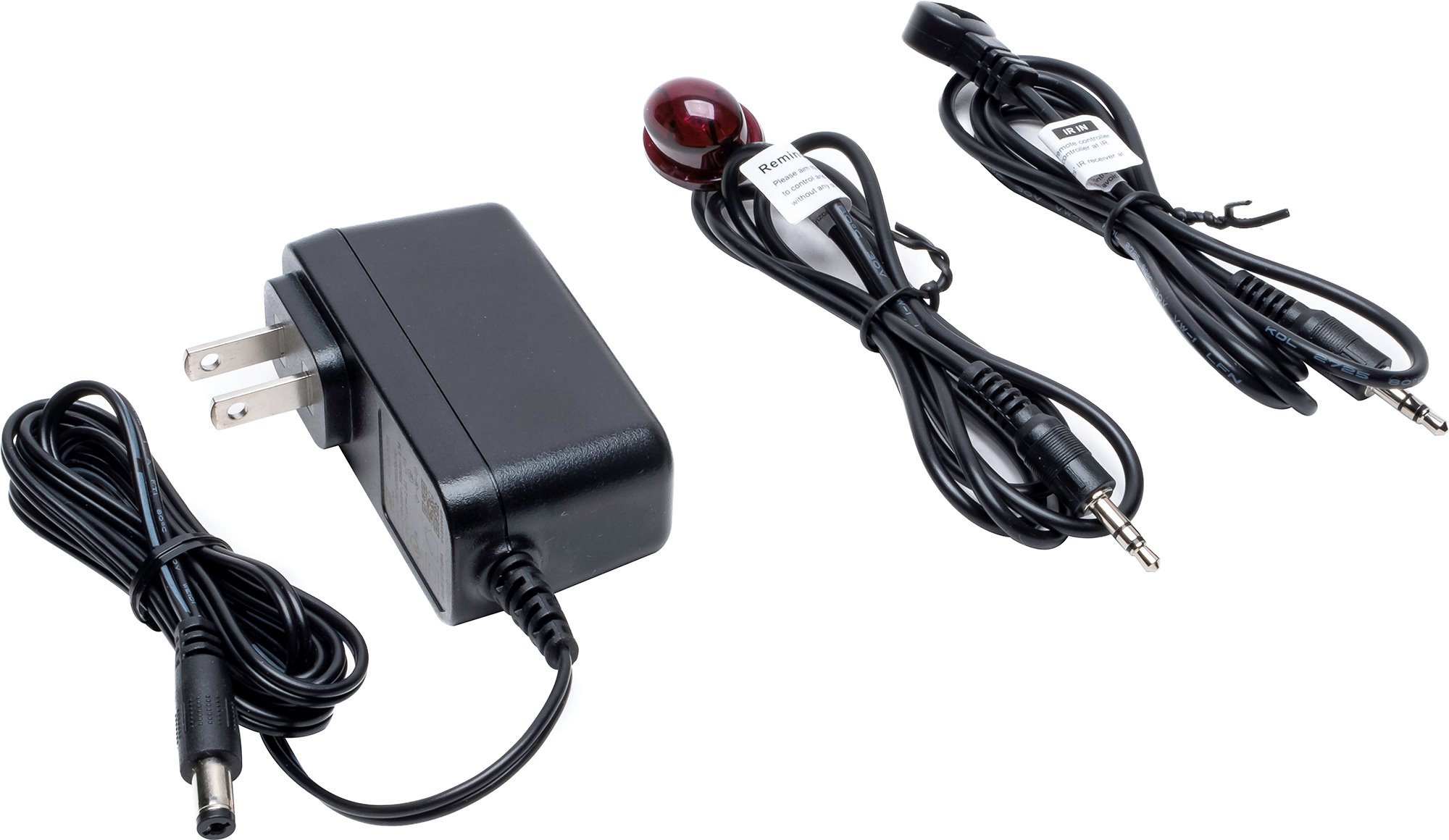

Item Includes:
  • OMX-01HMHM0007 Extender Set (1 x Transmitter / 1 x Receiver)
  • 1 x DC to USB Power Cable
  • 1 x IR Blaster Extension Cable
  • 1 x IR Receiver Extension Cable
Warranty:
  • 1 Year
Specifications
  • Maximum Transfer Rate: 18Gbps
  • Maximum Transmission Bandwidth: 600MHz
  • Compatibility: HDMI 2.0 (deep color, 4K, HDR, YUV4:4:4), HDCP 2.2, HDCP 1.4
  • Supported Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz ,720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080, 1920x1440, 1920x1080, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
  • Transmission Distance: 4K - 50m / 1080p - 70m
  • Audio Formats: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
  • IR Interface: TX: 1x3.5mm IR OUT Female / RX: 1x3.5mm IR IN Female
  • Power Supply: DC5V/500mA
  • Power Consumption: TX < 2.3W / RX < 1.5W
  • Working Temperature: -20°F - 140°F (-20°C - 60°C)
  • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
  • Dimensions (LxWxH): TX & RX: 3 x 2.3 x 0.83in
  • Weight: TX 0.2813lbs / RX 0.2813lbs
