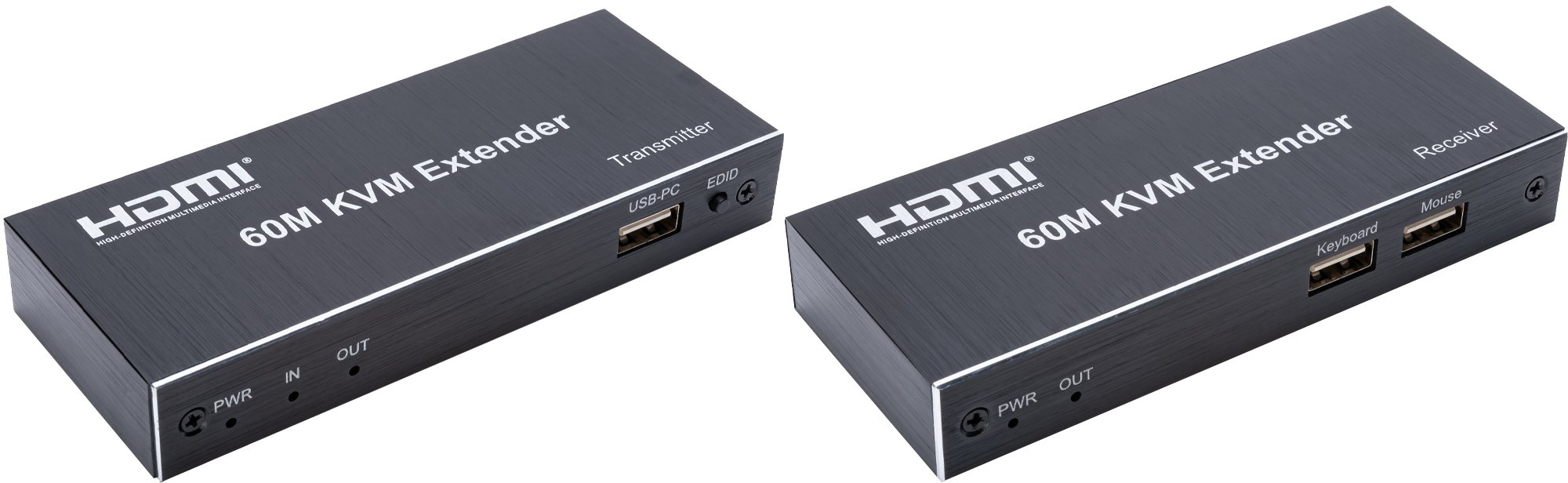

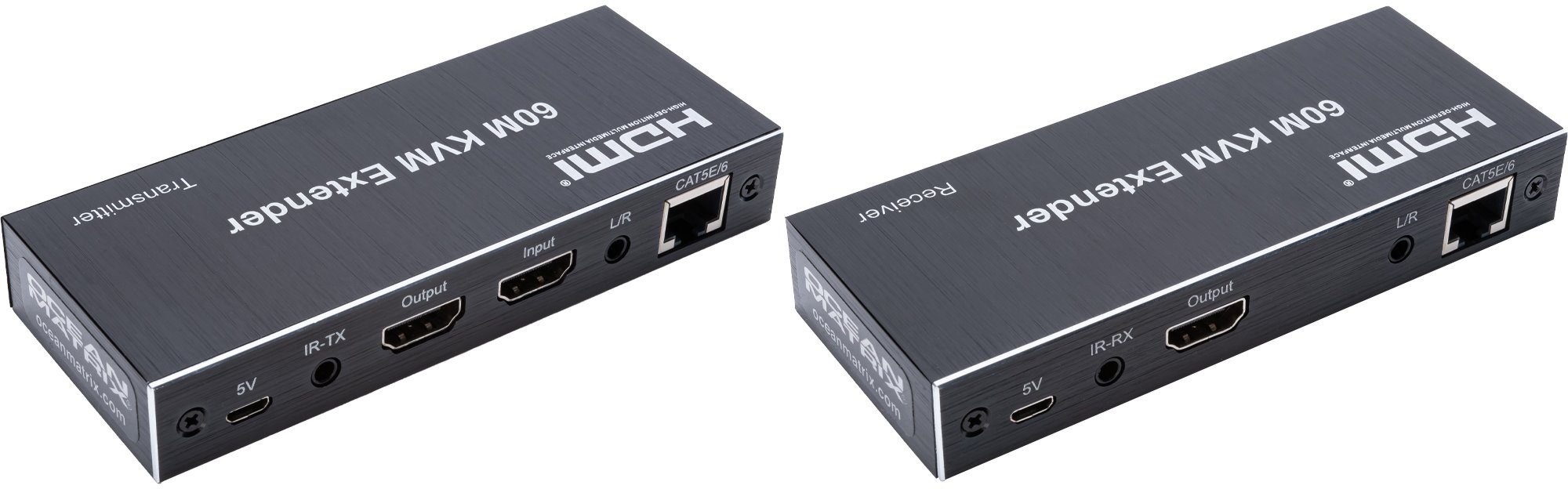

Ocean Matrix OMX-01KVKV0002 1080p 60Hz HDMI KVM Extender up to 60 Meters

OMX-01KVKV0002 1.jpg
OMX-01KVKV0002 2.jpg
OMX-01KVKV0002 3.jpg
OMX-01KVKV0002 4.jpg
OMX-01KVKV0002 5.jpg
OMX-01KVKV0002 1.jpg
Part Number: OMX-01KVKV0002  |  $49.99

The Ocean Matrix OMX-01KVKV0002 extends 1080p 60Hz HDMI & KVM signals up to 60 meters / 197 feet. With local HDMI loop-out, IR control, and 3.5mm audio support, the OMX-01KVKV0002 is the ideal unit for HDMI KVM extension.


Supports Resolutions up to 1080p/60Hz

Local HDMI Loop-Out Functionality

Supports transmission up to 60 meters/197 feet

Low Power Consumption & Low Operating Temperature

Both the TX and RX Units Support 3.5mm Stereo Audio

IR Control Functionality

Supports Mouse and Keyboard Extension

  • 1 Year
  • Transmission Distance: Up to 60m/197ft via CAT5e/6
  • HDMI Input: 1080p/1080i/720p/576p/576i/480p/480i
  • HDMI Output: 1080p/1080i/720p/576p/576i/480p/480i
  • Max Bandwidth: 150MHz
  • Max Baud Rate: 4.5Gbps
  • Input Video Signal: 0.5~1.5Volts p-p
  • Output DDC Signal: 5 Volts p-p (TTL)
  • Input HDMI Cable Distance: ≤ 10m AWG26 HDMI Standard Cable
  • Output HDMI Cable Distance: ≤ 15m AWG26 HDMI Standard Cable
  • TX Max Working Current: 450mA
  • RX Max Working Current: 350mA
  • Power Adapter Format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
  • Operating Temperature range: 5 to 113°F (-15 to +45°C)
  • Operating Humidity Range: 5 to 90% RH (No Condensation)
  • TX Weight: 108g
  • RX Weight: 108g
  • Dimensions (LxWxH): 4.78 x 1.97 x 0.74" (122 x 50 x 19 mm)
  • Weight: 0.24 lbs / 3.8 oz / 107 grams
