Ocean Matrix OMX-01UBUB0001 USB 2.0 Extender Over CAT5e/6/6A up to 150m

OMX-01UBUB0001 1.jpg
OMX-01UBUB0001 2.jpg
OMX-01UBUB0001 3.jpg
OMX-01UBUB0001 4.jpg
OMX-01UBUB0001 5.jpg
Part Number: OMX-01UBUB0001  |  $164.95

The Ocean Matrix OMX-01UBUB0001 is a USB 2.0 extender that transmits signals up to 150m over CAT5e/6/6A. The OMX-01UBUB0001 features 4 USB 2.0 outputs that support a wide range of devices including printers, cameras, keyboards, mice, and more. The transmitter is powered by the source device, allowing for more streamlined setups.

Features:

  • Supports USB 2.0 high-speed, compatible with USB 1.1 full speed, USB1.0 low-speed

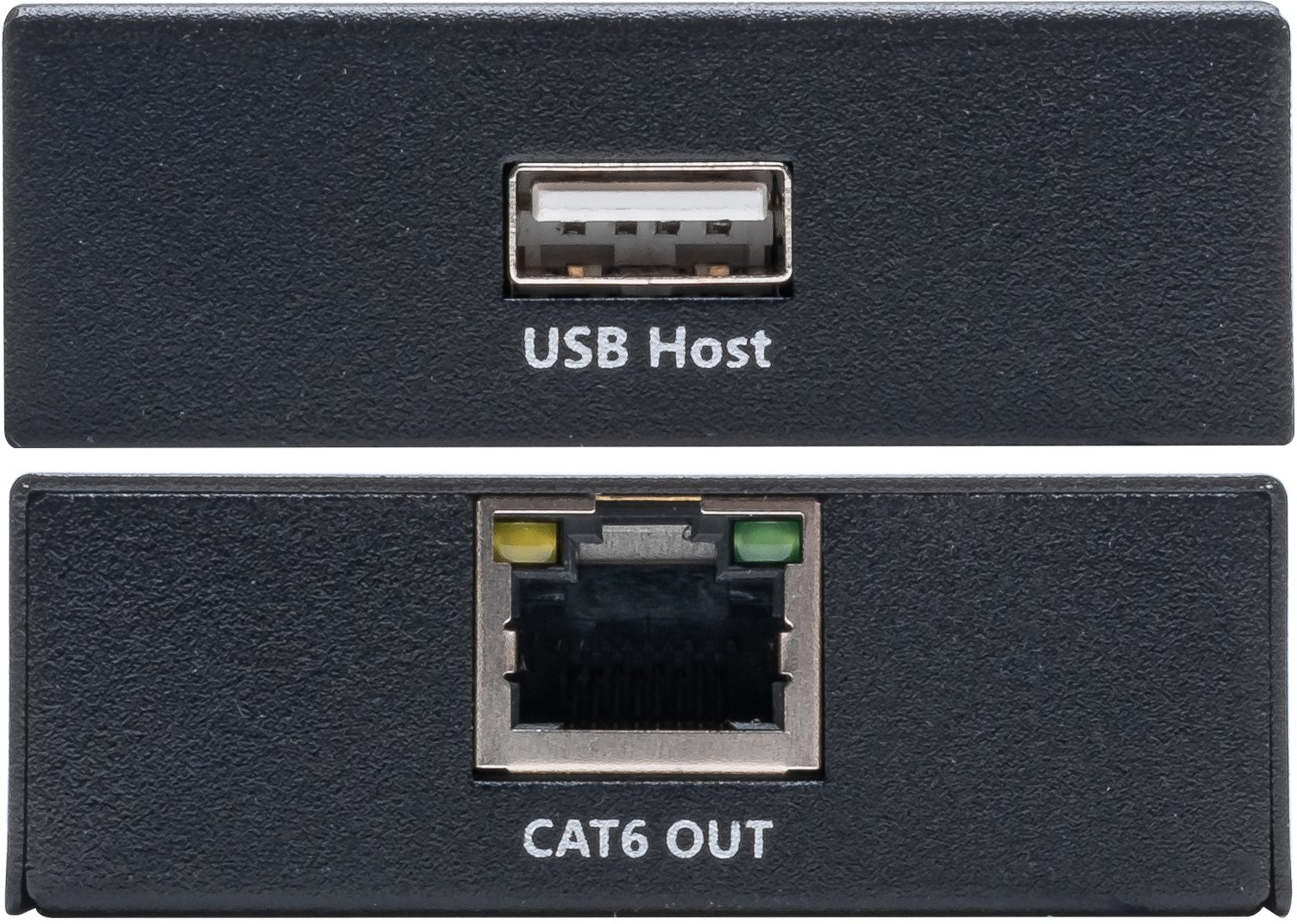

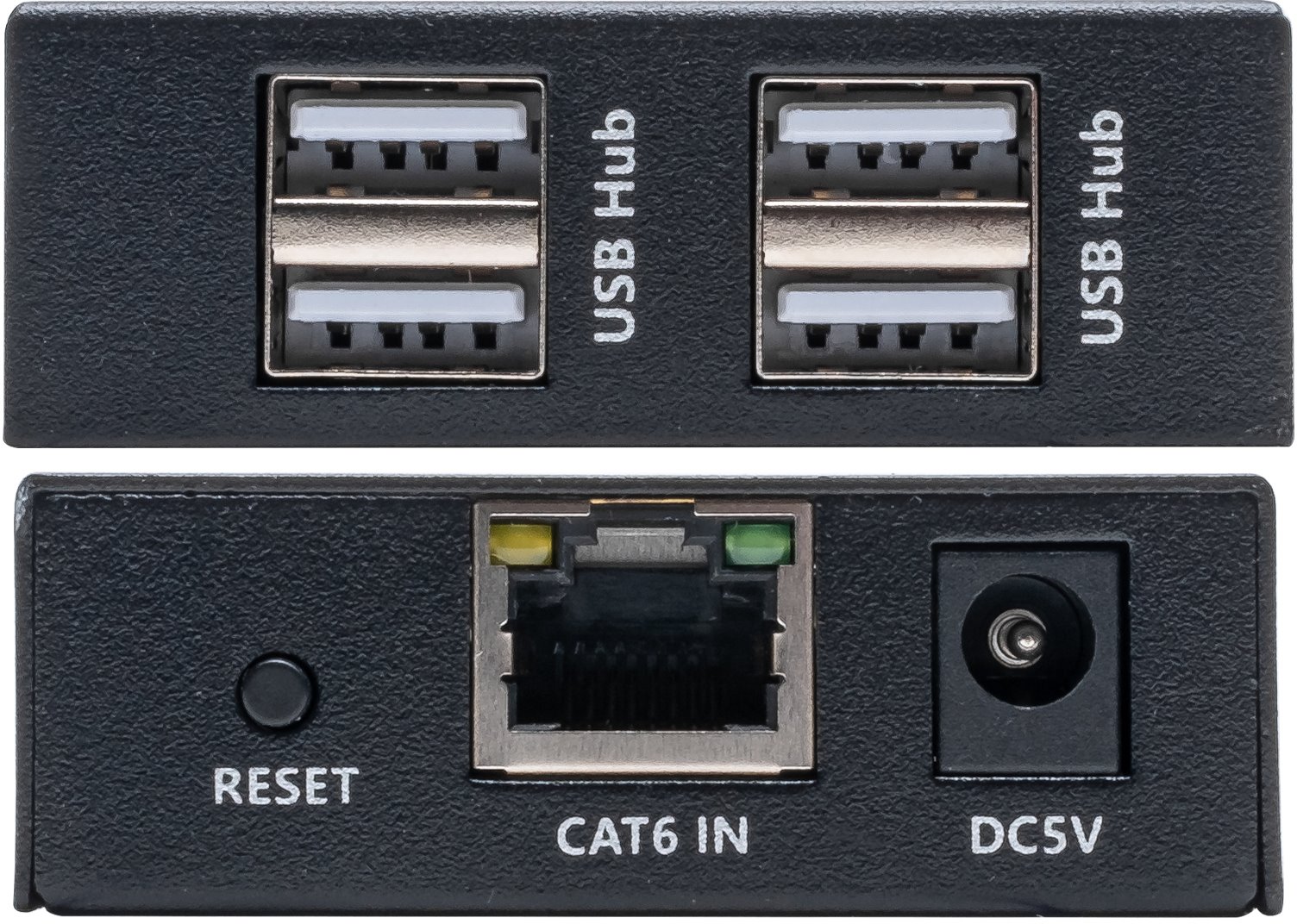

  • Supports 4 USB 2.0 inputs at the receiver "Hub" and 1 USB 2.0 output at the transmitter "Host"
  • Compatible with CAT5e/6/7 network cables- Cat5e transmission distance can reach 100M, and Cat6/7 transmission distance can reach 150M
  • Supports USB hub connection
  • The Transmitter is powered by the source device- no additional power supply is required.
    • *Note: some high-powered USB devices may require their own power supply.*
  • Lightning protection, surge protection, and ESD protection

Item Includes:

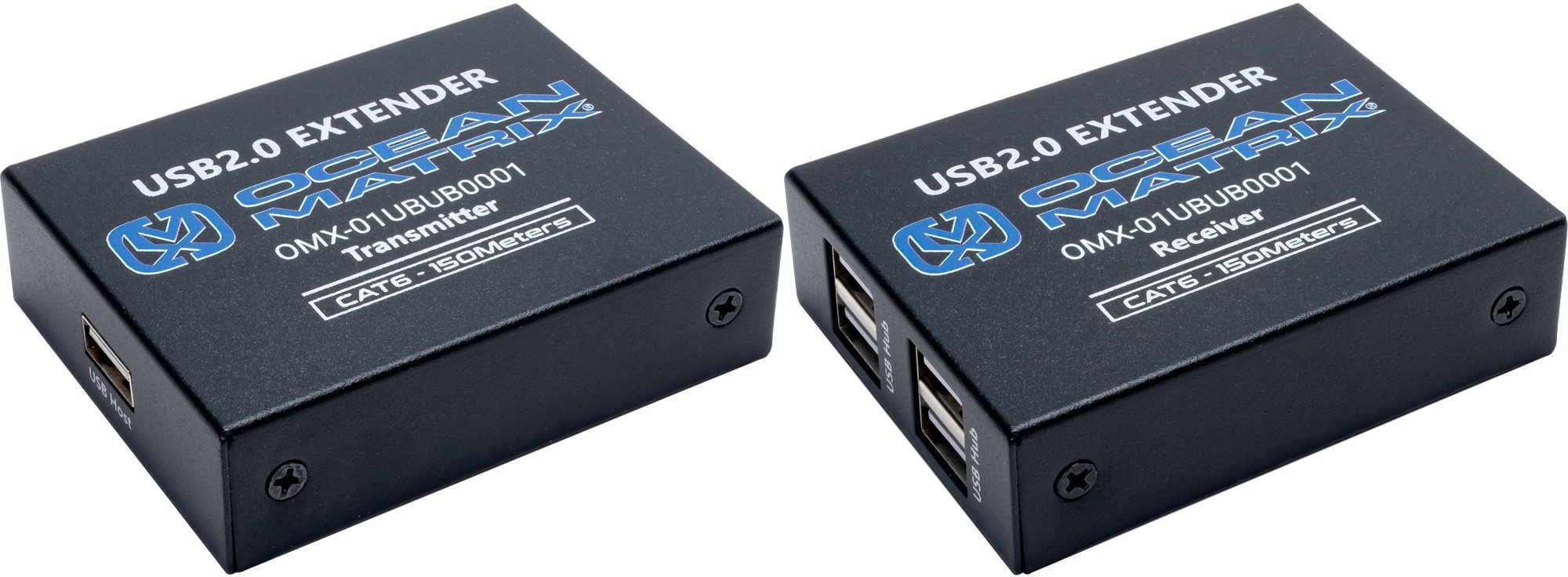

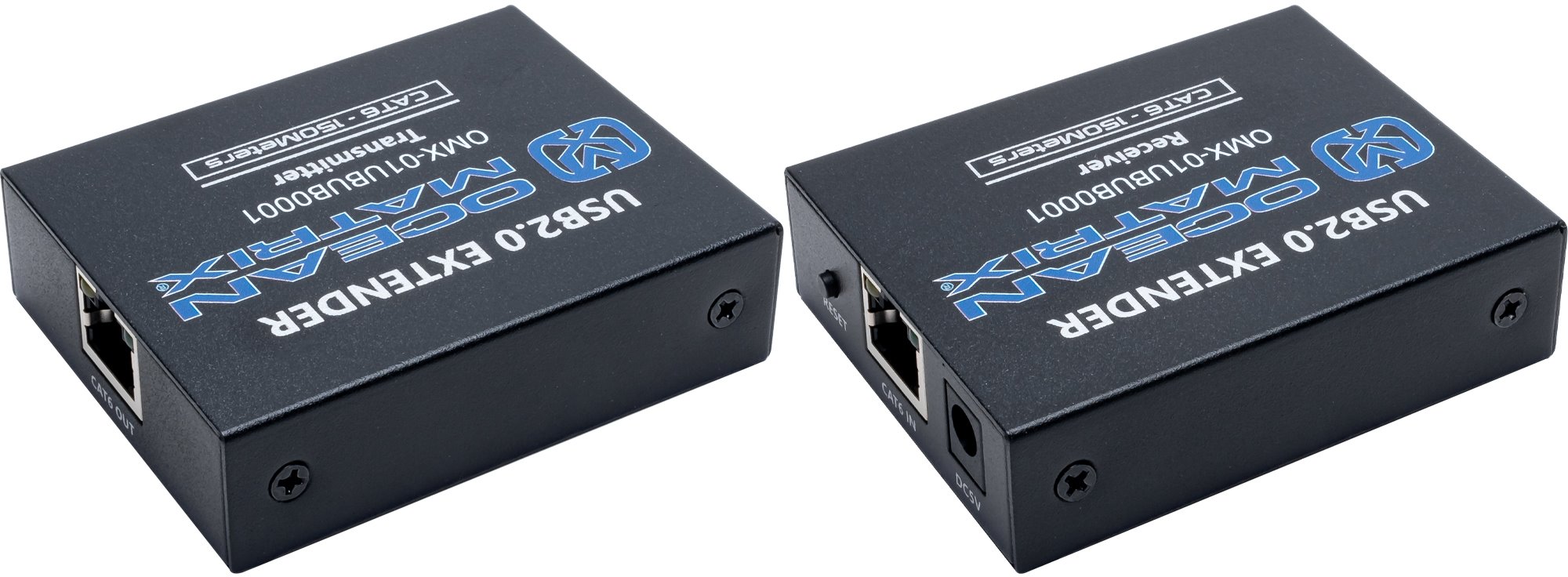

  • OMX-01UBUB0001 USB 2.0 Extender Set (1 x Transmitter / 1 x Receiver)

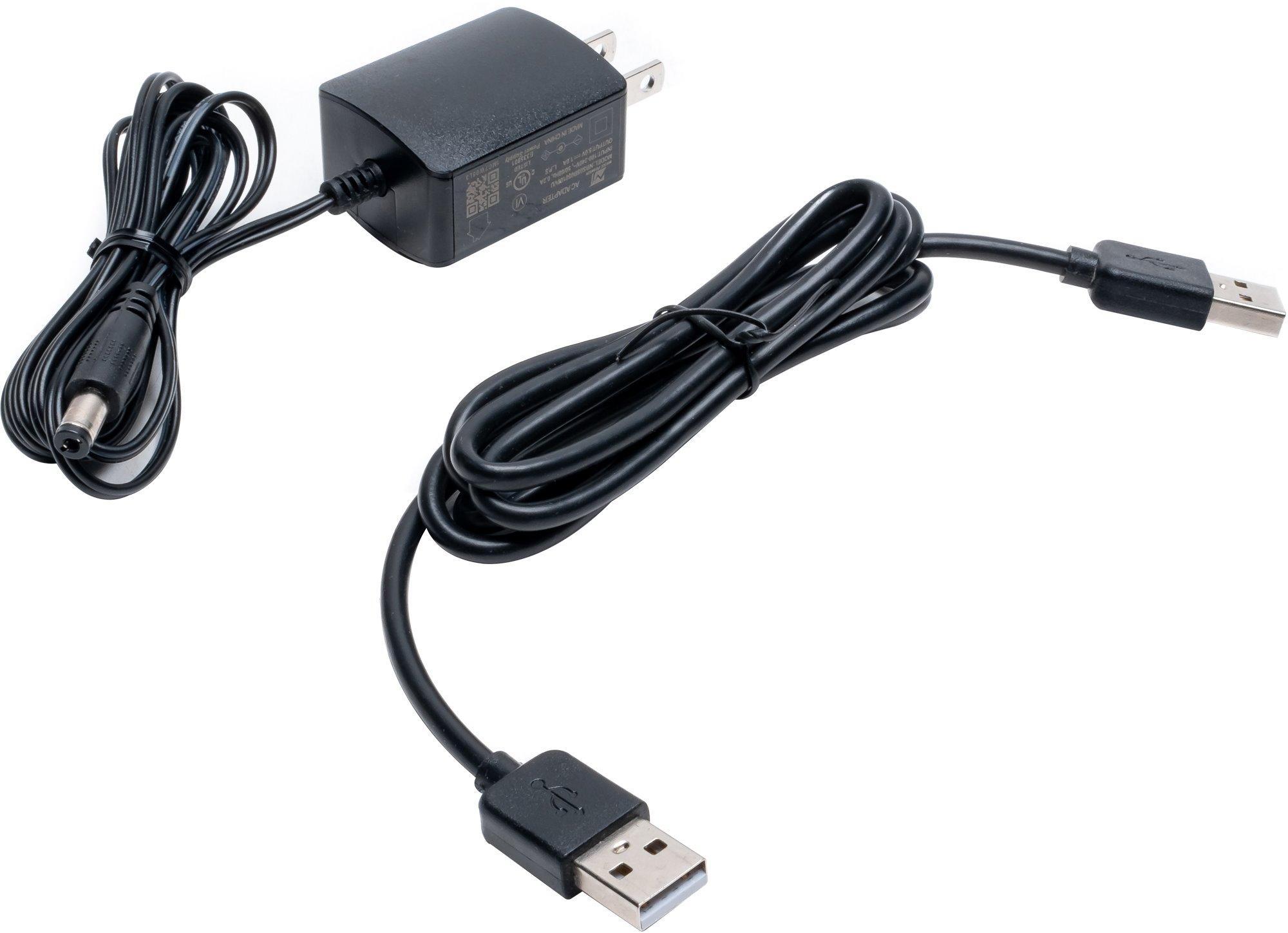

  • 1 x DC5V/1A
  • 1 x USB Cable
Specifications
  • Compatibility: USB 2.0, USB 1.1, USB 1.0
  • Supports CAT5e / CAT6 / CAT6A / CAT7 / IEEE-568B Standard
  • Transmission Distance: Up to 150m via CAT6/6A/7; Up to 100m via CAT5e
  • Power Supply: TX: Powered by Source Device | RX: DC5V/1A
  • Power Consumption: TX: ≤ 0.69W | RX: ≤ 1.23W
  • Operating Temperature: -4 - 140°F (-20 - 60°C)
  • Storage Temperature: -22 - 158°F (-30 - 70°C)
  • Dimensions (LxWxH): Both TX & RX: 3.035 x 2.37 x 0.81
  • Weight: TX: 0.275 lbs (125g) RX: 0.288 lbs (130g)
