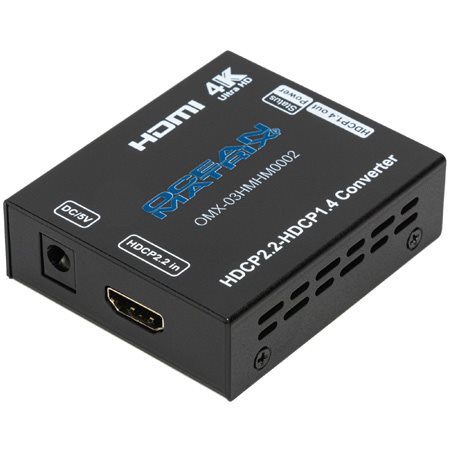

Ocean Matrix OMX-03HMHM0002 4K HDCP 2.2 to HDCP 1.4 Converter

Part Number: OMX-03HMHM0002  |  $39.95

The Ocean Matrix OMX-03HMHM0002 converter changes 4K HDCP 2.2 encrypted digital signals to HDCP 1.4 to make it possible to display new encoded content on older displays and equipment that do not support HDCP 2.2.

Features:
  • Makes HDCP 1.4 Displays Compatible with New HDCP 2.2 Sources
  • High Definition Resolution to 4K2K@60HZ
  • Deep Color up to 36bit
  • Dolby, DTS, LPCM Audio Formats
  • HDMI 1.4B Compliant
  • Supports 3D Mode
  • CE Certified
Item Includes:
  • 5VDC/1A Power Supply
Warranty:
  • 1 Year
Specifications
  • HDMI input HDCP2.2 / HDMI output HDCP1.4
  • MAX Supported Video Format: 4Kx2K@60HZ, YUV 4:2:0.
  • Video Formats: DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K, 3D
  • Video Color Format: xv-YCC/deep color 36bit
  • Audio Format: DTS-HD Master Audio, Dolby True-HD, LPCM
  • Power Consumption: 1.5W
  • Dimension: (LxWxH): 2.76 x 2.37 x 0.83 in
  • Weight: 4.3 oz
