Ocean Matrix OMX-04SISI0001 1x8 12G/6G/3G/HD/SD-SDI Distribution Amplifier w/ Re-Clocking

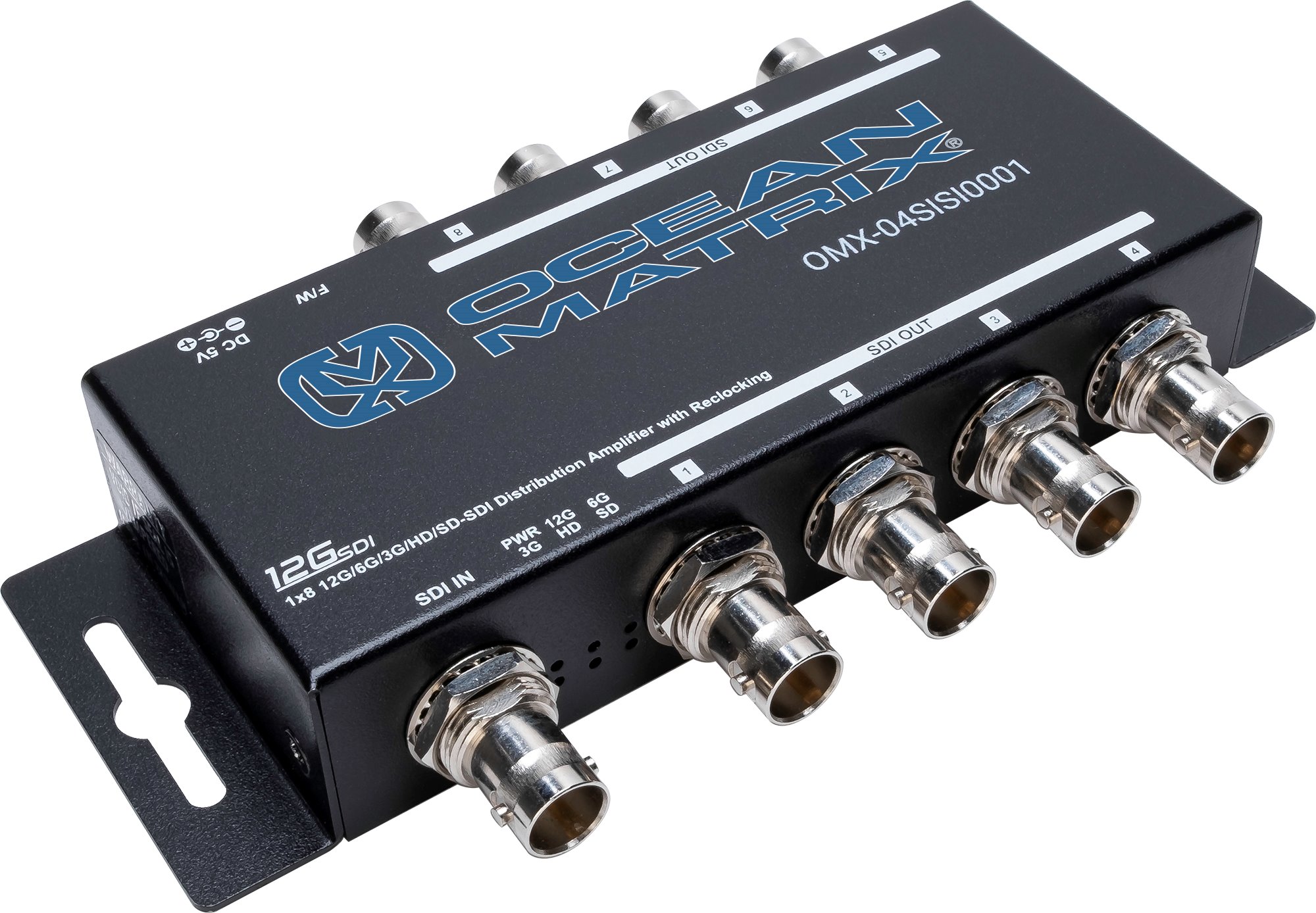

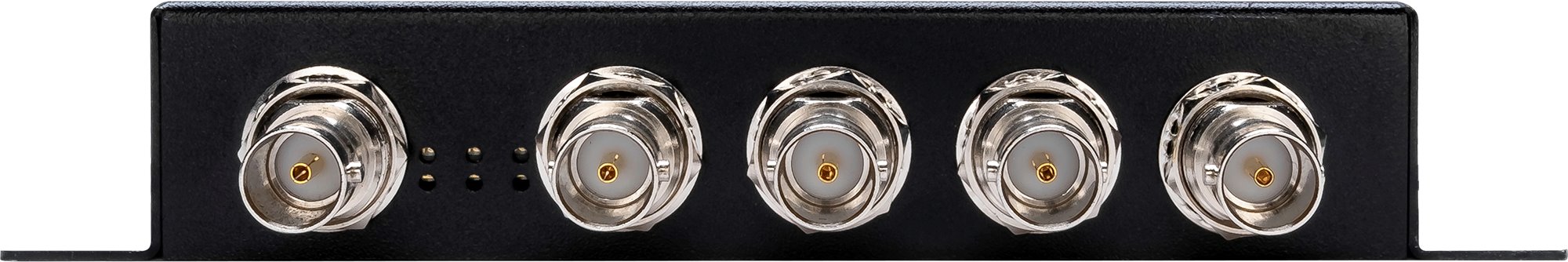

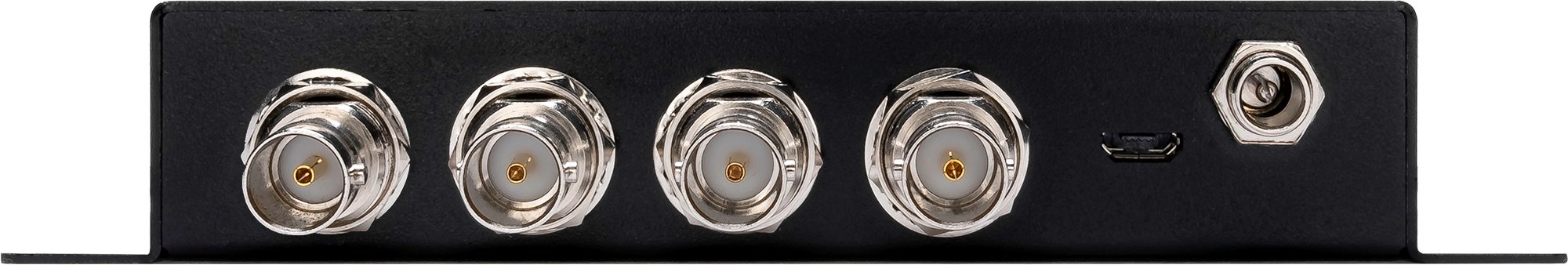

The Ocean Matrix OMX-04SISI0001 is a 1x8 12G/6G/3G/HD/SD-SDI Distribution Amplifier with built-in re-clocking. The unit receives one SDI input, duplicates it, and distributes it to up to eight SDI outputs for real-time multi-viewing. The OMX-04SISI0001 also features cable equalization, signal retiming, LED indication of signal lock and video rate, as well as the passing of ancillary data and embedded audio.

Part Number: OMX-04SISI0001

Features:

12G/6G/3G/HD/SD-SDI Distribution
Eight Separately Buffered and Re-Clocked Outputs
Cable Equalization and Signal Retiming
LED Indication of Signal Lock and Video Rate
Passes Ancillary Data and Embedded Audio
Provides Automatic Input Cable Equalization up to 180m (594ft) @3G, 100m (330ft) @6G and 70m (230ft) @12G
Re-Clocks SDI Signals for Cascading and Longer Transmission

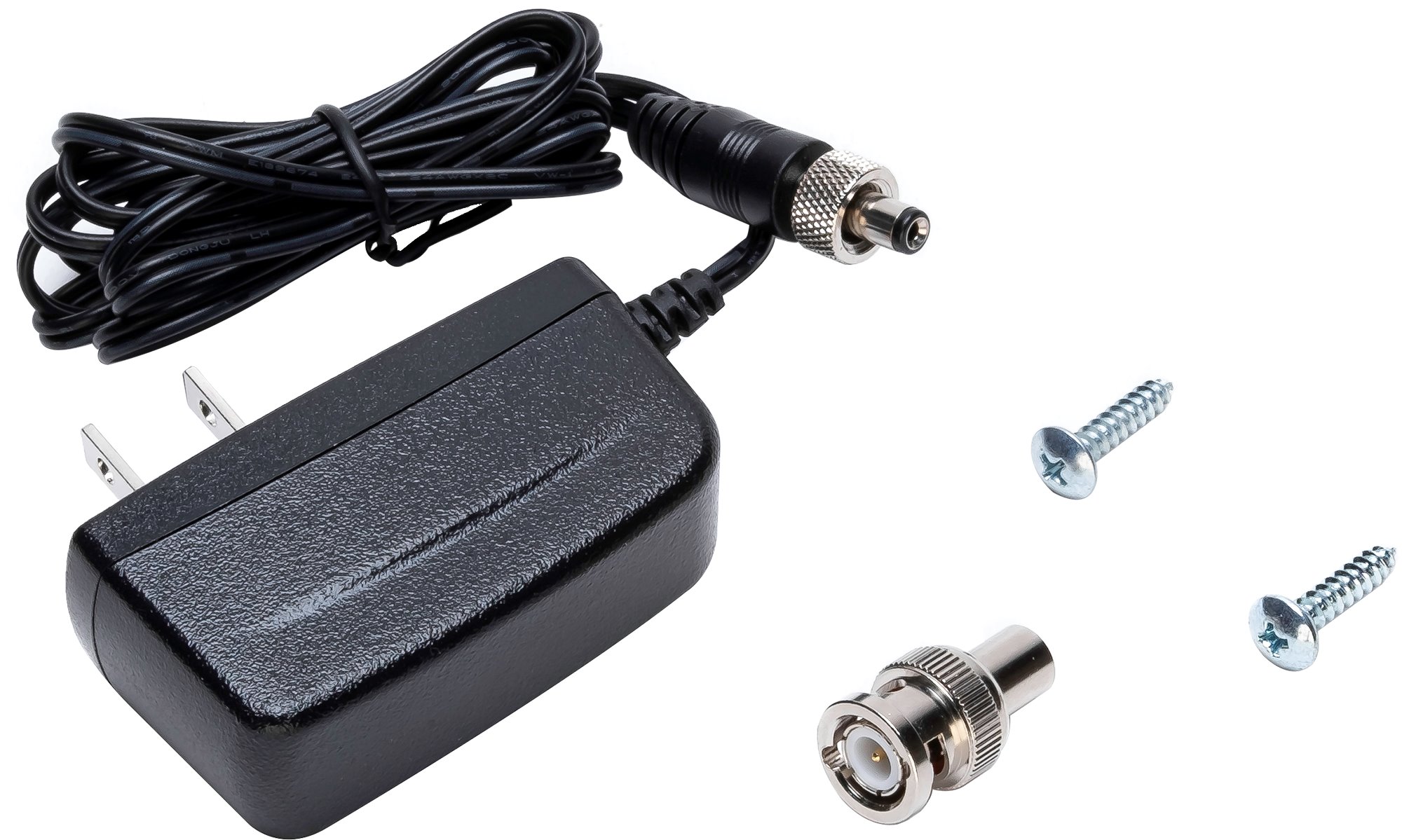

Locking Power Supply

HDMI Compliance: 2.0
SDI Formats: SMPTE 2082; 11.88 Gbps/12G-SDI：2160p at 50/59.95/60 Hz | SMPTE 2081; 5.94 Gbps/6G-SDI：2160p at 25/29.97/30 Hz | SMPTE 424M; 2.97 Gbps/3G-SDI 1080p at 50/59.94/60 Hz (4:2:2) | SMPTE 274M; 1.485 Gbps/HD-SDI：1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz | SMPTE 296M; 1.485 Gbps/HD-SDI：720p at 23.98/24/25/29.97/30/50/59.94/60 Hz | SMPTE 292M; 1.485 Gbps/HD-SDI：1080i at 30 Hz, 720p at 60 Hz | SMPTE 259M; 270 Mbps/SD-SDI：NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz
HDMI Formats: 4K UHD Video Standards/2160p at 23.98/24/25/29.97/30/50/59.94/60 Hz | UHD Video Standards/1080p at 50/59.94/60 Hz (4:2:2) | HD Video Standards/720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz | SD Video Standards/NTSC at 59.94 Hz, PAL at 50 Hz
SDI Bitrate: 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps
Video Sampling: 4:2:2
Audio Sampling: 48 kHz & 24 bit
Auto Switching: Auto switching between SD/HD/3G/6G/12G-SDI
Cable Reach: [12G-SDI] up to 60m (200ft) | [6G-SDI] up to 75m (250) | [3G-SDI] up to 90m (300ft) | [HD-SDI] up to 150m (500ft) | [SD-SDI] up to 300m (1000ft)
Eye-patten Measurements: Amplitude: within 800mV | Raise & Fall Time: <45ps> | Timing jitter：<8> | Alignment jitter：<0.3 (100KHz to 1188MHz)
ESD Protection: 8 KV—Contact Discharge | 15KV—Air Discharge
Power Supply: 5V DV, 1A
Power Consumption: 3.5W (Max)
Operating Humidity: 20-90% RH (no condensation)
Operating Temperature: 32°F-104°F (0°C-40°C)
Weight: 0.4lbs (198g)
Certifications: CE, FCC, RoHS
