Ocean Matrix OMX-06HMHM0003 8K HDMI 2.1 and HDCP 2.3 Compliant HDMI 2x1x2 Splitter/Switcher

The Ocean Matrix OMX-06HMHM0003 is a fully 8K capable 1x2 HDMI splitter that will allow its user to switch between 2 sources and simultaneously send the signal to two separate HDMI outputs. This unit supports video resolutions up to 8K@60Hz YCbCr 4:2:0 10-bit and supports LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio, DSD audio formats. The OMX-06HMHM0003 is a compact, durable, plug and play unit perfect for modern gaming setups, conference rooms, lecture halls, and other applications utilizing the latest resolutions!

Part Number: OMX-06HMHM0003 | $129.95

Features:

1x2 Splitter/Switch with Dual Input
HDMI 2.1 and HDCP 2.3 Compliant
Supports up to 40Gbps Video Bandwidth
Video Resolution up to 8k@60hz 4:2:0
HDR, HDR10, HDRO10+, Dolby Vision, ALLM/VRR Pass-Through
HDMI Audio Formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Built-In Cable Equalization
Compact Design for Easy and Flexible Installation

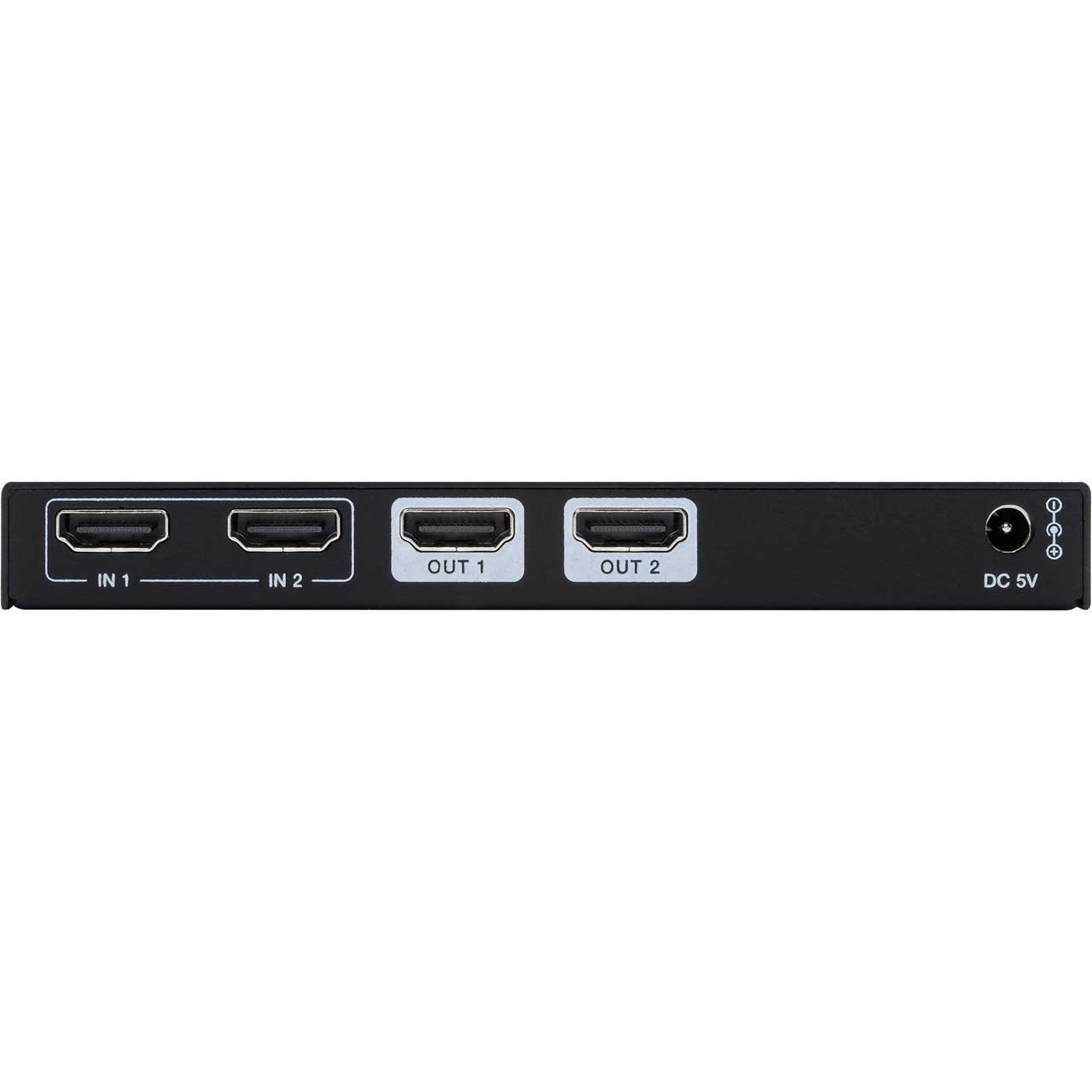

Inputs: 2 x HDMI Type A (19-pin female)
Outputs: 2 x HDMI Type A (19-pin female)
Video Bandwidth: Up to 40 Gbps
Video Resolution: Up to 8K@60Hz YCBCR 4:2:0 10bit, 8K@30 RGB/YCBCR 4:4:4 10bit or,4K@120 RGB/YCBCR 4:4:4 10bit
Color Space: RGB, YCbCr 4:4:4 / 4:2:2. YCbCr 4:2:0
HDMI Compliance: HDMI 2.1
HDCP Compliance: HDCP 2.3
Power Supply: Input: AC100-240V 50/60Hz, Output: DC 5V/1A (US/EU Standards, CE/FCC/UL Certified
Power Consumption: 2.25W (Max)
Operation Temperature: 0°C-40°C/32°F-104°F
Storage Temperature: -20°C-60°C/-4°F-140°F
Dimensions: 5.7in (W) x 2.7in (D) x 0.7in (H)
Weight: 9.2oz / 265g
