Ocean Matrix OMX-07HMHM0002 4K 60Hz HDMI 4x1 Switcher with USB Device/Hotkey Switching and Mic/Speaker Function

OMX-07HMHM0002 1.jpg
OMX-07HMHM0002 2.jpg
OMX-07HMHM0002 3.jpg
OMX-07HMHM0002 4.jpg
OMX-07HMHM0002 5.jpg
Part Number: OMX-07HMHM0002  |  $$249

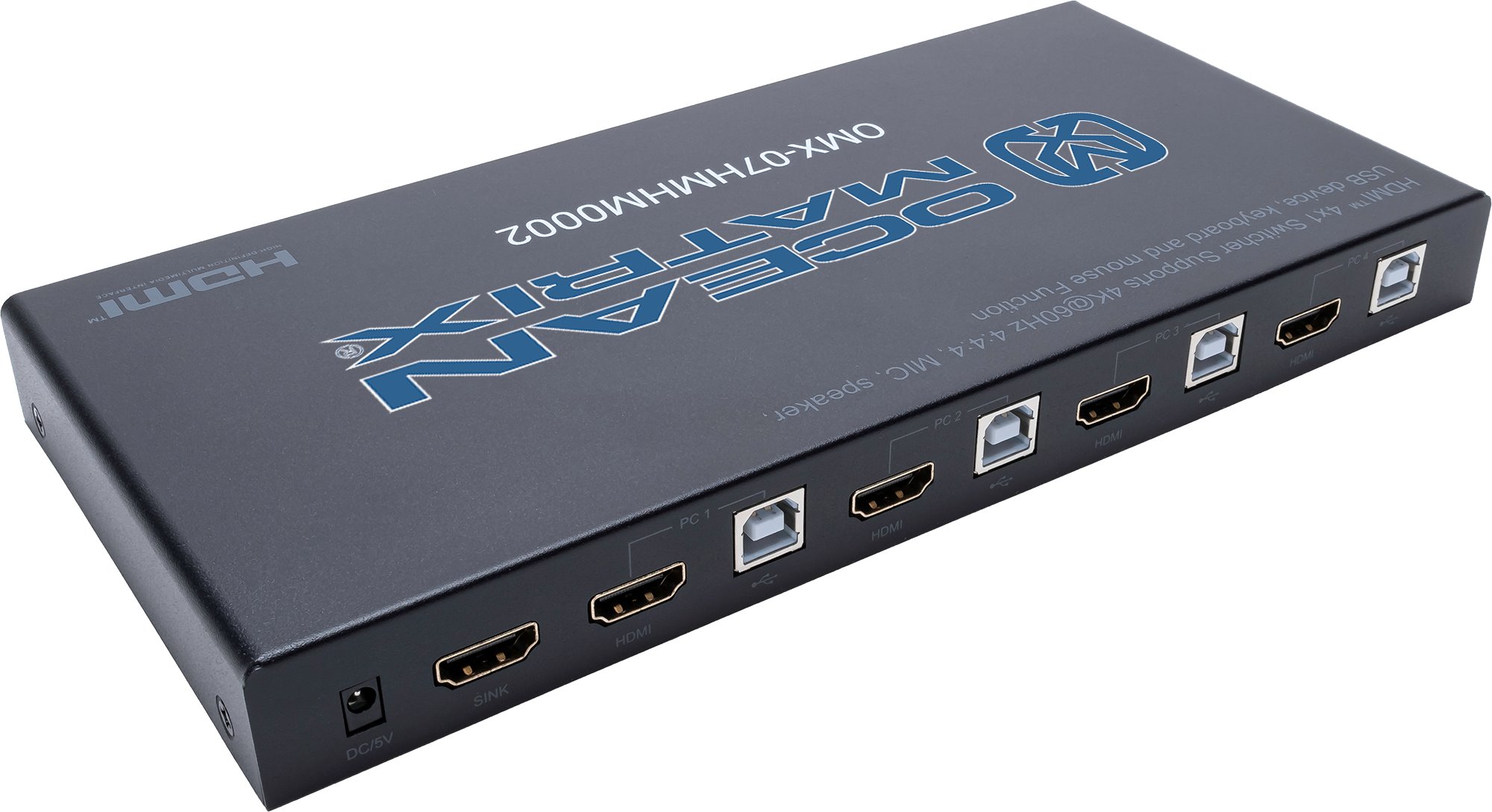

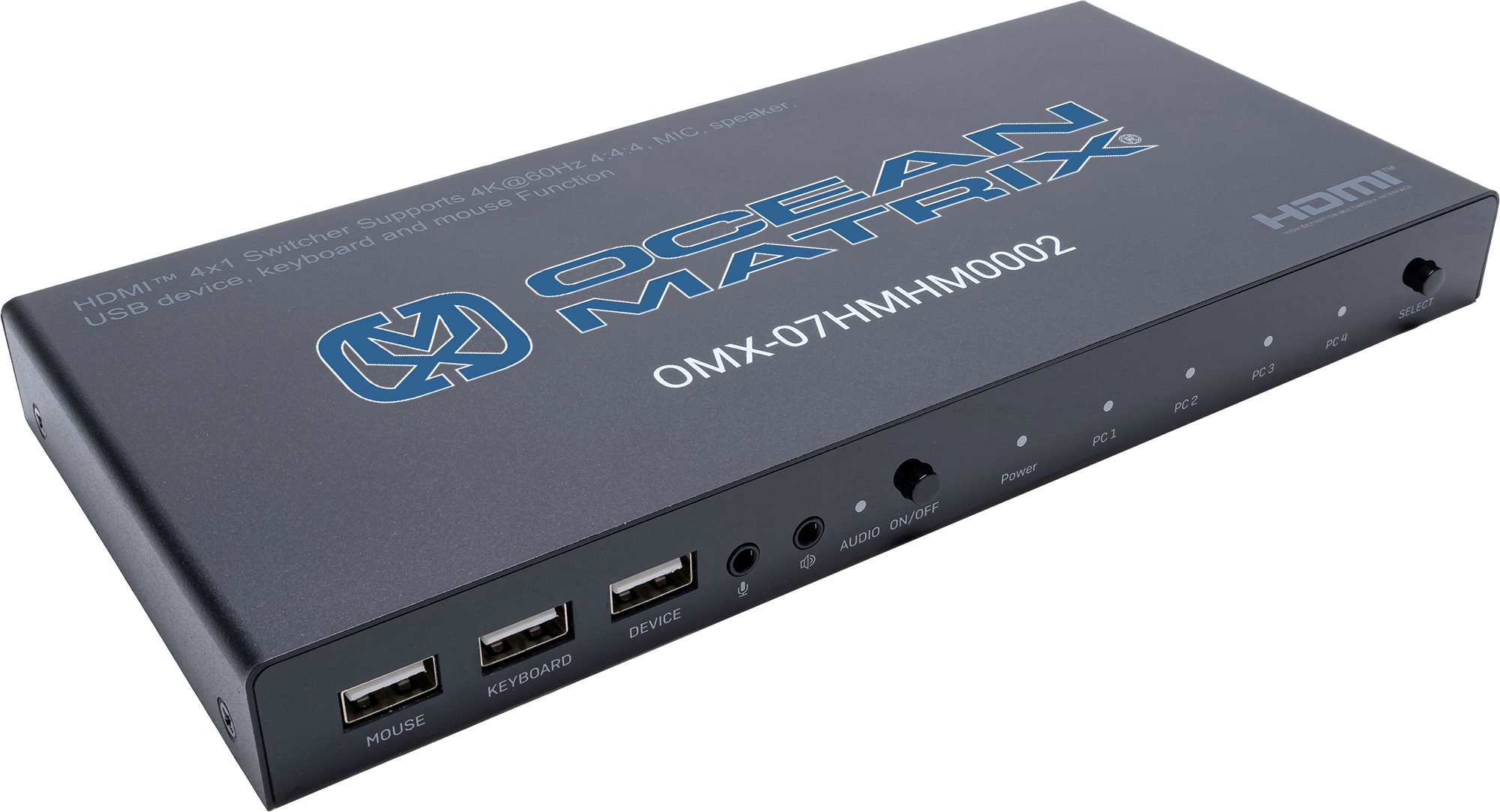

The Ocean Matrix OMX-07HMHM0002 is a 4x1 HDMI switcher that supports USB Device/Hotkey Switching and Mic/Speaker functionality. The switcher features four independent HDMI and USB inputs that allow you to connect to a PC while supporting 4k resolutions and 7.1 surround sound audio.


Features:

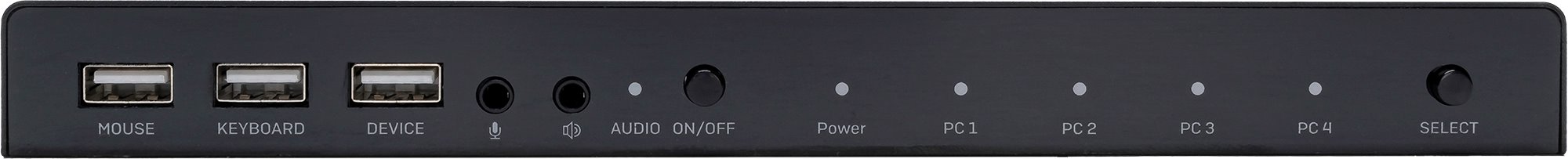

  • Three USB-A ports for Keyboard, Mouse, and other Devices
  • Front Panel Allows for Manual Switching or Hotkey Switching Via the Keyboard
  • Supports Resolutions up to 4K@60Hz YUV 4:4:4
  • Supports Full 3D Format, HDR Video and CEC
  • Passes Embedded Audio Through HDMI
  • Features Mic Input Option
  • HDCP 2.2 and HDCP 1.4 Compliant
  • HDMI 2.0 Compliant
  • Data Transfer Rate up to 6Gbps Per Channel (18Gbps All Channels)
  • TMDS Clock up to 600MHz
  • Supports 12bit Per Channel Deep Color (36bit All Channels)
  • Supports LPCM, DTS, Dolby Digital (Including DTS-HD Master Audio and Dolby TrueHD) Audio

Specifications

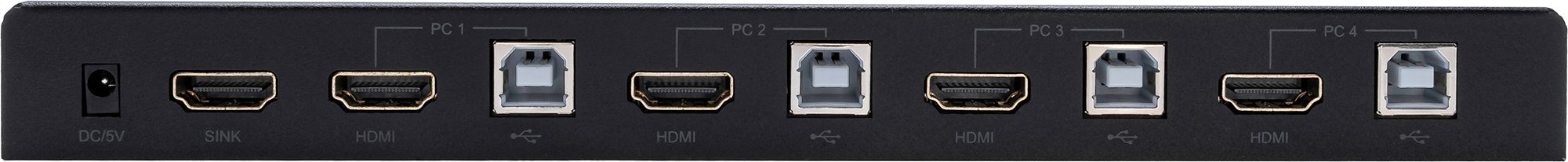

Input Ports: HDMI x 4, USB x 4, MIC x 1
Output Ports: HDMI x 1, Keyboard x 1, Mouse x 1, USB Device x 1, Audio x 1
Vertical Frequency Range: 50 / 60Hz
Video Amplifier Bandwidth: 6.0Gbps / 600MHz per Channel (18Gbps all Channels)
Interlaced (50 & 60Hz): 480i, 576i, 1080i
Progressive (50 & 60Hz): 480p, 576p, 720p, 1080p, 4K@24/25/30/50/60Hz
Operating Temperature: 32°F to 122°F / 0°C to 50°C
Storage Humidity: 5% to 80% RH Non-Condensation

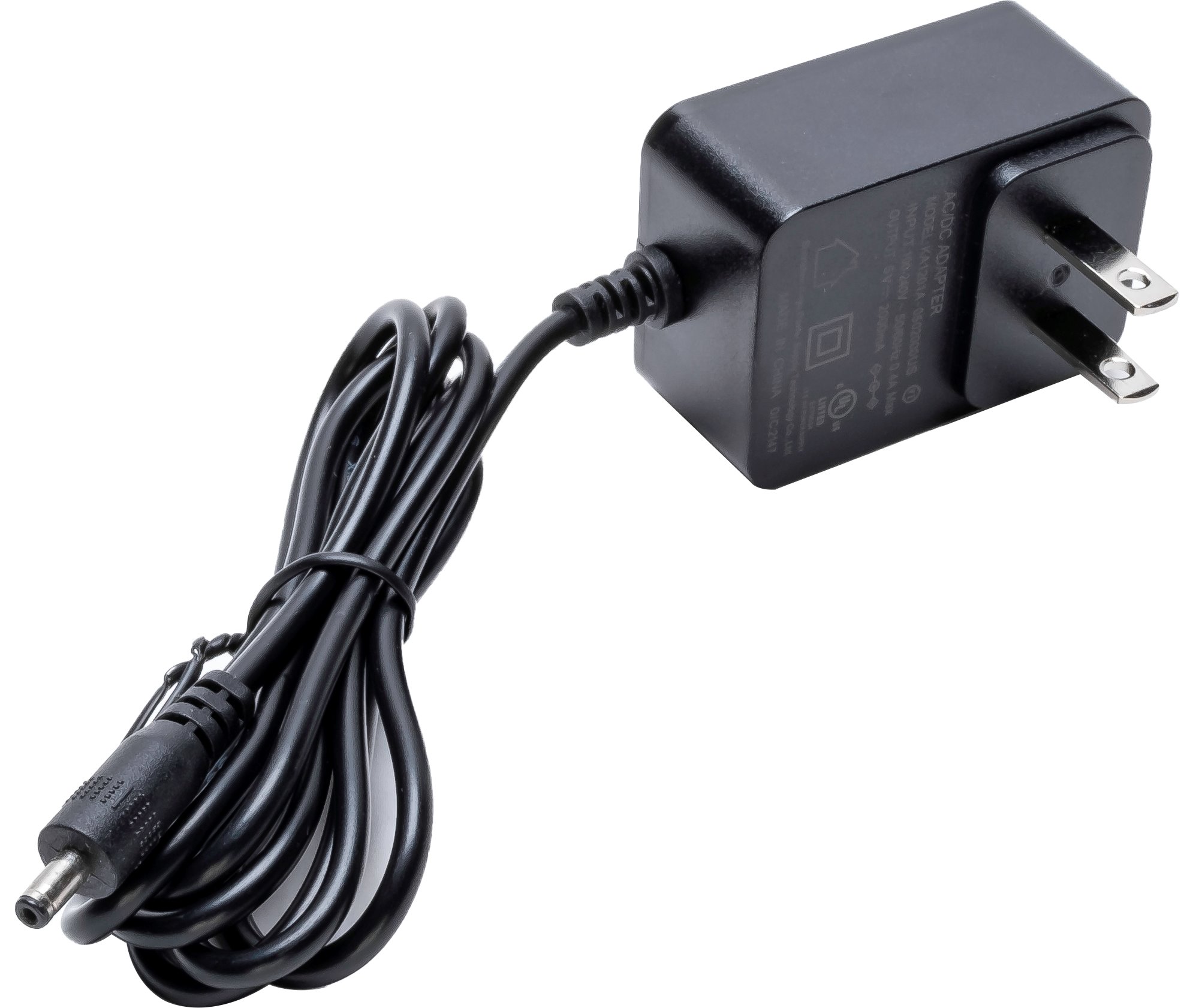

Power Supply: DC 5V
Power Consumption (Max): 5W
Switcher Unit Certification: FCC, CE, RoHS
Dimensions (LxWxH): 9 x 4.25 x 0.88" / 231 x 108 x 23mm
Weight: 1.26lbs / 515g
