Ocean Matrix OMX-07HMHM0003 HDMI 3x1 Switcher 8K 60Hz 4:4:4 HDR HDCP2.3

The Ocean Matrix OMX-07HMHM0004 is an HDMI 3x1 switcher that lets you share three HDMI-enabled video sources with a single display or projector. The switcher features three independent inputs that each support 8K resolutions and 7.1 surround sound audio. The switcher is backward compatible with Ultra HD 4K and HD 1080p, so users can be assured that their digital signage will look great in all situations.

Part Number: OMX-07HMHM0003  |  $81.95

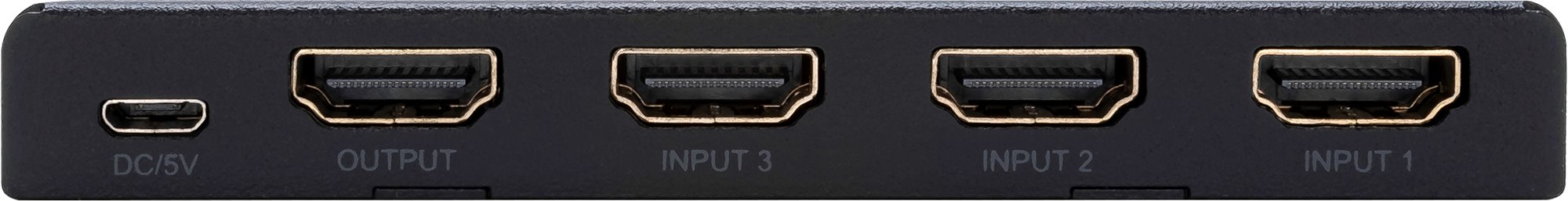

  • Input Ports: HDMI x 3
  • Output Ports: HDMI x 1
  • Vertical Frequency Range: 50/60/100/120/240Hz
  • Video Amplifier Bandwidth: 12Gbps/1200MHz per Channel (48Gbps All Channels)
  • Interlaced (50 & 60Hz): 480i,576i,1080i
  • Progressive (50 & 60Hz): 480p,576p,720p,1080p,4K@24/30Hz,4K@50/60/120Hz, 8K@24/30/50/60Hz
  • Operating Temperature: 32°F – 158°F
  • Storage Humidity: 5% to 90% TH Non-condensation
  • Power Consumption (Max): 5W
  • Switcher Unit & Power Supply Certifications: FCC, CE, RoHS
  • Dimensions (LxWxH): 4.4 x 2.2 x 0.6in (112.3 x 56.6 x 14.5mm)
  • Weight: 0.288lbs (131g)
