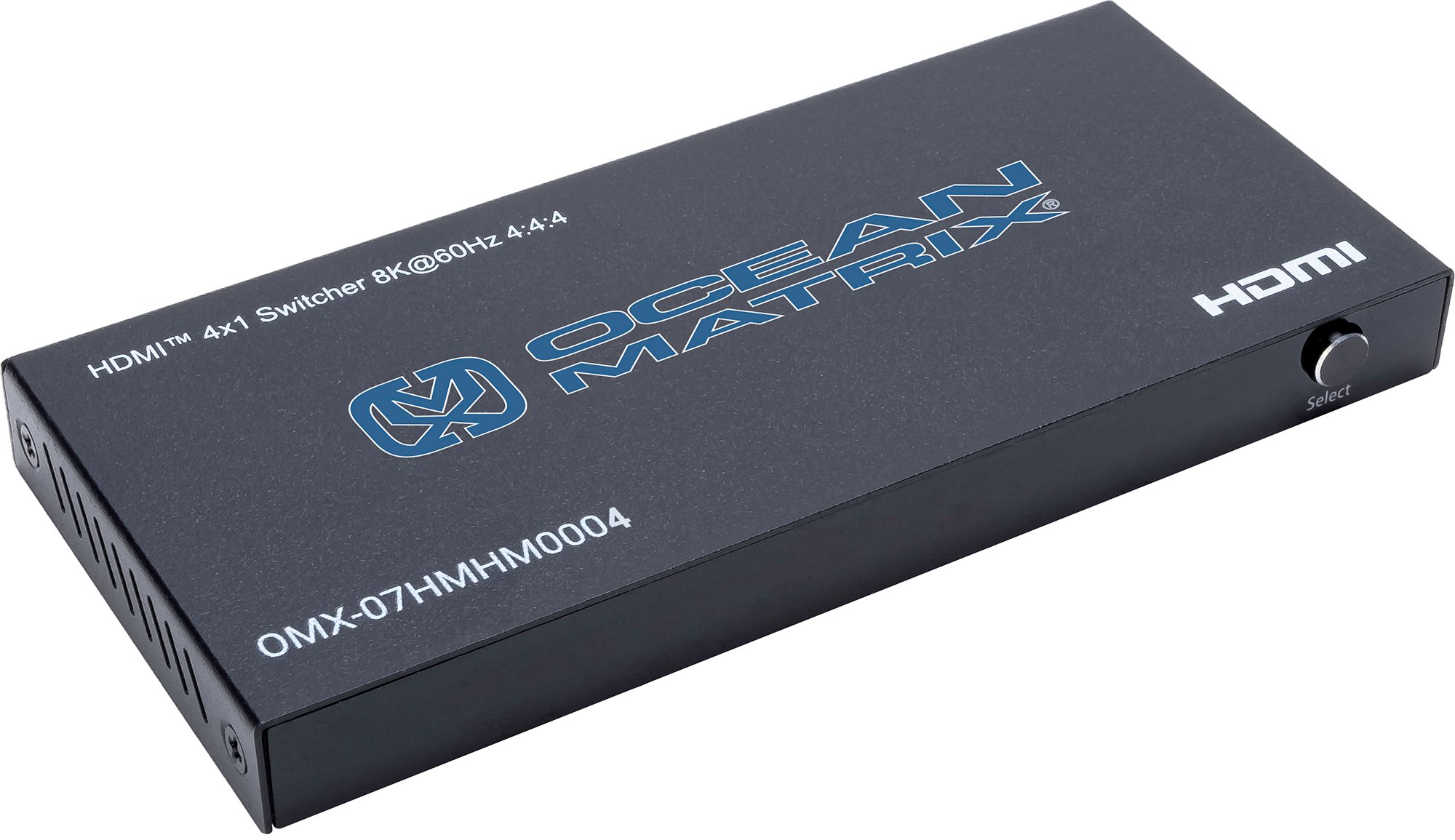

Ocean Matrix OMX-07HMHM0004 HDMI 4x1 Switcher 8K 60Hz 4:4:4 HDR HDCP2.3

OMX-07HMHM0004 1.jpg
OMX-07HMHM0004 2.jpg
OMX-07HMHM0004 3.jpg
OMX-07HMHM0004 4.jpg
OMX-07HMHM0004 5.jpg
Part Number: OMX-07HMHM0004  |  $92.95

The Ocean Matrix OMX-07HMHM0004 is an HDMI 3x1 switcher that lets you share three HDMI-enabled video sources with a single display or projector. The switcher features three independent inputs that each support 8K resolutions and 7.1 surround sound audio. The switcher is backward compatible with Ultra HD 4K and HD 1080p, so users can be assured that their digital signage will look great in all situations.

Features:

  • Supports Resolutions up to 8K@60Hz 4:4:4, 4K@120Hz, and 1080p@240Hz
  • 1200MHz/12Gbps per Channel Bandwidth (48Gbps All Channels)
  • Supports 12bit per Channel (36bit All Channels) Deep Color
  • HDCP 2.3, HDCP2.2 and HDCP1.4 Compliant
  • Support High Dynamic Range (HDR) Video Pass-through, such as HDR10/HDR10+/Dolby vision etc.
  • VRR (Variable Refresh Rate), ALLM (Auto Low-latency Mode), and QFT (Quick Frame Transport) Functionality
  • Built-in Equalizer, Retiming, and Driver

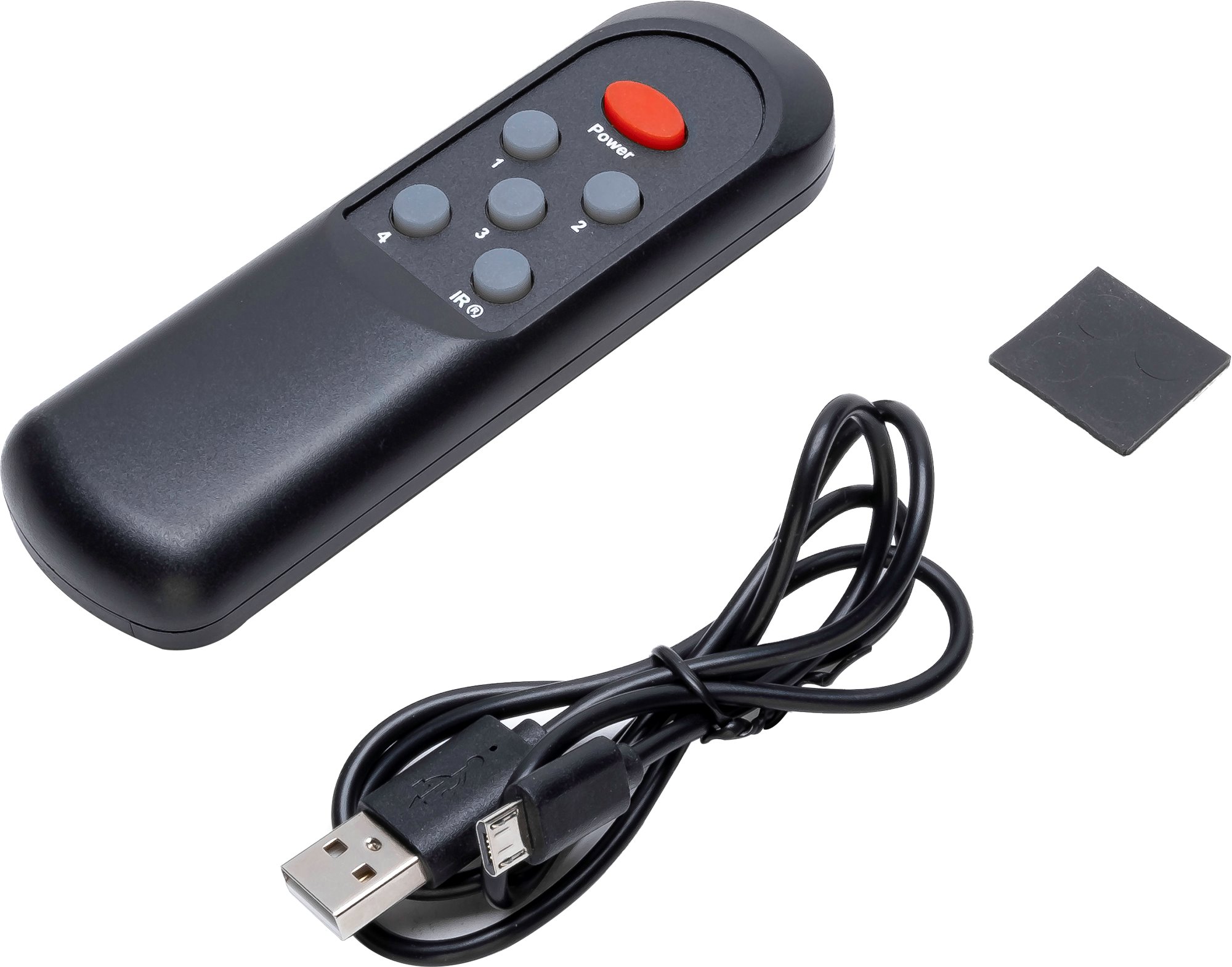

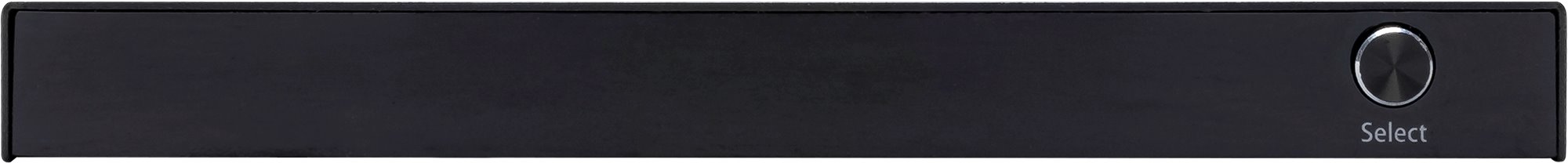

  • Automatic, Manual, and Remote Control Switching Supported
  • Supports Uncompressed Audio; LPCM
  • Supports Compressed Audio: DTS, Dolby Digital (DTS-HD Master Audio™ and Dolby TrueHD)
Specifications

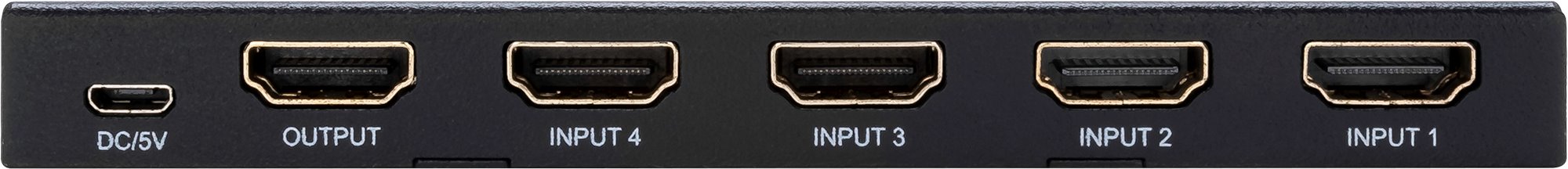

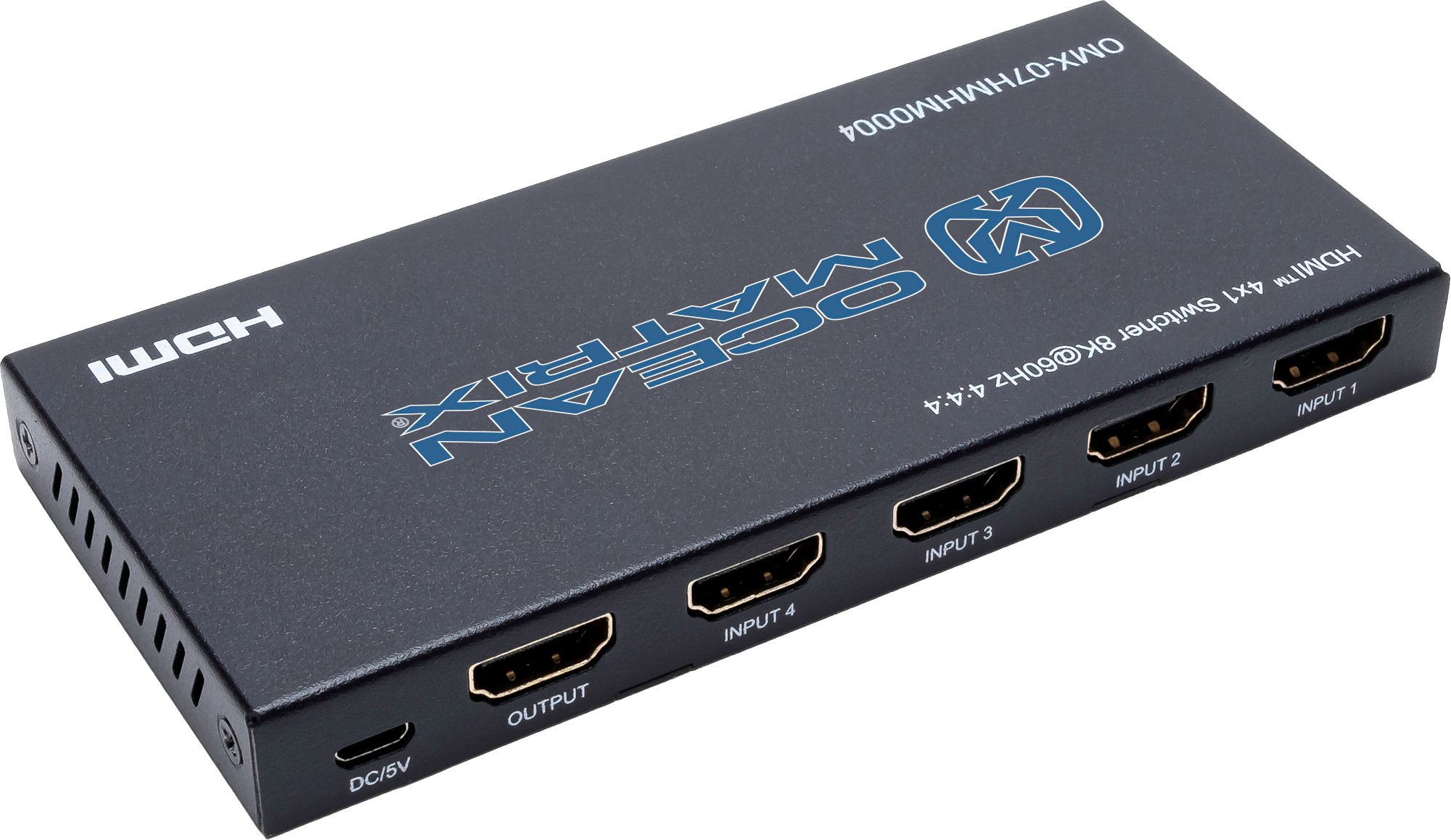

  • Input Ports: HDMI x 4
  • Output Ports: HDMI x 1
  • Vertical Frequency Range: 50/60/100/120/240Hz
  • Video Amplifier Bandwidth: 12Gbps/1200MHz per Channel (48Gbps All Channels)
  • Interlaced (50 & 60Hz): 480i,576i,1080i
  • Progressive (50 & 60Hz): 480p,576p,720p,1080p,4K@24/30Hz,4K@50/60/120Hz, 8K@24/30/50/60Hz
  • Operating Temperature: 32°F – 158°F (0°C-70°C)
  • Storage Humidity: 5% to 90% TH Non-condensation
  • Power Consumption (Max): 5W
  • Switcher Unit & Power Supply Certifications: FCC, CE, RoHS
  • Dimensions (LxWxH): 5.35 x 2.41 x 0.56in (136.3 x 61.5 x 14.5mm)
  • Weight: 0.3563lbs (163g)
