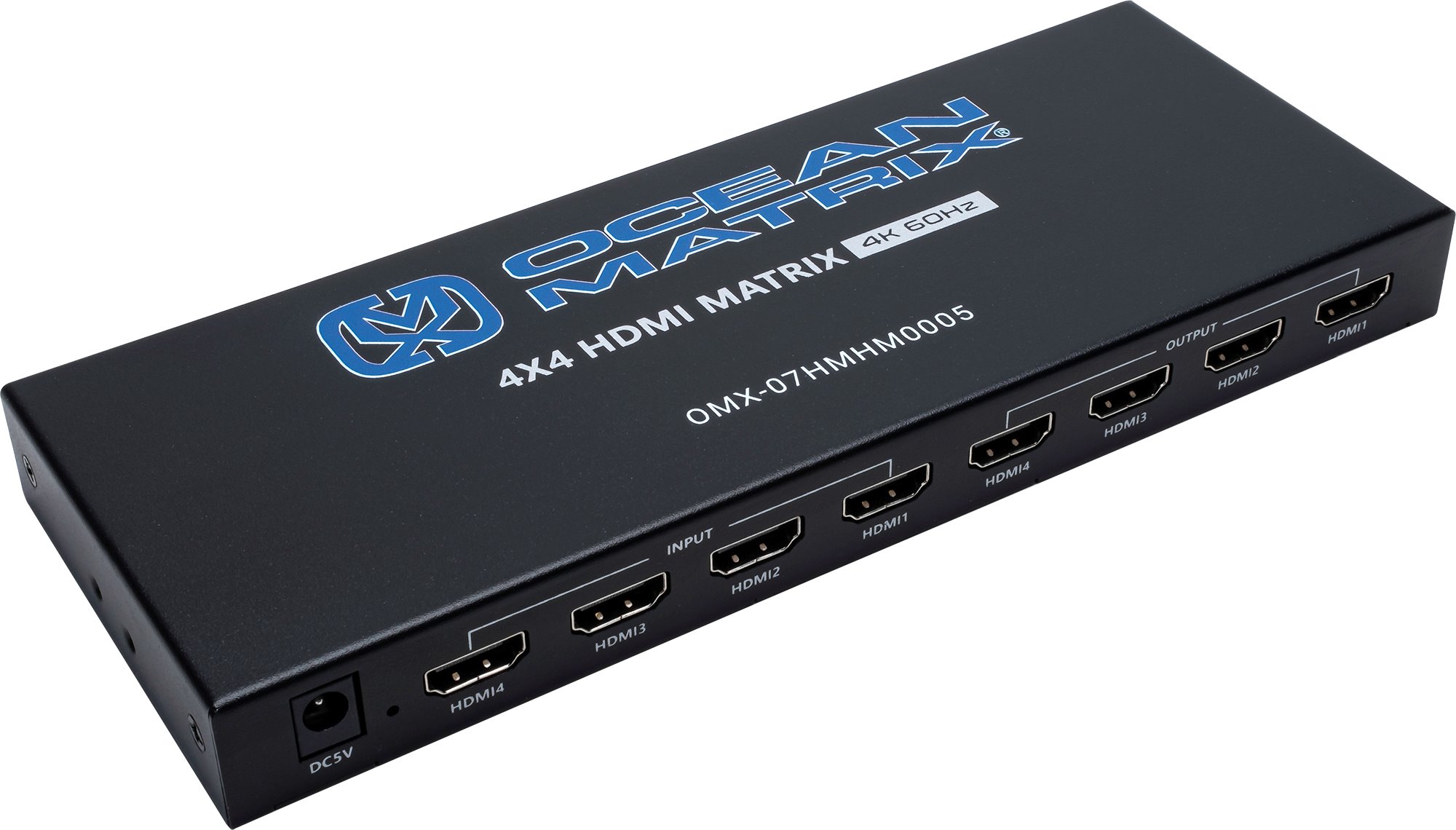

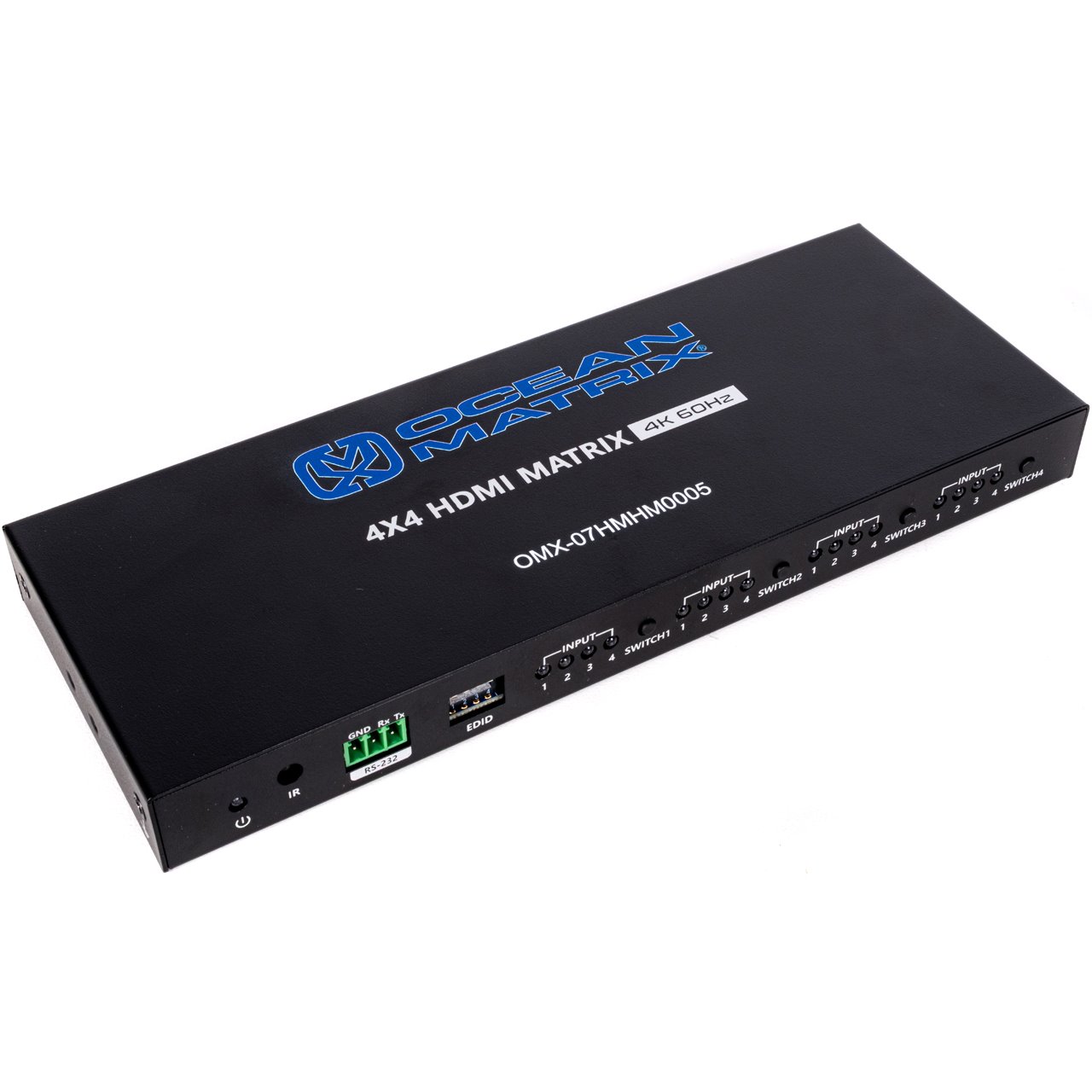

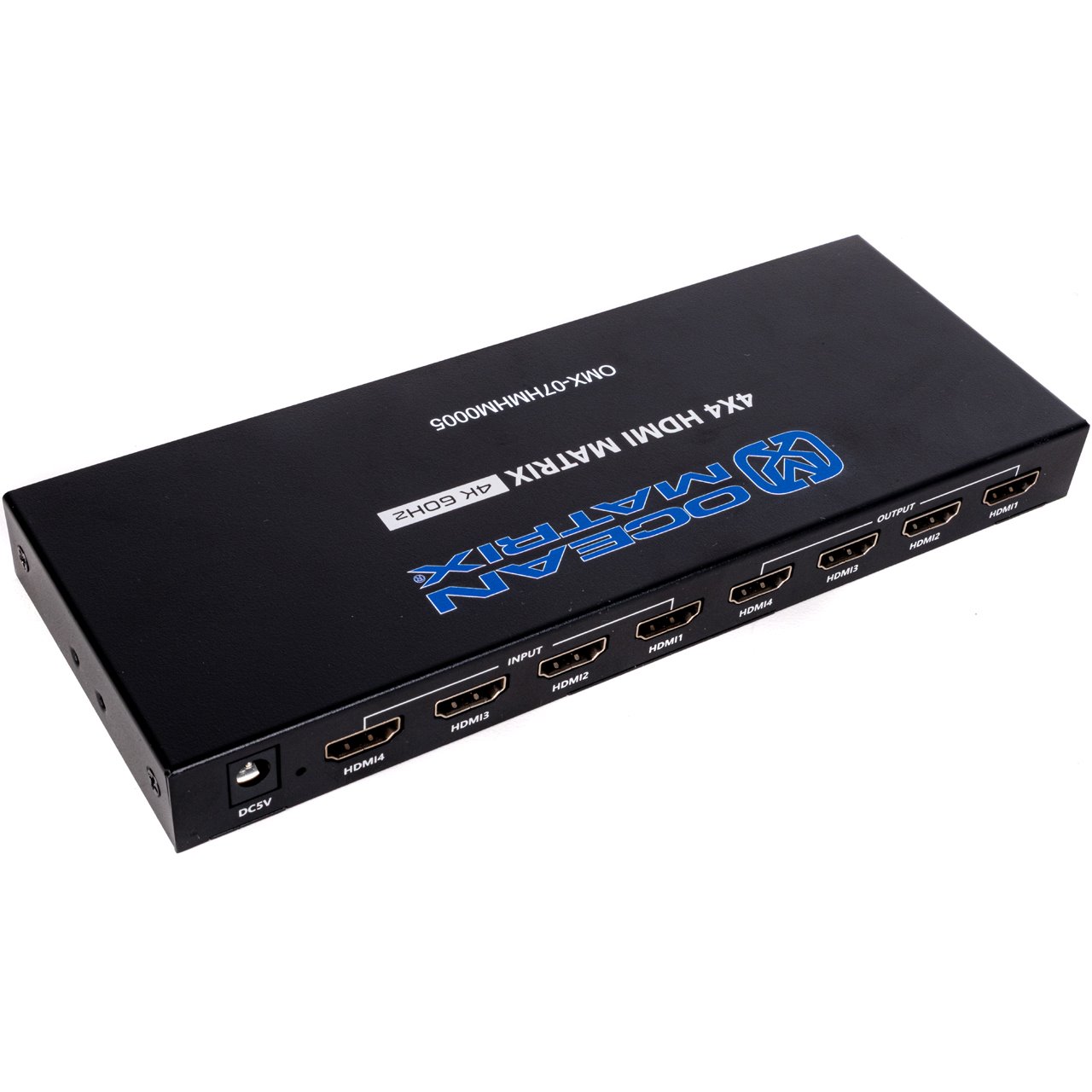

Ocean Matrix OMX-07HMHM0005 4K60Hz HDR 4x4 HDMI Matrix Switcher

OMX-07HMHM0005 1.jpg
OMX-07HMHM0005 2.jpg
OMX-07HMHM0005 3.jpg
OMX-07HMHM0005 4.jpg
OMX-07HMHM0005 5.jpg
Part Number: OMX-07HMHM0005  |  $227.95

The Ocean Matrix OMX-07HMHM0005 is a 4x4 HDMI matrix switcher that supports resolutions up to 4K60 and is backwards compatible. Send any HDMI input to any HDMI output with this affordable solution which supports switching via IR remote control, front panel buttons, and RS232, as well as automatic downscaling for any two of the HDMI outputs.



Features:

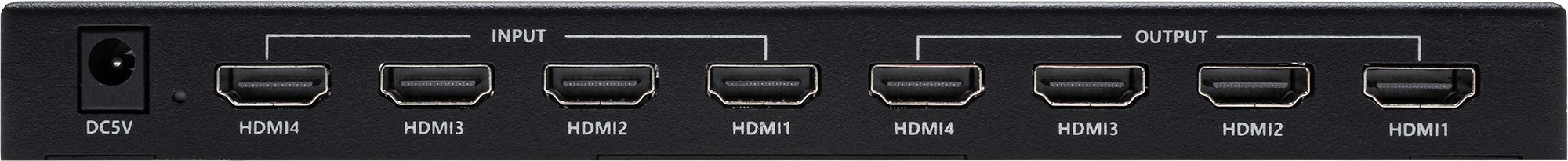

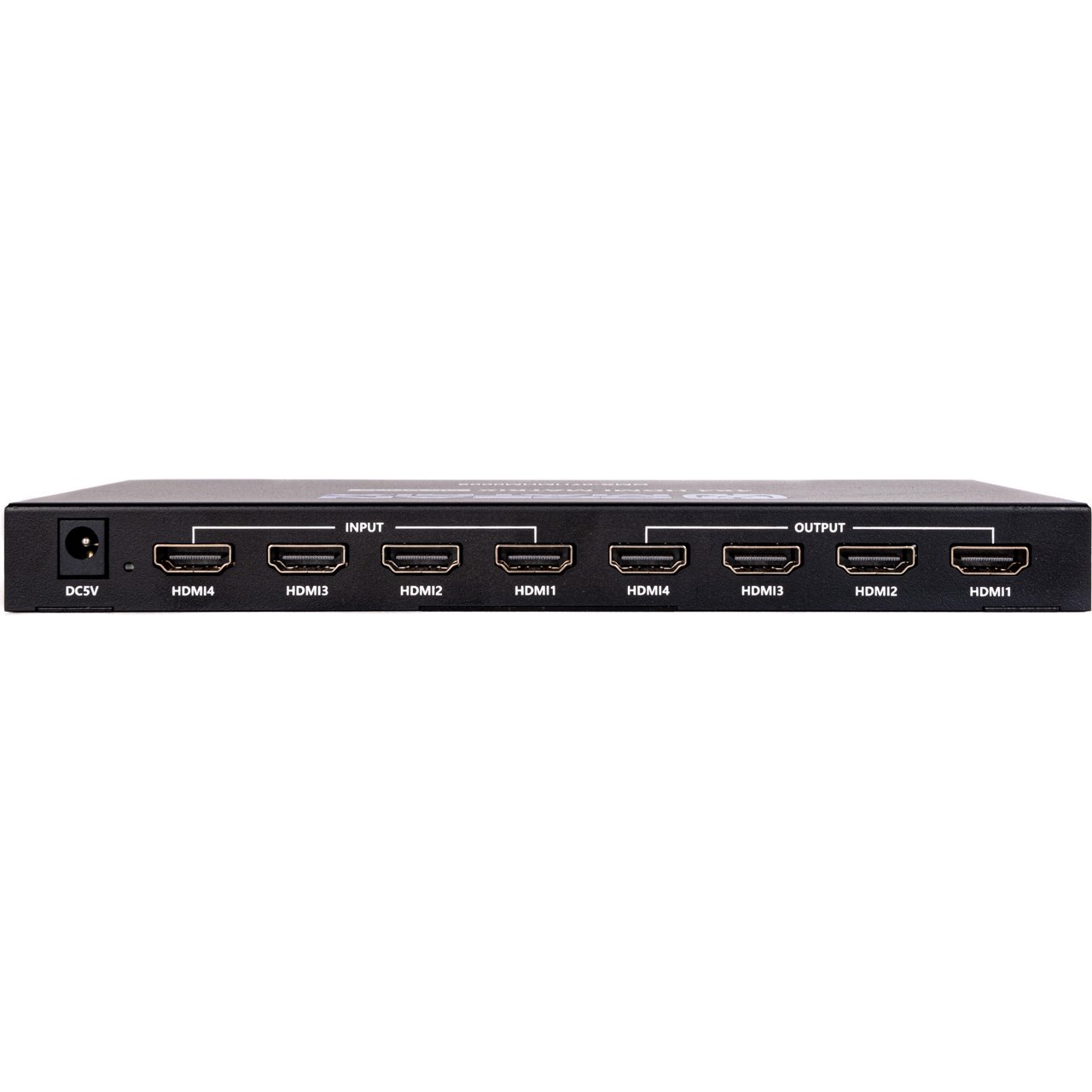

  • Supports 4 HDMI Input Signals and 4 HDMI Ouptut Signals
  • Supports up to 4096x2160@60Hz Resolution and is Backwards Compatible
  • HDR10 Supported

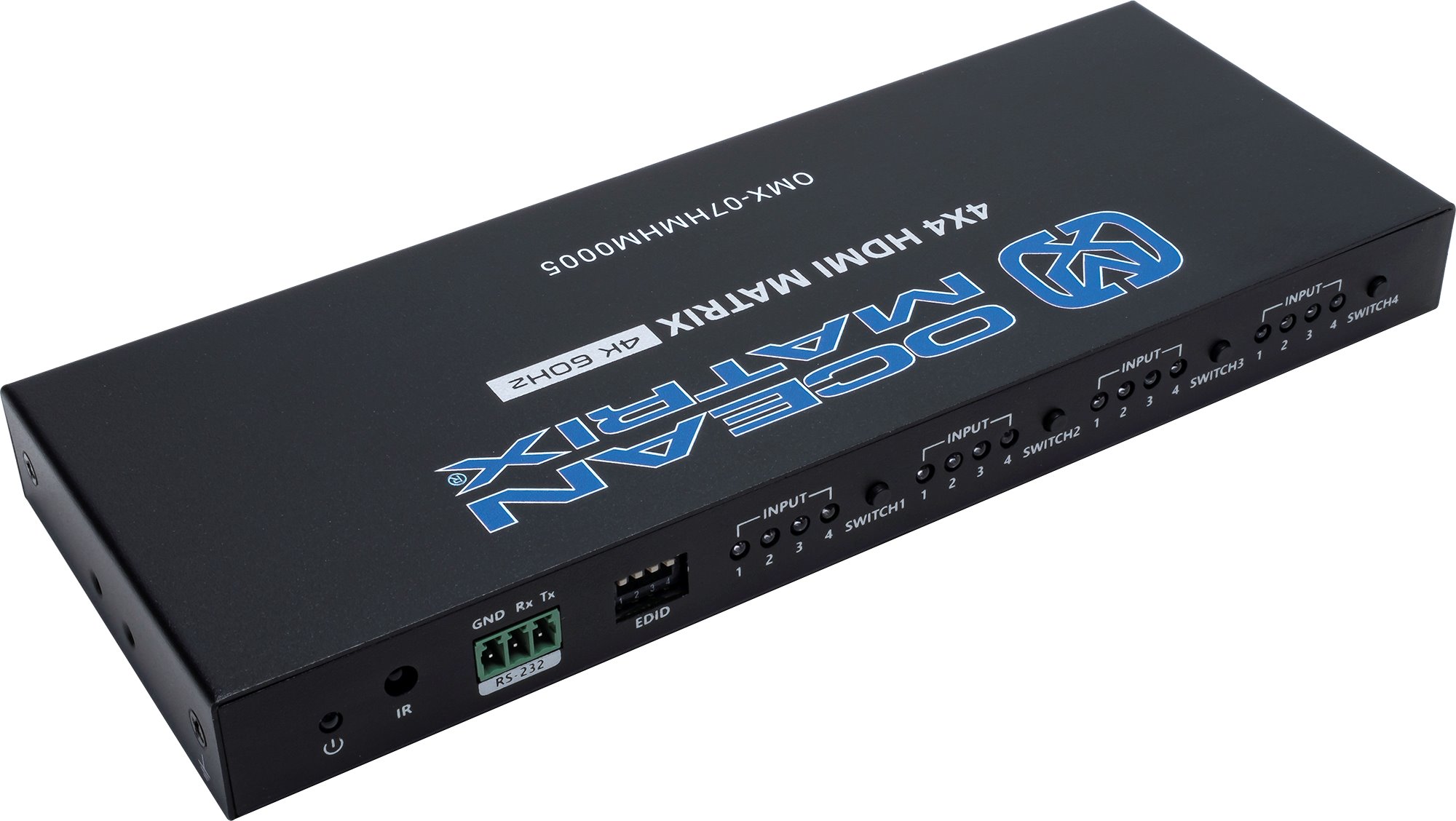

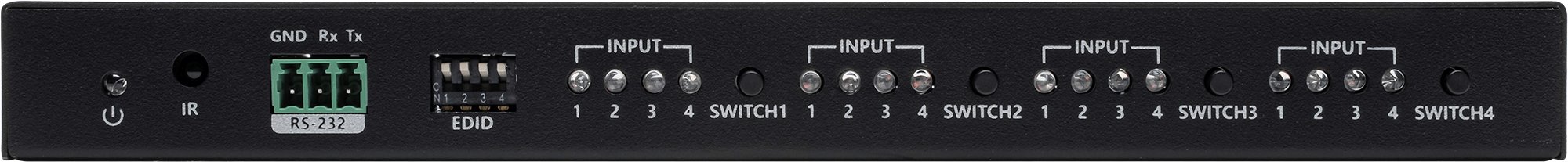

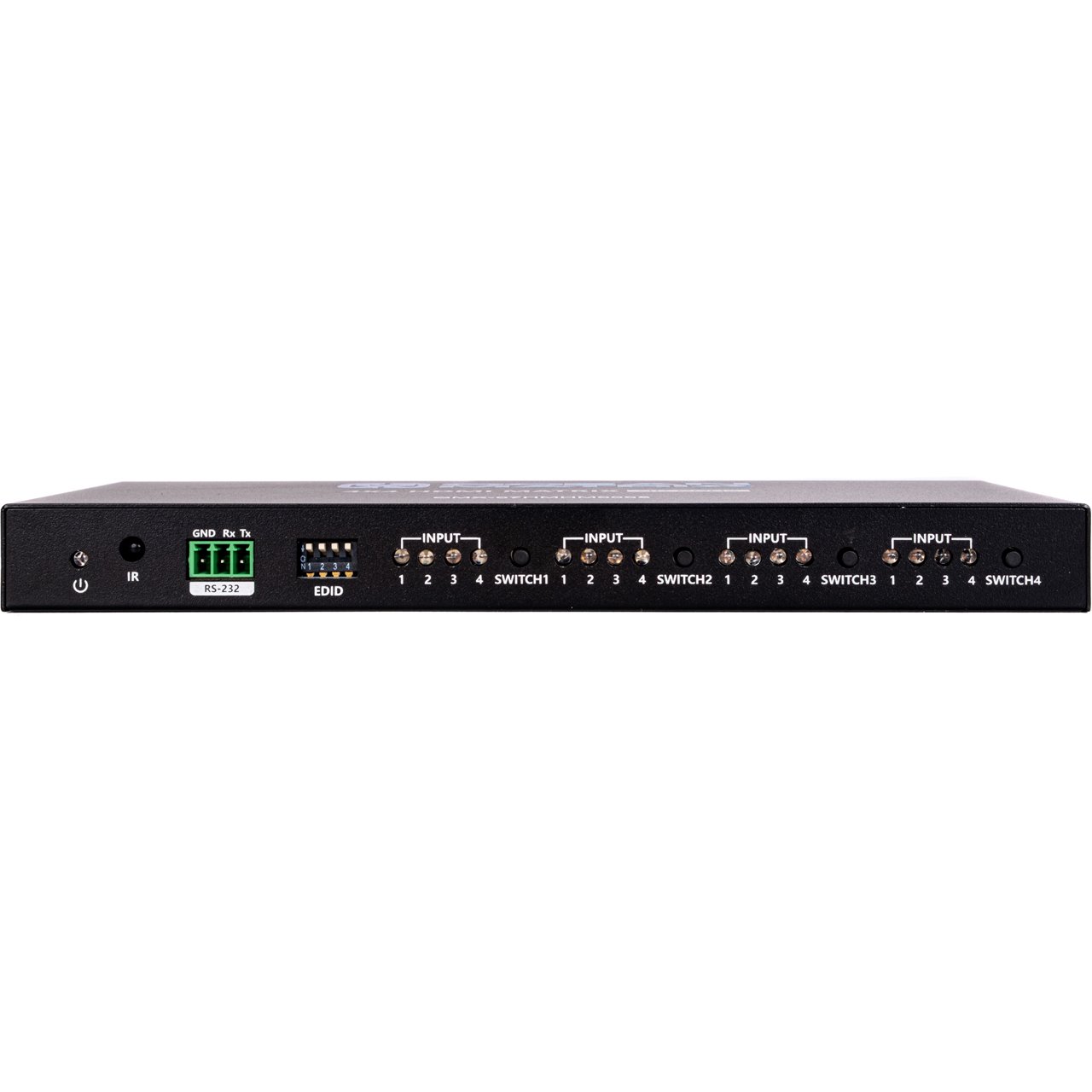

  • Multiple Switching Mode: IR Remote Control, front panel buttons, & RS232
  • Built-In EDID Management
  • Any Two of the Four HDMI Outputs Support Auto Down-Scaling
  • Lighting, Surge, and ESD Protection

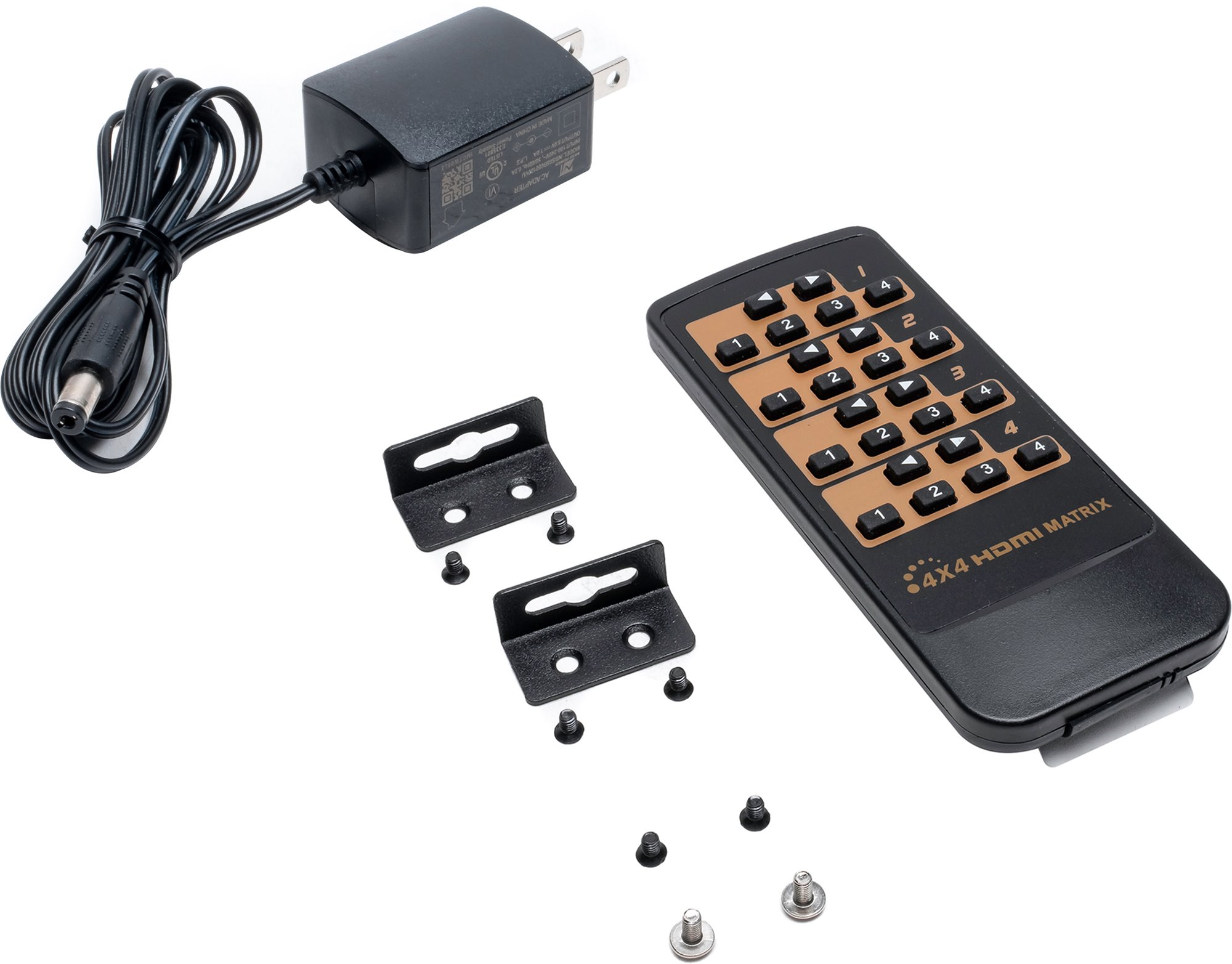

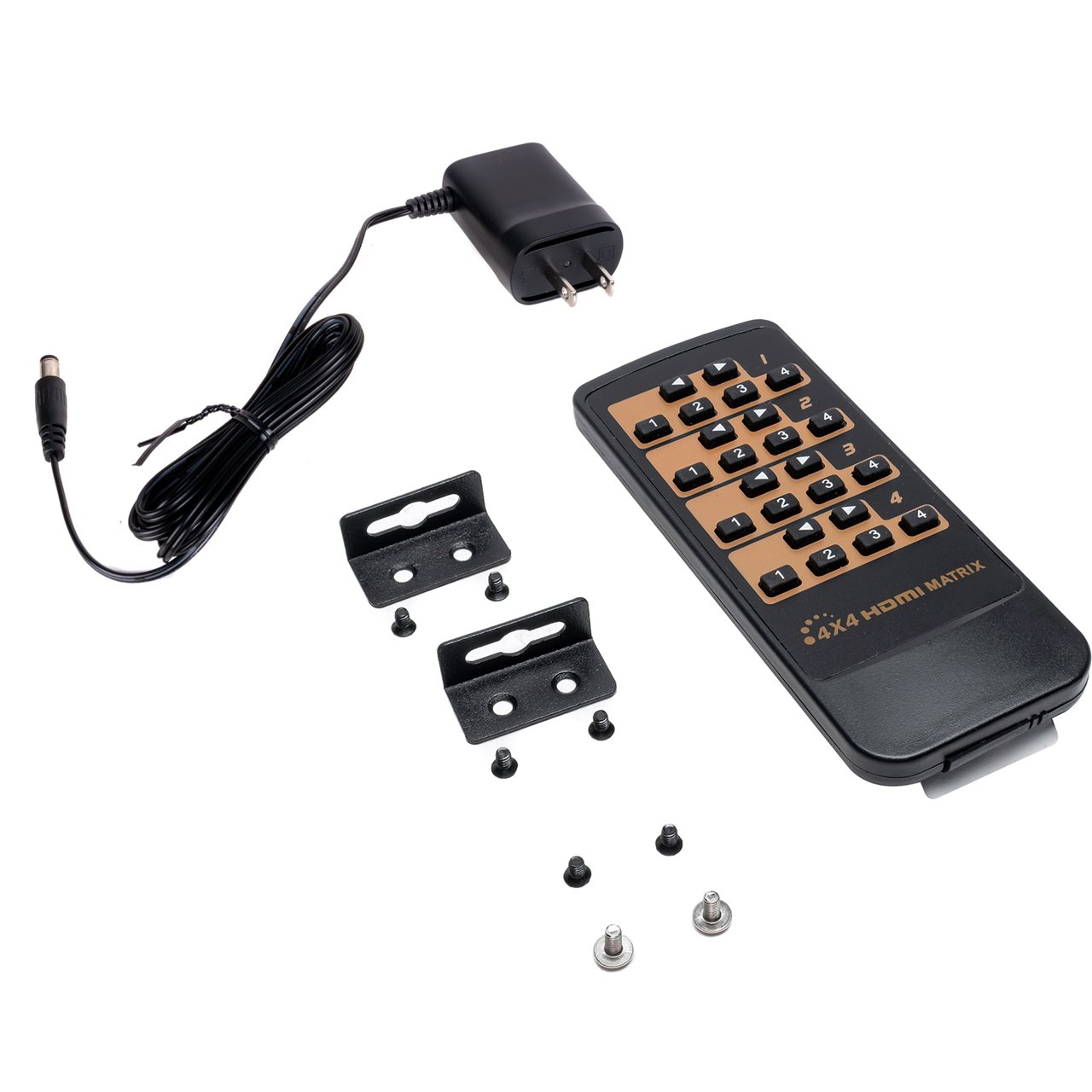

Item Includes:



  • 1 x OMX-07HMHM0005 4x4 HDMI Matrix Switcher
  • 1 x Power Adapter 5V/1A
  • 1 x Remote Control
  • 2 x Mounting Ears
  • 6 x Mounting Screws
  • 2 x Grounding Screws
  • 1 x Terminal Block



Specifications
  • HDMI 2.0 (HDR, YUV4:4:4)
  • Compatible with HDCP2.2, HDCP1.4
  • Transmission Rate: 18Gbps
  • Bandwidth: 600MHz
  • Supported Resolutions: 480i@60Hz / 480p@60Hz / 576i@50Hz / 576p@50Hz / 720p@50/60Hz / 1080i@50/60Hz / 1080p@50/60Hz / 3840x2160@24/25/30/60Hz / 4096x2160@24/25/30/60Hz
  • Supported Audio Formats: LPCM7.1 / DTS-HD / DTS-AUDIO / DOLBY DIGITAL PLUS / DOLBY TRUEHD 7.1 / DOLBY DIGITAL 7.1CH / DOLBY ATMOS
  • RS-232: 3 Pin (GND/Rx/Tx), BAUD Rate 9600
  • Voltage: DC5V/1A
  • Power Consumption: < 4W
  • Working Temperature: -4°F – 140°F (-20°C – 60°C)
  • Storage Temperature: -22°F – 158°F (-30°C – 70°C)
  • Dimensions (LxWxH): 8.375 x 3.162 x 0.845”
  • Weight: 0.8063 lbs (367g)
