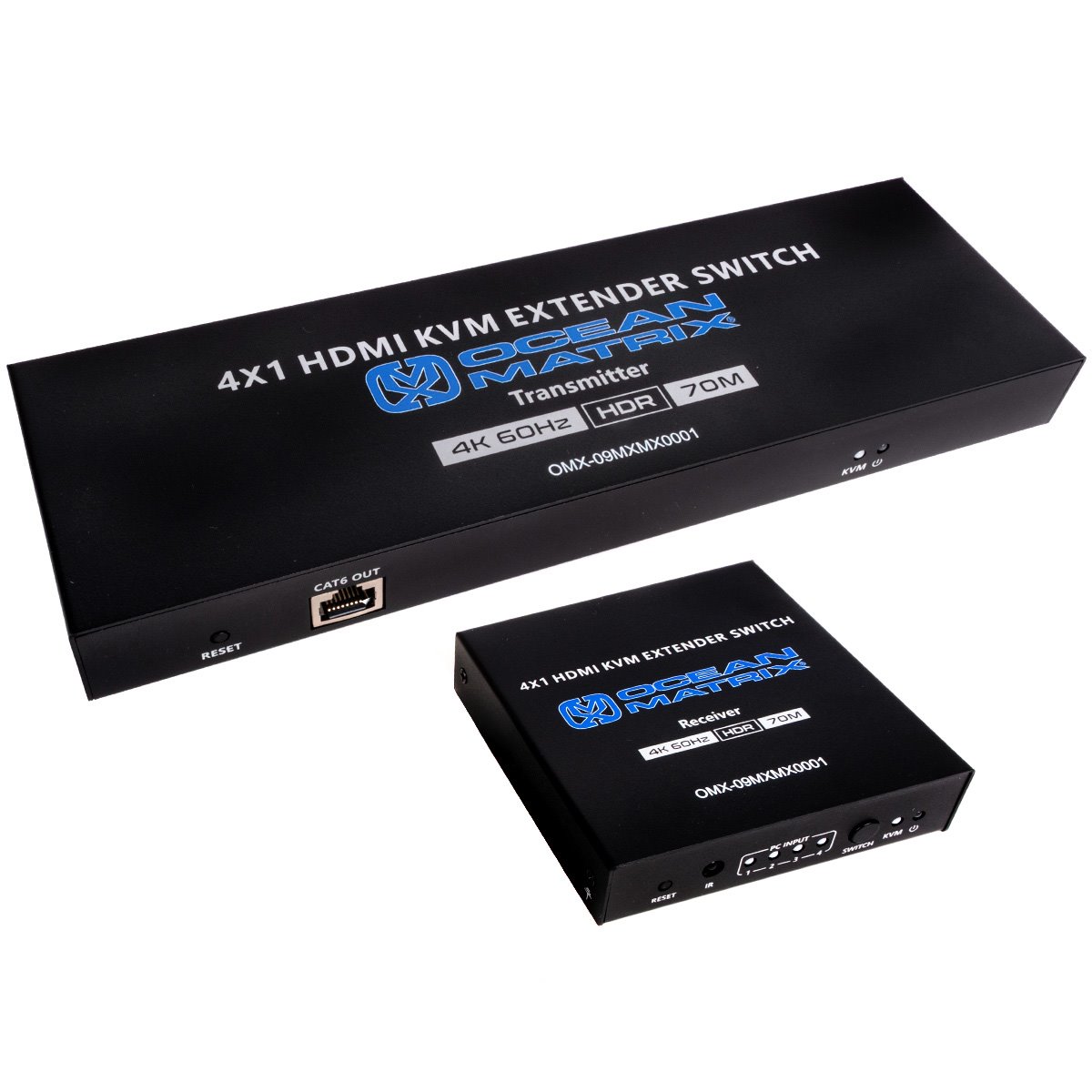

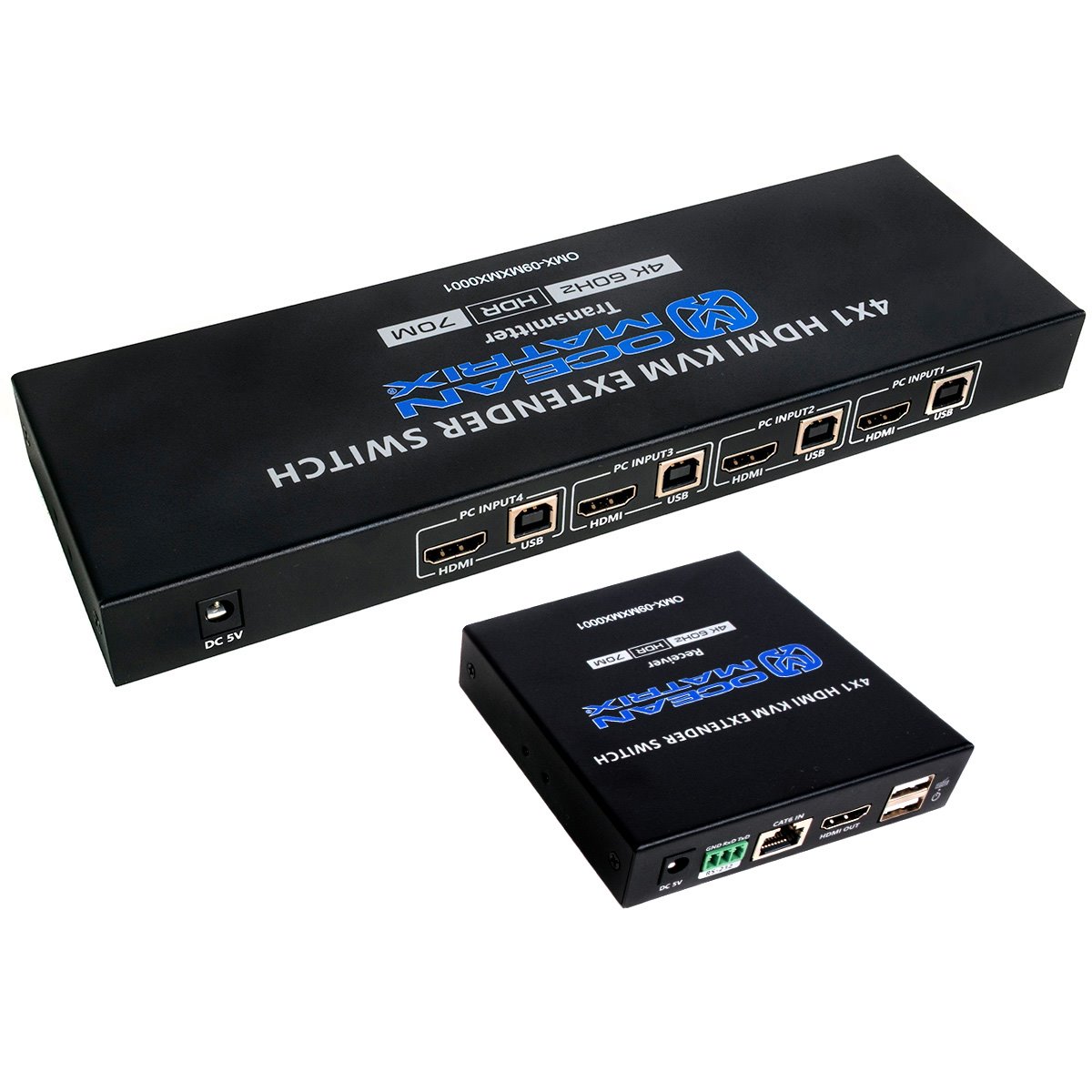

Ocean Matrix OMX-09MXMX0001 4X1 4k@60Hz HDMI KVM Extender Switch

Part Number: OMX-09MXMX0001

Dimensions (in):

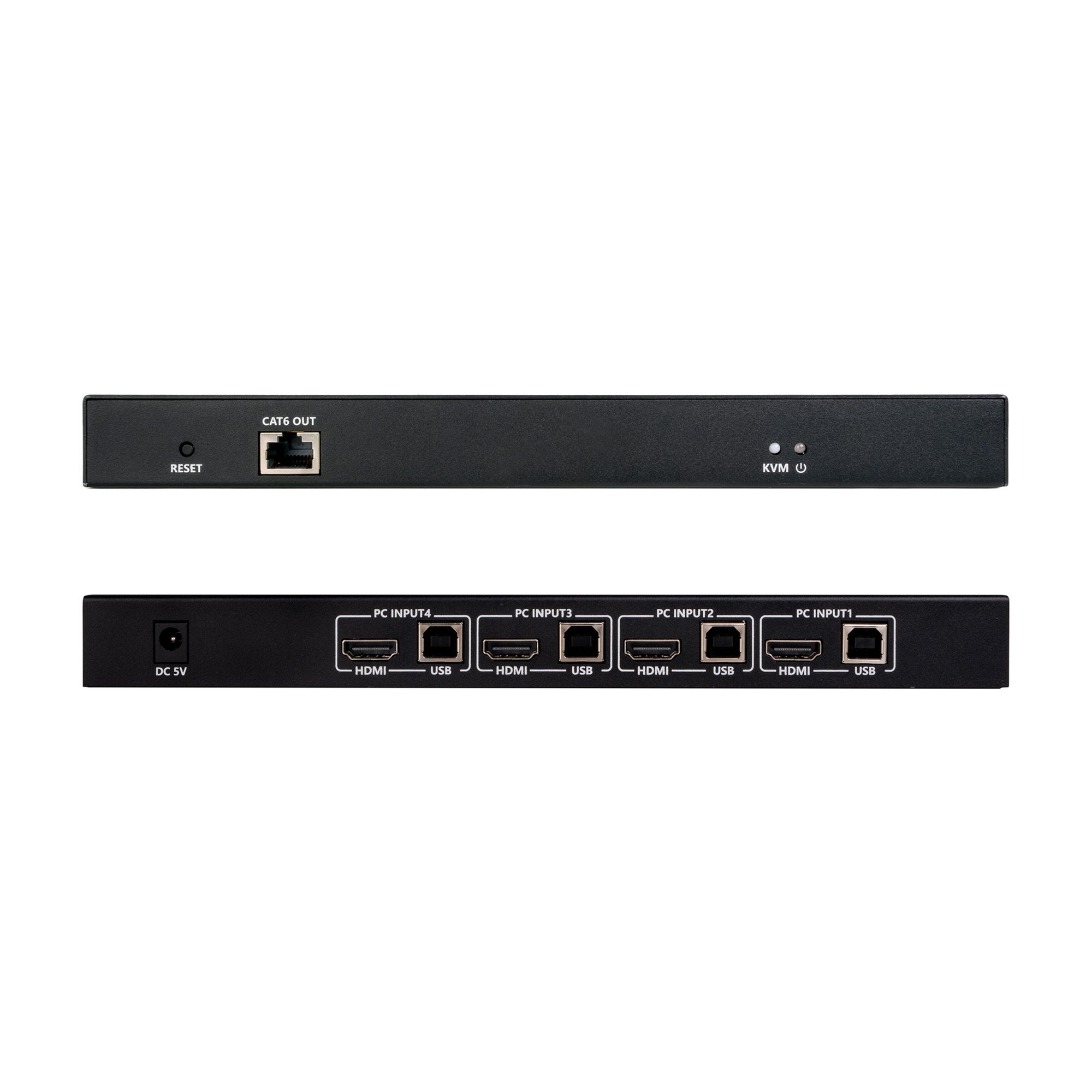

  • Transmitter: 9.84(L) x 3.14(W) x 0.98(H)

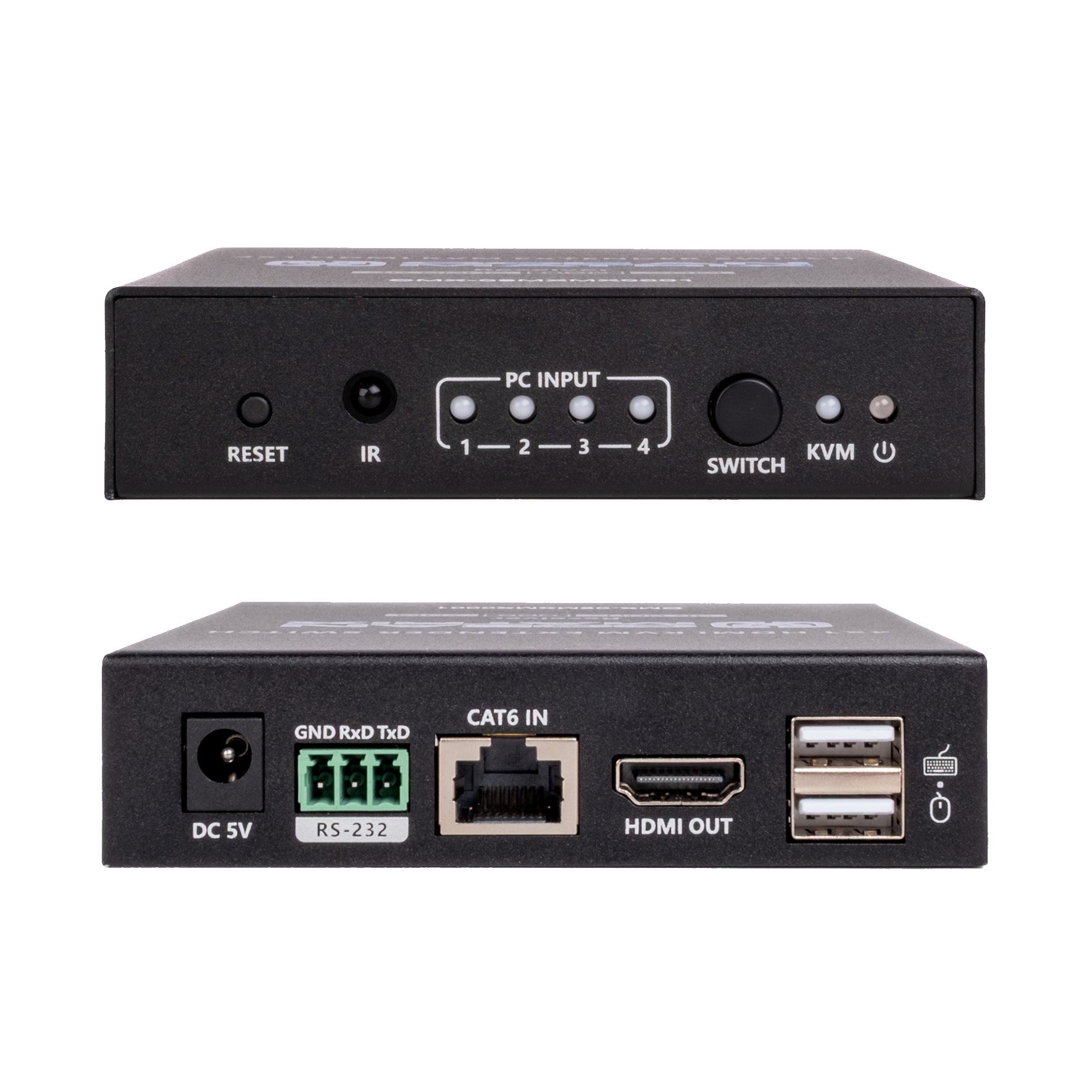

  • Receiver: 4.17(L) x 4.05(W) x 0.98(H)

Material: Iron

Inputs:

  • HDMI: 4
  • RJ45: 1
  • RS-232: 1 (3 Pin, GND/RxD/TxD, baud rate 9600)
  • USB Type-A: 2
  • USB Type-B: 4
  • DC 5V: 2

Output:

  • HDMI: 1
  • RJ45: 1

Video Bandwidth: 600MHz

HDMI Compliance: HDMI 2.0 (HDR, YUV4:4:4)

HDCP Compliance: HDCP 1.4 and HDCP 2.2

HDMI Resolutions:

  • 480i/p@60Hz
  • 576i/p@50Hz
  • 720p@50/60Hz
  • 1080i/p@50/60Hz
  • 3840x2160@24/25/30/50/60Hz
  • 1280x960, 1280x800, 1280x768
  • 1680x1050
  • 1360x768
  • 1366x768
  • 1600x900
  • 1024x768
  • 800x600
  • 2560x1600, 2560x1440
  • 1920x1200

Audio Formats: LPCM7.1 / DTS-HD / DTS-Audio / Dolby Digital Plus / Dolby TrueHD 5.1 / Dolby Digital / Dolby Atmos

Transmission Speed: 18Gbps

Transmission Distance (CAT6/CAT6A/CAT7): ≤229.65ft (70m)

Voltage/Current: DC 5V/1A

Power Consumption:

  • Transmitter: <4W
  • Receiver: <4W

Temperature:

  • Operating: -4°F to 140°F (-20°C to 60°C)
  • Storage: -22°F to 158°F (-30°C to 70°C)

Weight:

  • Transmitter: 1.19lbs (542g)
  • Receiver: 0.65lbs (298g)
