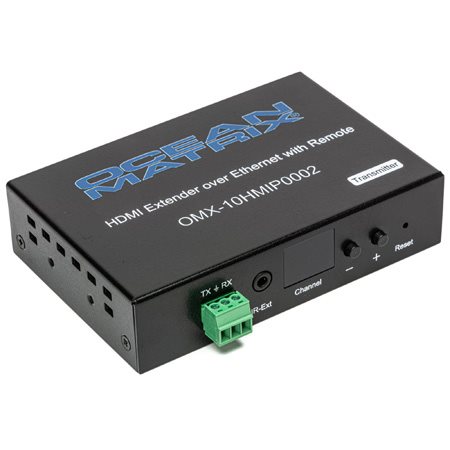

Ocean Matrix OMX-10HMIP0002 H.264 1080p/60 HDMI Over IP Extender with PoE RS-232 IR Transmitter ONLY

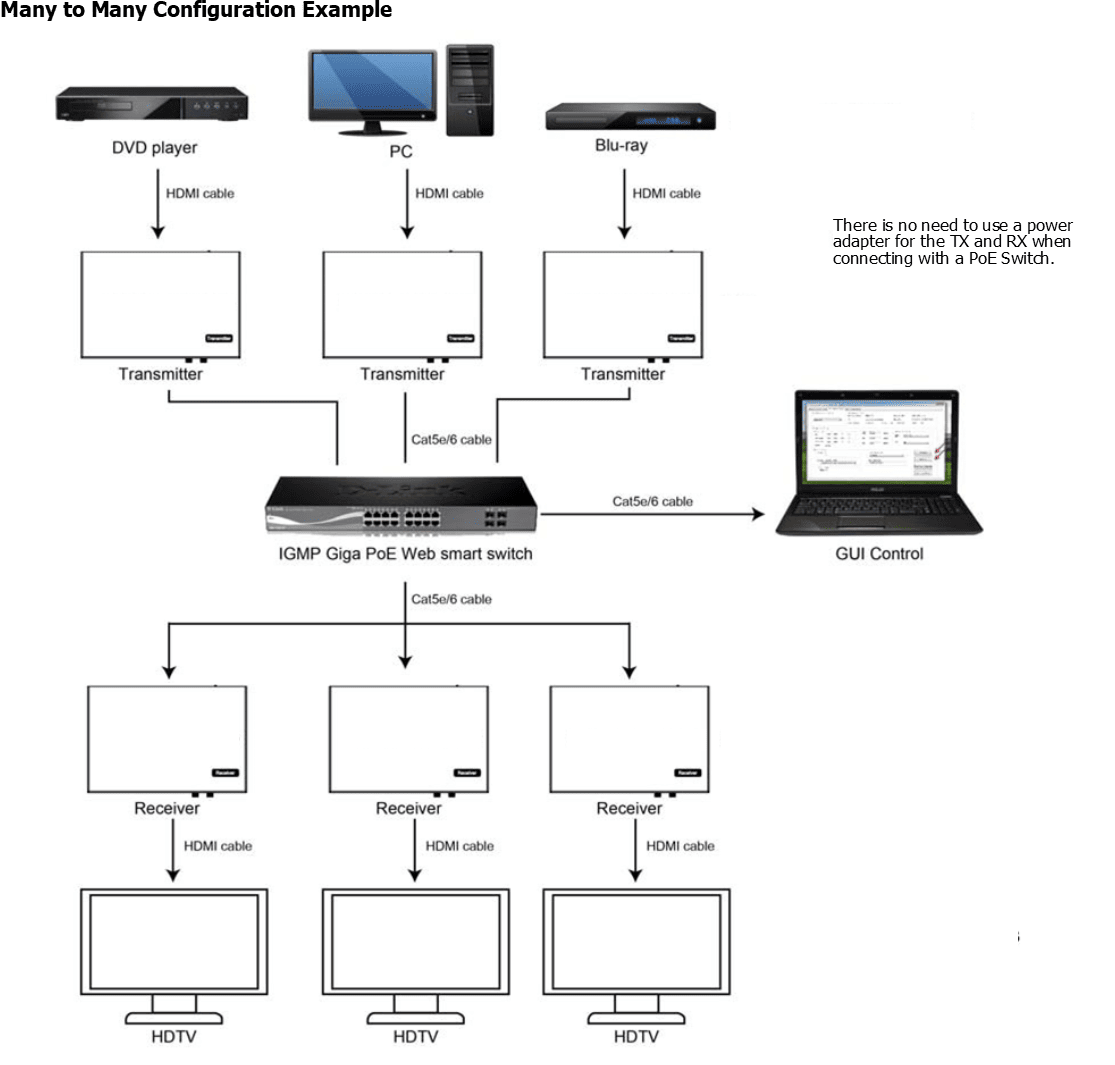

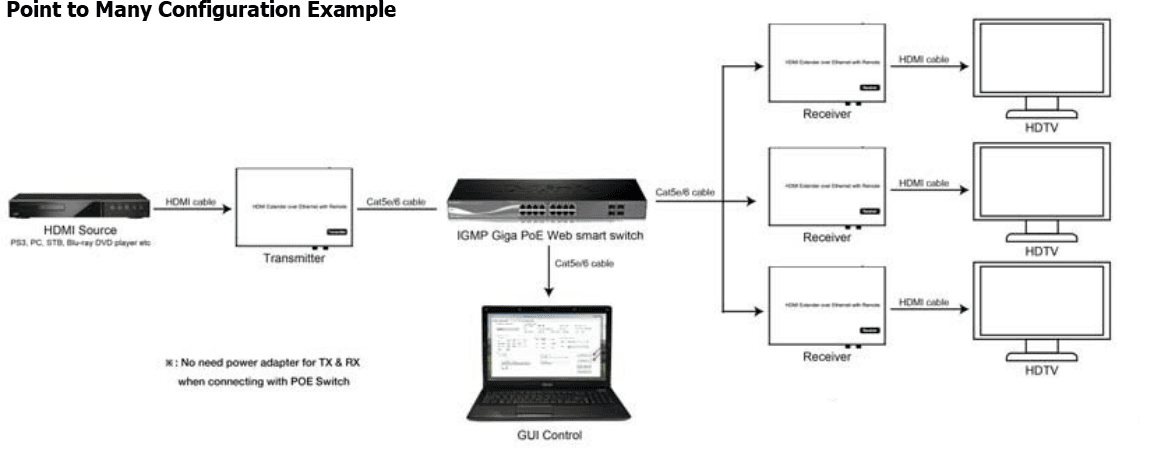

The Ocean Matrix OMX-10HMIP0002 HDMI Over IP Transmitter uses H.264 video compression to extend 1080p@60Hz video and audio signal transmission from HDMI based equipment up to 394 feet over single Cat5e/6 cable for point-to-point delivery. Featuring IR control, PoE (power over Ethernet) capability when used with a PoE switch, this transmitter uses less bandwidth and supports point-to-many and many-to-many set ups when used with an Ethernet switch. Includes a local HDMI loop-out.

OMX-10HMIP0002 Transmitter only. USE with OMX-11IPHM0002 Receiver.

Part Number: OMX-10HMIP0002

Features:

Low Bandwidth
Looping HDMI output
Local or PoE Power Input: Includes 5V/1A power supply; PoE compliant when using a PoE Switch
Supports Dynamic Host Configuration Protocol (DHCP)
Wide-Band IR Control (38khz to 56khz)

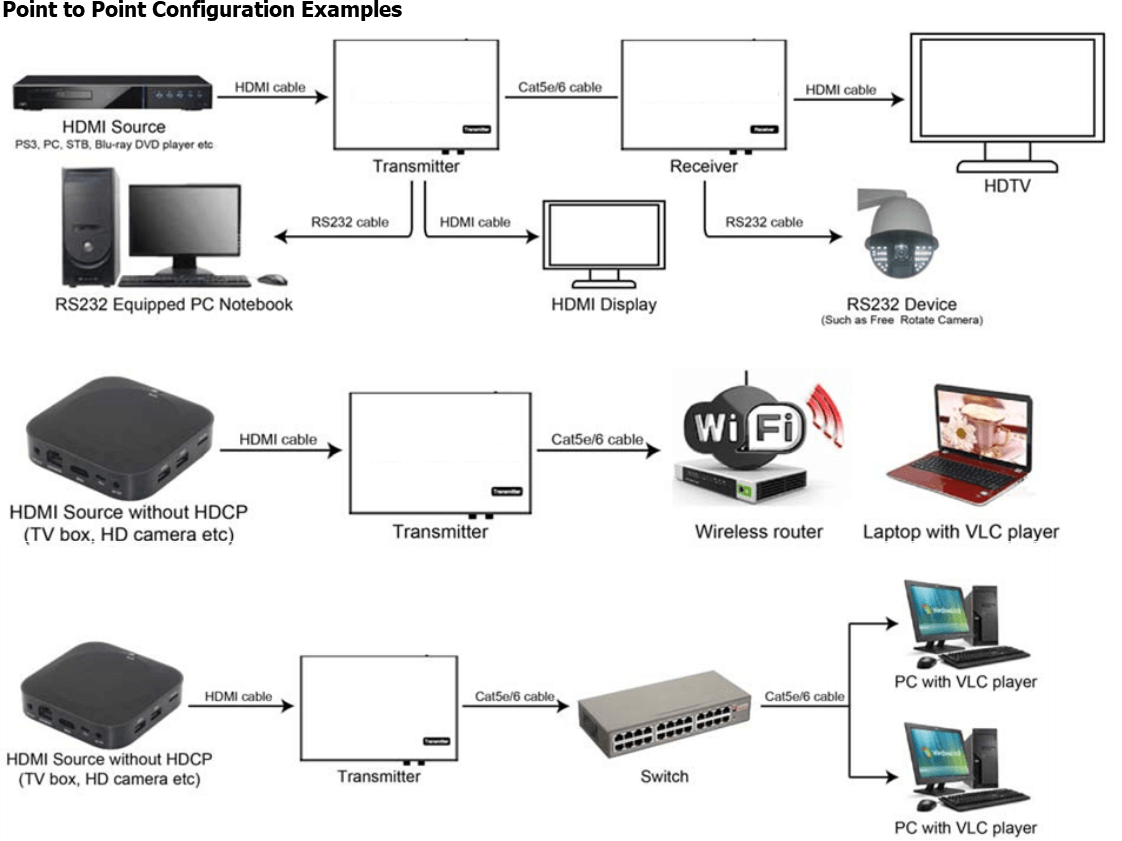

Bidirectional RS232
Cascade Capability
LPCM Audio Format
PoE 802.3 and HDCP Compliant
Black Powder-Coated Steel Cabinet

Item Includes:

1-5VDC/1A Power Supply, IR-TX and IR-Ext with mounting pads, Remote Control, 2 Brackets, 2 Screws, 1 Phoenix Plug for RS232 Cable Termination

Warranty:

1 Year

Protocol H.264 encoder over TCP/IP
Transmission Distance: 394 feet/120m over Cat5e/6
Video format 480i/480p/576i/576p/720p/1080i/1080p@60HZ
Audio format LPCM, Audio sampling rate 48KHZ
Streaming Bit Rate 15Mbps
Default Baud Rate 2400bps
IR Frequency 38 -56 KHz
Dimensions: 4 3/4 x 3 1/8 x 1 1/8 inches
Weight: 9.88 oz
