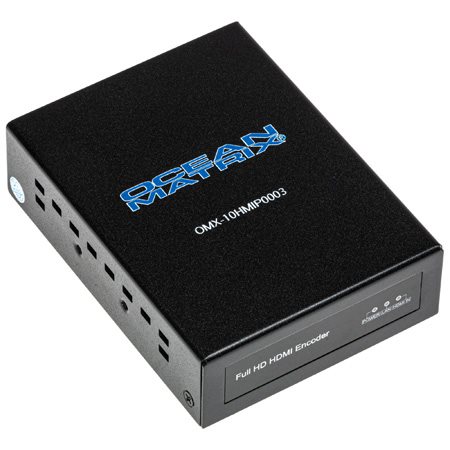

Ocean Matrix OMX-10HMIP0003 H.264 1080P AV Over IP Full HD HDMI Encoder

The Ocean Matrix OMX-10HMIP0003 H.264 1080P HDMI encoder converts incoming video signals up to 1080p@60Hz with embedded audio, to high-definition H.264 for full duplex transmission up to 328 feet. This multi-featured encoder supports multiple protocols, web-based system configuration and management, easy one-button reset and multicasting in a small, easily concealable steel enclosure.

Part Number: OMX-10HMIP0003 | $249.95

Features:

H.264 Encoding
3 LED Indicators for Power, LAN and HDMI
Web Interface Management
Image Parameter Settings
Custom Resolution Settings
Multi-Streaming Output
OSD Settings
Supports VLC, RTMP, & NVR Protocols
Black Powder-Coated Steel Enclosure
FCC, CE Certified

Item Includes:

1-12VDC/1A Power Supply, CD, 2 Brackets, 4 Screws

Warranty:

1 Year

Maximum Transmission Distance: Full Duplex 328 Feet over Cat5e/6
Supported Protocols: UDP, HTTP, RTSP, RTMP, ONVIF
CBR/VBR Rate: 16Kbps - 16Mbps
Video Resolutions: up to 720p, 1080p@60HZ HD
Audio Format: MPEG1 Audio Layer 2
Dimensions: 4 1/8 x 3 1/8 x 1 1/8 Inches
Weight: 9.6 oz

Technical Support

Downloadable Ocean Matrix Warranty Card

Download the Manual (PDF)

Download the Quick Start Guide
