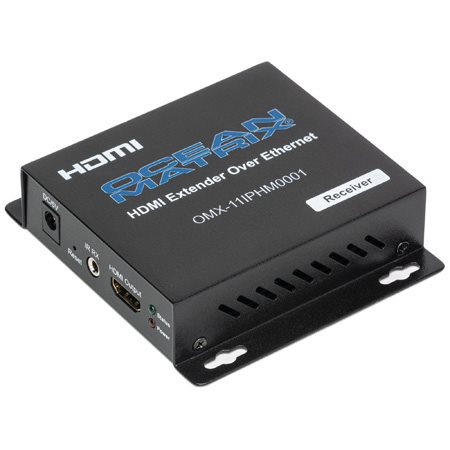

Ocean Matrix OMX-11IPHM0001 1080P HDMI Over IP Extender with IR Receiver ONLY

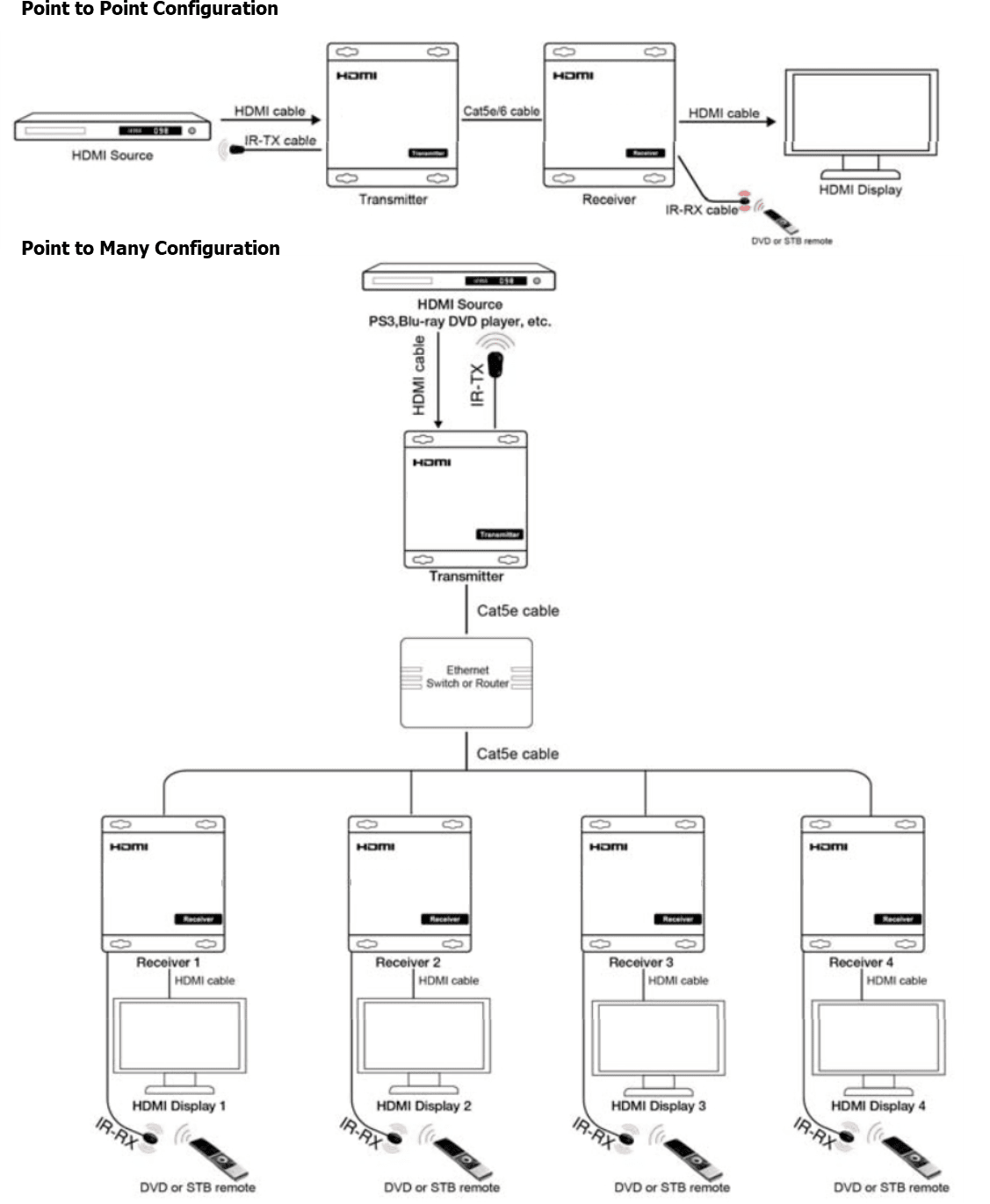

The Ocean Matrix OMX-11IPHM0001 HDMI Extender Over IP Receiver receives 1080p@60Hz HDMI video and 2-channel audio signals up to 394 feet over single Cat5e/6 cable for point-to-point delivery. Features include wide-band IR remote control of source devices and cascade capability for point-to-many and many-to-many setups when used with an Ethernet switch.

Part Number: OMX-11IPHM0001

Features:

Supports up to 1080p video, Plus 2-Channel Audio
Plug and Play Operation - No Programming Required for One-to-One Setups

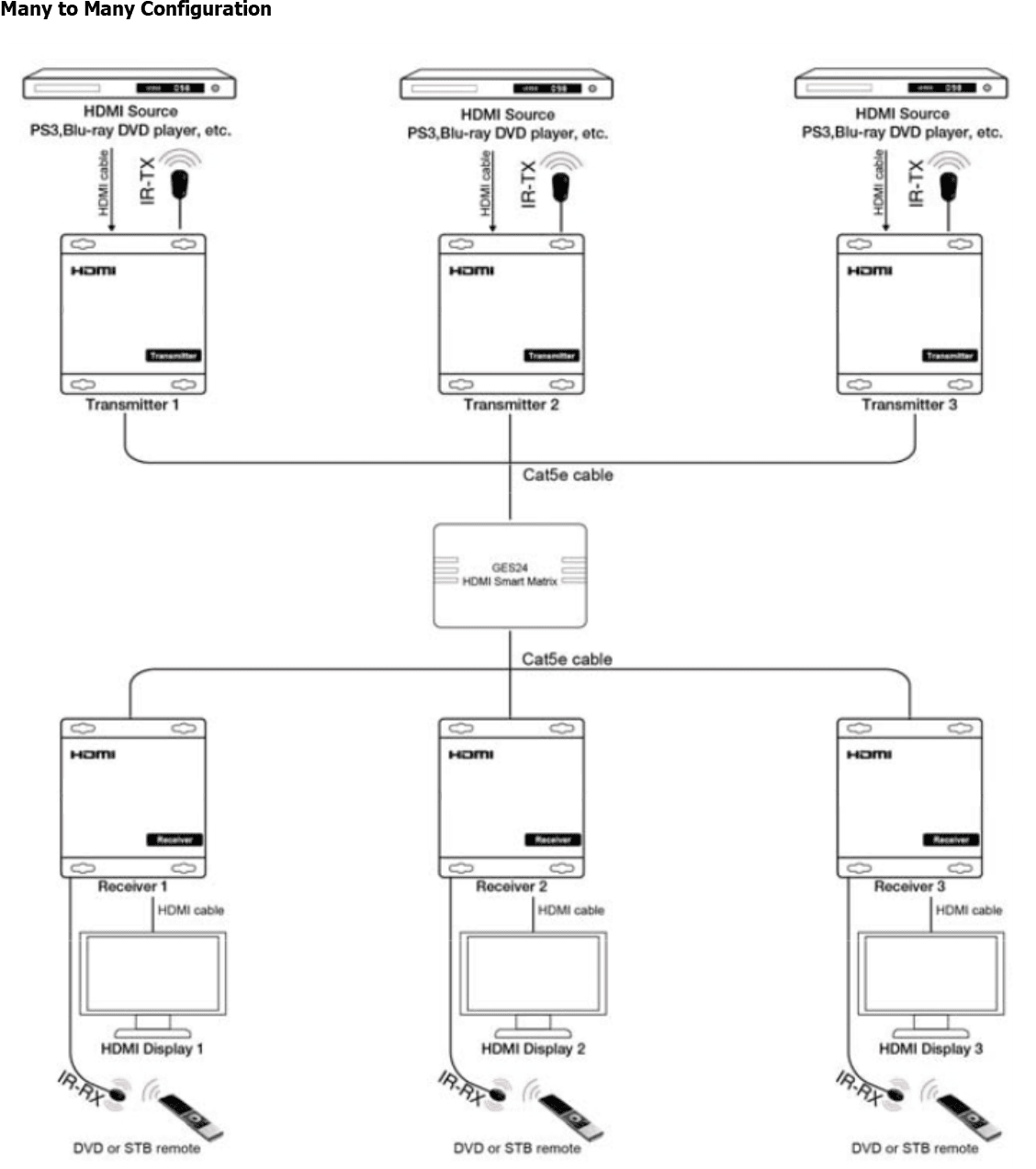

Use Ethernet Switches for Multiple Layered Cascade Applications
HDCP Compliant
Supports TCP/IP Protocol
Black Powder-Coated Steel Cabinet
CE and FCC Certified

Item Includes:

1-5VDC/1A Power Supply, IR-TX and IR-Ext Cables

Warranty:

1 Year

Transmission Distance: 394 feet/120m over Cat5e/6
Video Format DTV/HDTV:480i/576i/480P/576P/720P/1080P
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Support Video Format DTV/HDTV:480i/576i/480P/576P/720P/1080P
Video Output HDMI
IR Frequency 38kHz-56kHz
Power Consumption: 3W
Dimensions: 4.08 x 3.68 x 1 inches
Weight: 7.76 oz

Technical Support

Downloadable Ocean Matrix Warranty Card Download the Manual (PDF)
