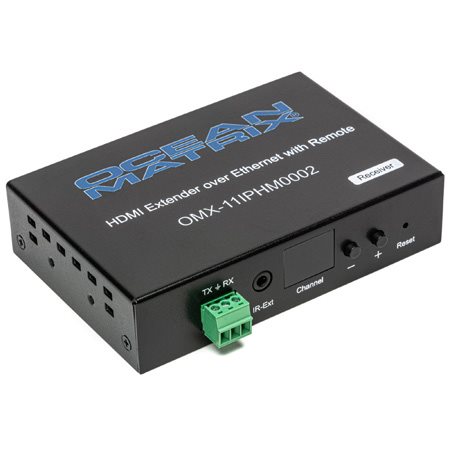

Ocean Matrix OMX-11IPHM0002 H.264 1080p/60 HDMI Over IP Extender with PoE RS-232 IR - Receiver ONLY

Part Number: OMX-11IPHM0002  |  $169.95

The Ocean Matrix OMX-11IPHM0002 H.264 HDMI Over IP Receiver converts compressed H.264 video to HDMI 1080p@60Hz and audio up to 394 feet over single Cat5e/6 cable for point-to-point delivery. This receiver supports bidirectional IR control, PoE (power over Ethernet) when used with a PoE switch and point-to-many and many-to-many set ups when used with an Ethernet switch.

Features:
  • Low Bandwidth
  • Local or PoE Power Input: Includes 5V/1A power supply; PoE compliant when using a PoE Switch
  • Supports Dynamic Host Configuration Protocol (DHCP)
  • Wide-Band IR Control (38khz to 56khz)
  • Bidirectional RS232
  • Cascade Capability
  • LPCM Audio Format
  • PoE 802.3 and HDCP Compliant
  • Black Powder-Coated Steel Cabinet
Item Includes:
  • 1-5VDC/1A Power Supply, IR-RX and IR-Ext with mounting pads, Remote Control, 2 Brackets, 2 Screws, 1 Phoenix Plug for RS232 Cable Termination
Warranty:
  • 1 Year
Specifications
  • Protocol H.264 encoder over TCP/IP
  • Transmission Distance: 394 feet/120m over Cat5e/6
  • Video format 480i/480p/576i/576p/720p/1080i/1080p@60HZ
  • Audio format LPCM, Audio sampling rate 48KHZ
  • Streaming Bit Rate 15Mbps
  • Default Baud Rate 2400bps
  • IR Frequency 38 -56 KHz
  • Dimensions: 4 3/4 x 3 1/8 x 1 1/8 inches
  • Weight: 9.88 oz
