Ocean Matrix OMX-13HMHM0001 1080p HDMI 4 x 1 Multi-Viewer with IR Control

OMX-13HMHM0001 1.jpg
OMX-13HMHM0001 2.jpg
OMX-13HMHM0001 3.jpg
OMX-13HMHM0001 4.jpg
OMX-13HMHM0001 5.jpg
Part Number: OMX-13HMHM0001  |  $189.95

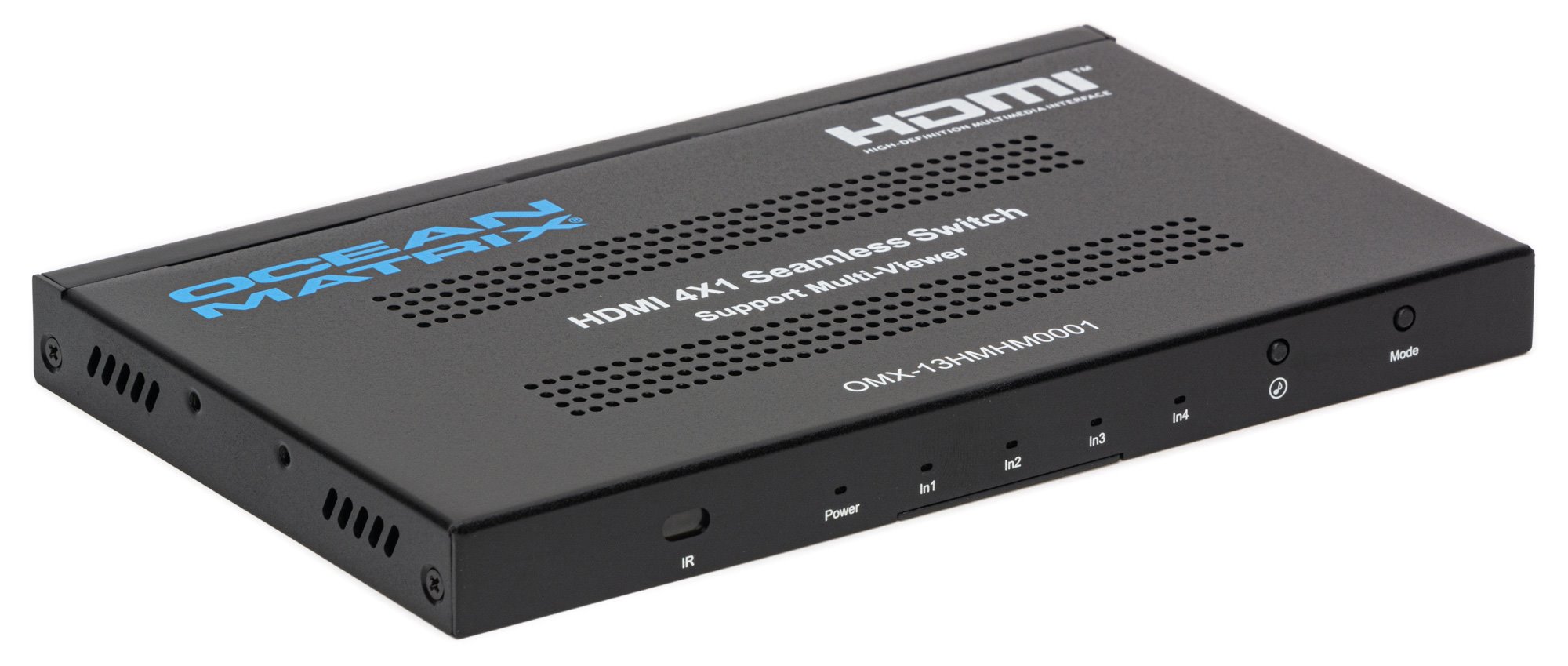

The Ocean Matrix OMX-13HMHM0001 4X1 Multi-Viewer sends four 1080p/60 HDMI video signals to an HDMI monitor for up to four displays on one screen. The remote control provides twelve different possible screen configurations, seamless switching among the four outputs, muting, and an 1080p/720p switch.  Housed in a rugged, powder-coated steel cabinet.

  • 4 Channels of HDMI Signals
  • IR Sensor for Remote Control
  • Video Resolution up to 1080p@60HZ
  • Audio and Mode Switch Buttons
  • Power and Input LED Indicators
  • Black Powder-Coated Steel Cabinet
  • HDCP 1.4 Compliant
  • FCC, CE Certified
Item Includes:

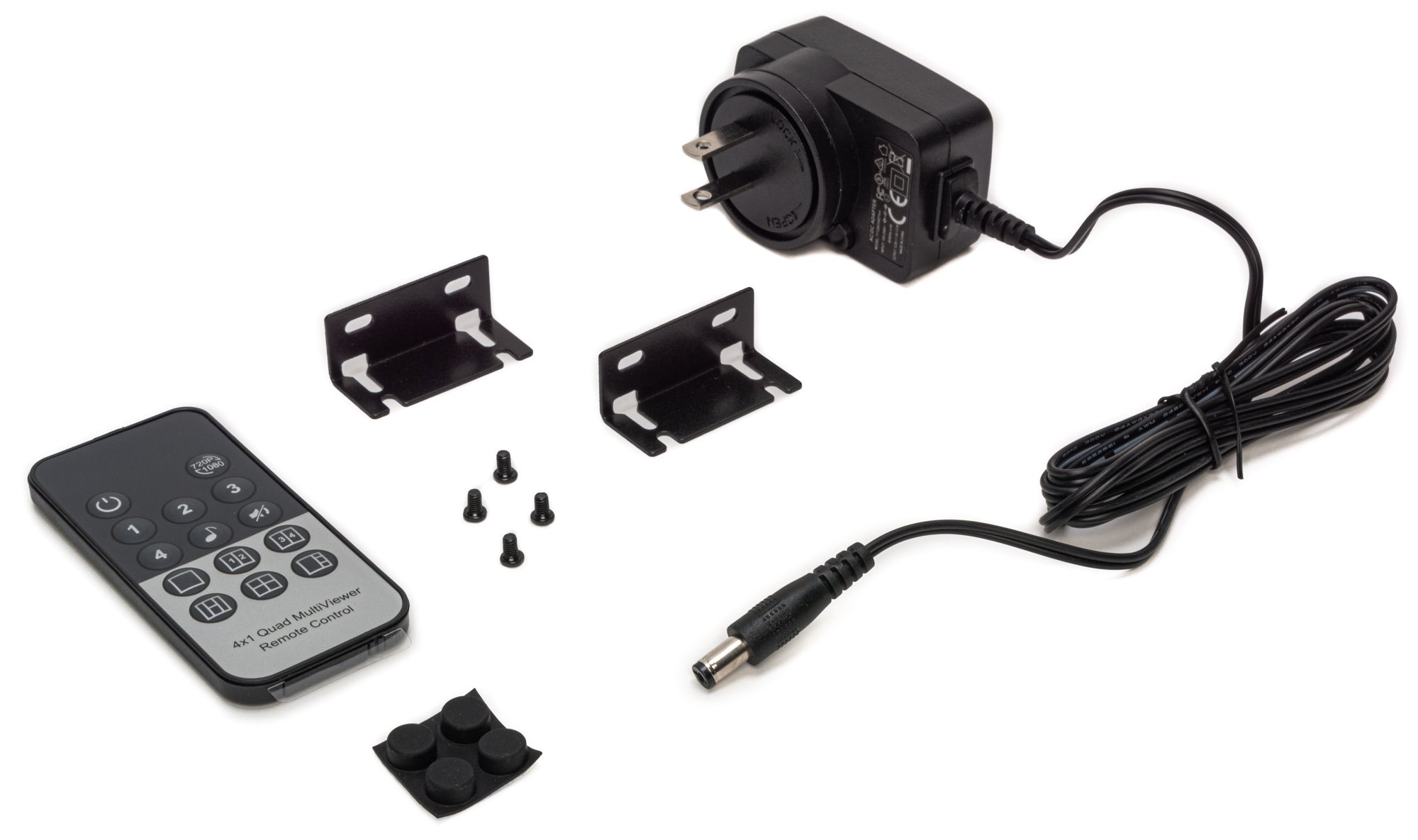

  • 1-12VDC/1A Power Supply, 1-Remote Control, 2-Mounting Brackets, 4-Screws, 4-Rubber Feet
  • 1 Year
  • Video Resolution: 50Hz 576i; 576P; 720P; 1080i; 1080P 60Hz / 59.94Hz 480i; 480P; 720P; 1080P; 30/29.97/24/25Hz 1080P
  • Audio Format: PCM 2.0
  • Transmission Distance: Input up to 26.25 Ft / Output up to 49.21 Ft
  • Bandwidth Frequency: 4.95Gbps
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Dimensions: 7 1/2 x 4 1/2 x 5/8 Inches
  • Weight Each Unit: 1.14 lb
