Ocean Matrix OMX-16HMHM0001 HDMI 2x2 Video Wall Processor

OMX-16HMHM0001 1.jpg
OMX-16HMHM0001 2.jpg
OMX-16HMHM0001 3.jpg
OMX-16HMHM0001 4.jpg
OMX-16HMHM0001 5.jpg
Part Number: OMX-16HMHM0001  |  $307.49

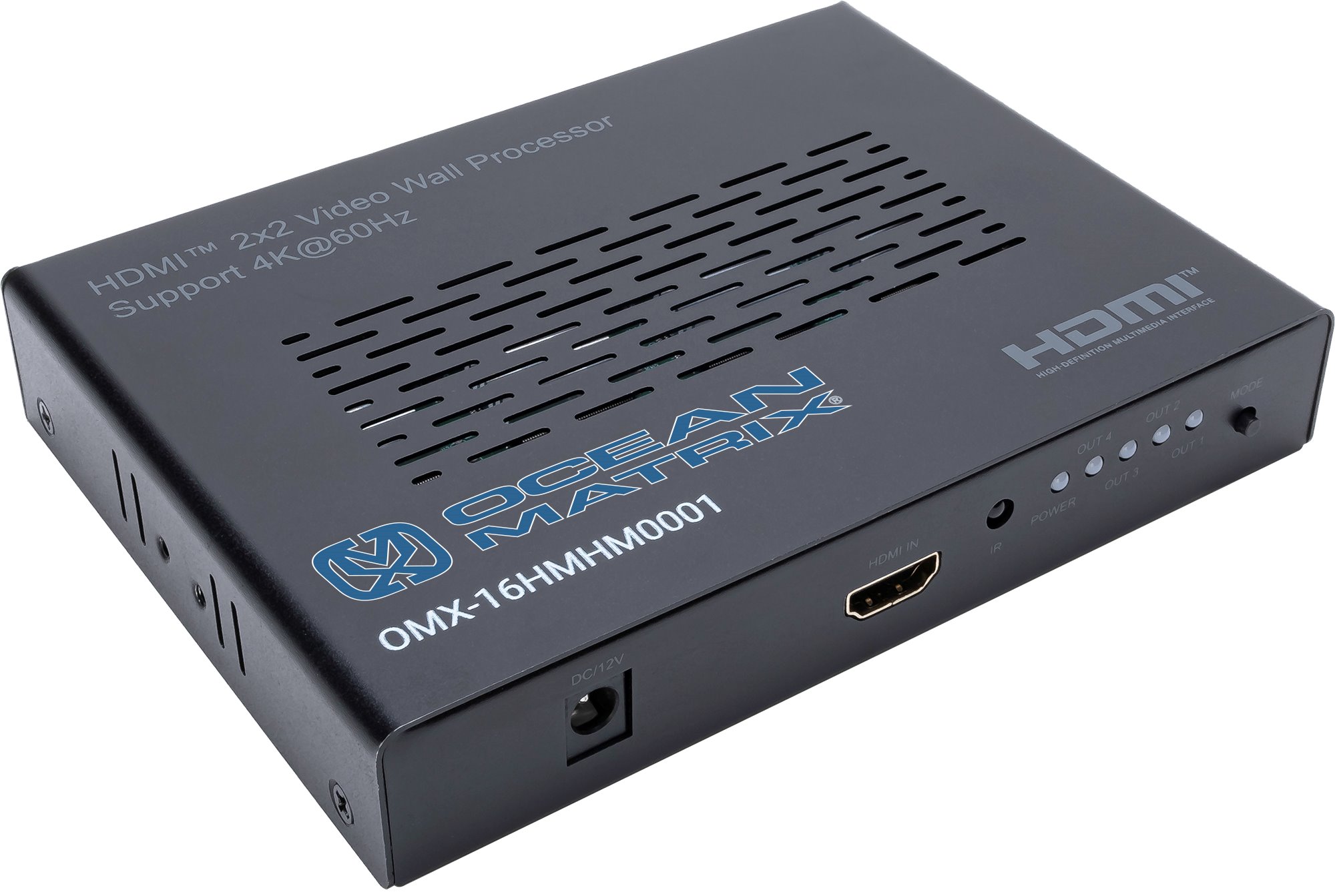

The Ocean Matrix OMX-16HMHM0001 is a 2x2 HDMI video wall processor that supports devices with resolutions up to 4K@60Hz. With 8 video wall configurations built into the processor, the unit allows users to transform their space without compromise. OMX-16HMHM0001 users can view display mode and port information via the LED indicators on the front of the unit, without having to navigate various menus." For further optimization of video walls, the processor allows for 180° image rotation on all outputs independently.


Features:

  • Supports (1) HDMI Input Resolution up to 4K@60Hz YUV 4:4:4

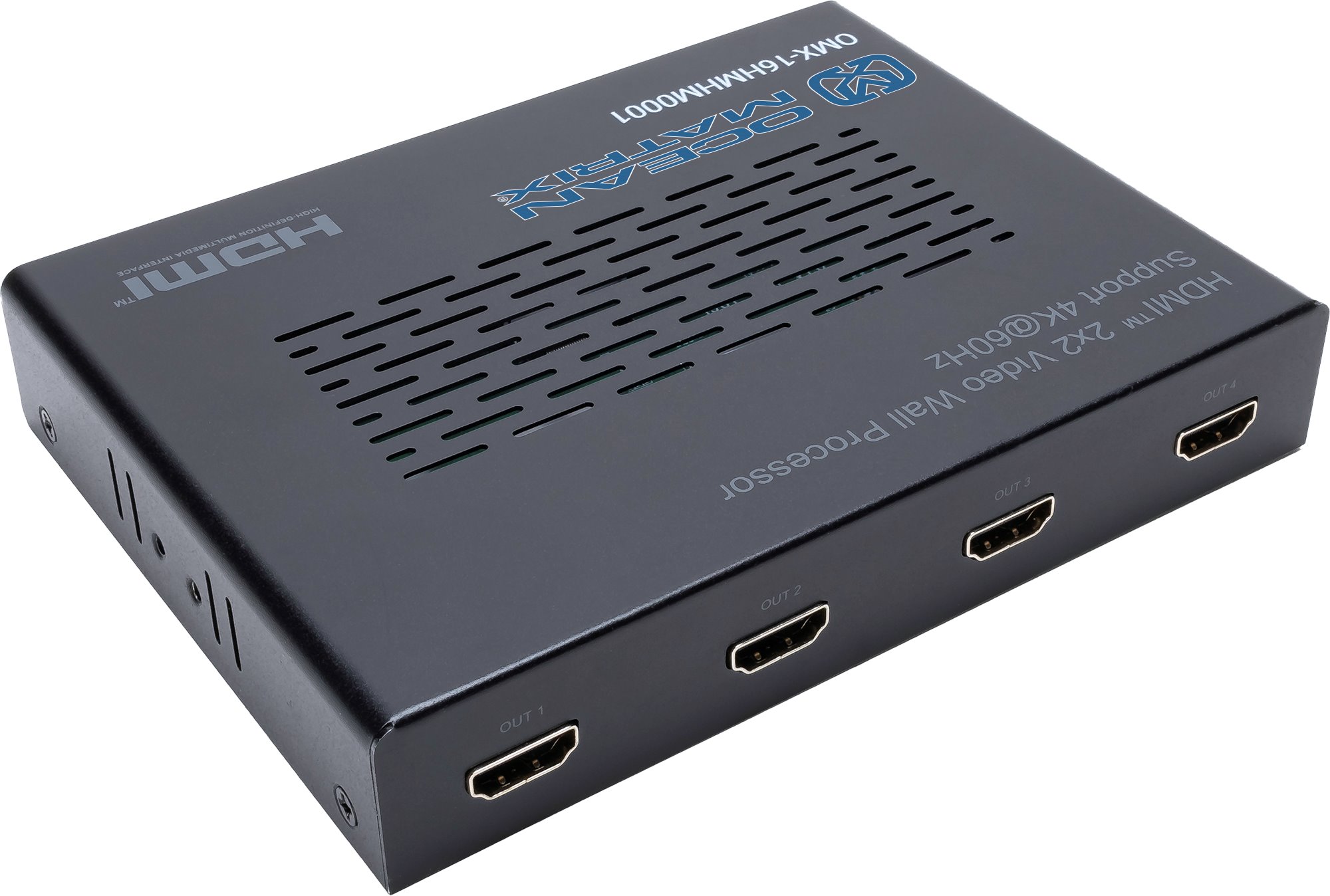

  • Supports (4) HDMI Outputs Resolution up to 1080p@60Hz
  • 8 Video Wall Configurations

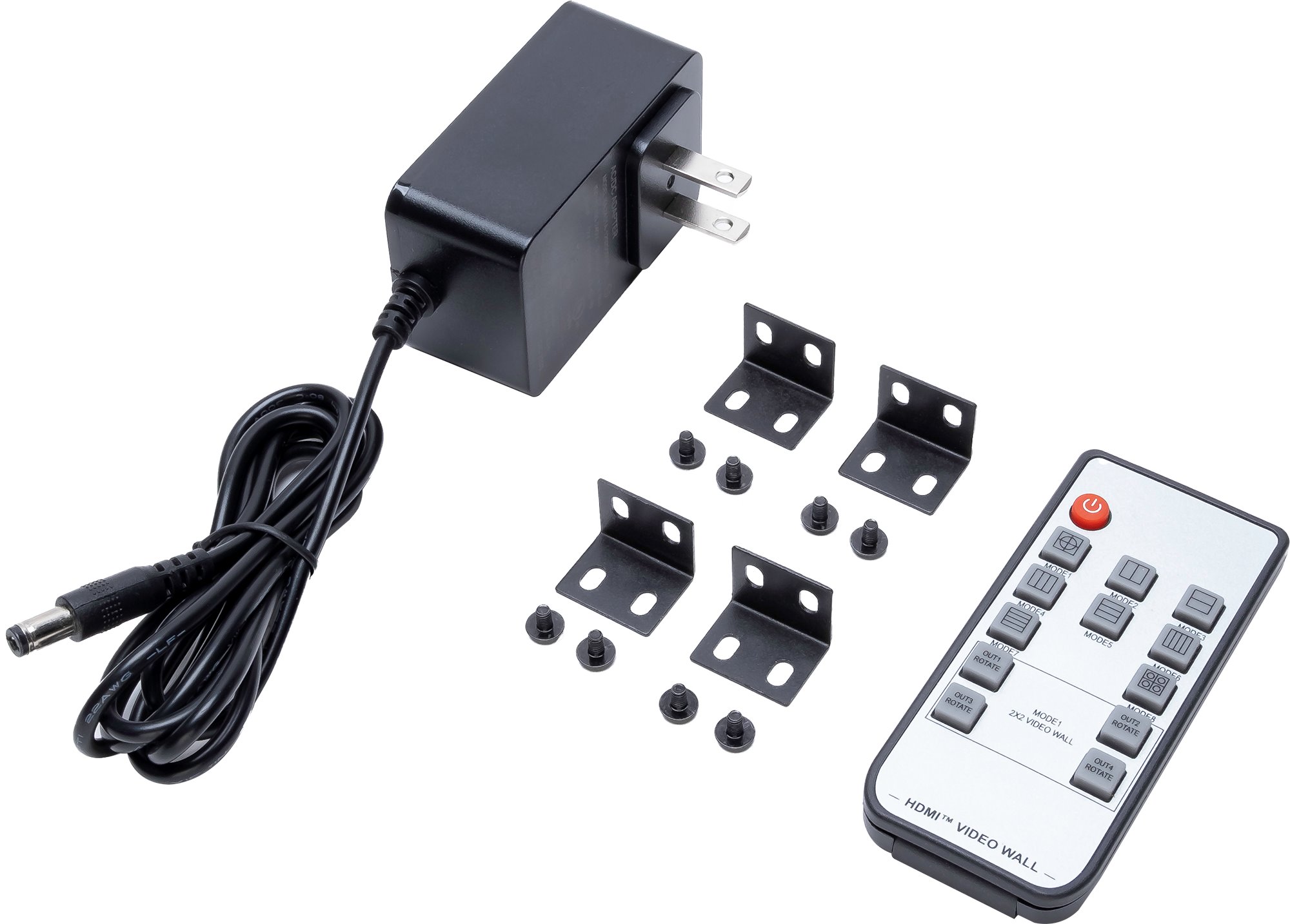

  • Features Various Display Modes Selectable Via Front Button And Remote Control To Combine Up To 4 Flat Panel LCD TVs Into One Larger Display

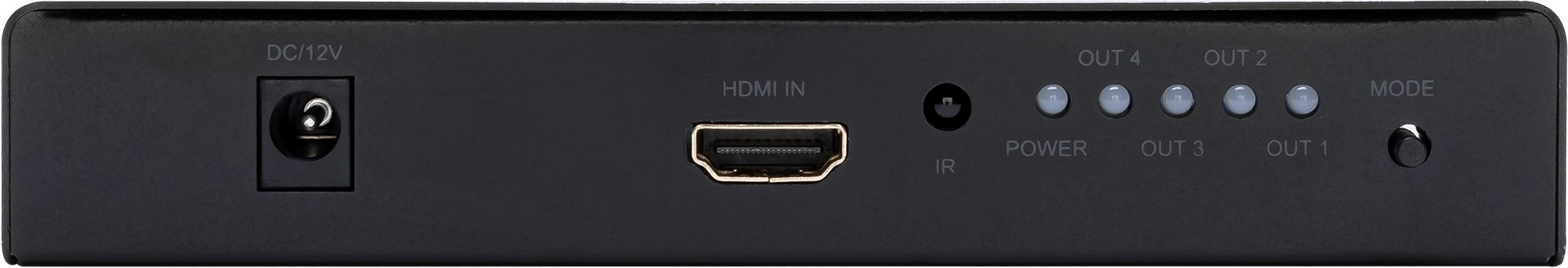

  • Features Front LED Indicators for Mode and Port Information
  • Uses a Power-Off Memory Function to Keep the Last Setup Status When Powered On Next
  • Features Independent Output Rotation (180°) for Each HDMI Output Port




Specifications
  • Input Ports: 1 x HDMI

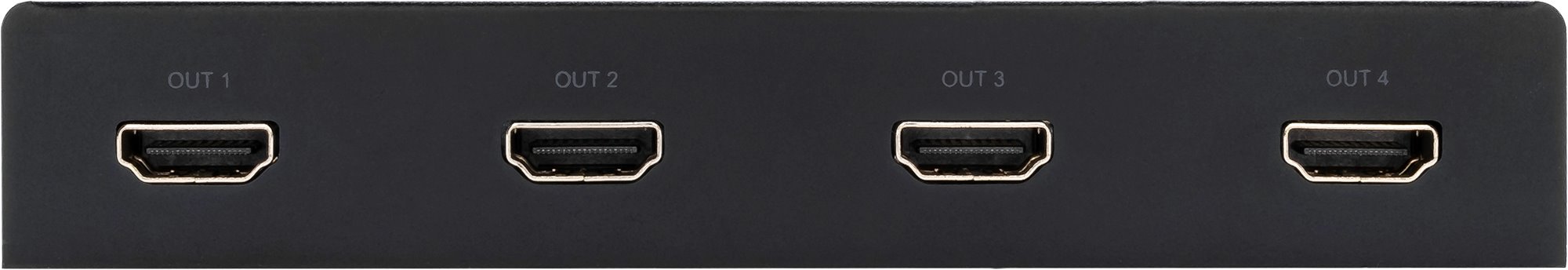

  • Output Ports: 4 x HDMI
  • Vertical Frequency Rate: 50/60Hz
  • Video Amplifier Bandwidth: 6.0Gbps / 600MHz per Channel (18Gbps All Channels)
  • Interlaced (50&60Hz): 480i, 576i, 1080i
  • Progressive (50&60Hz): 480p, 576p, 720p, 1080p, 4K@24/25/30Hz, 4K@50/60Hz
  • Operating Temperature: 32°F to 158°F (0°C to 70°C)
  • Storage Humidity: 5% to 90% RH Non-Condensation
  • Power Consumption (Max): 12W
  • Processor and Power Supply Certifications: FCC, CE, RoHS
  • Dimensions (LxWxH): 5.88 x 4.38 x 1" (151 x 111 x 26.5mm)
  • Net Weight: 13.2 oz (374g)
