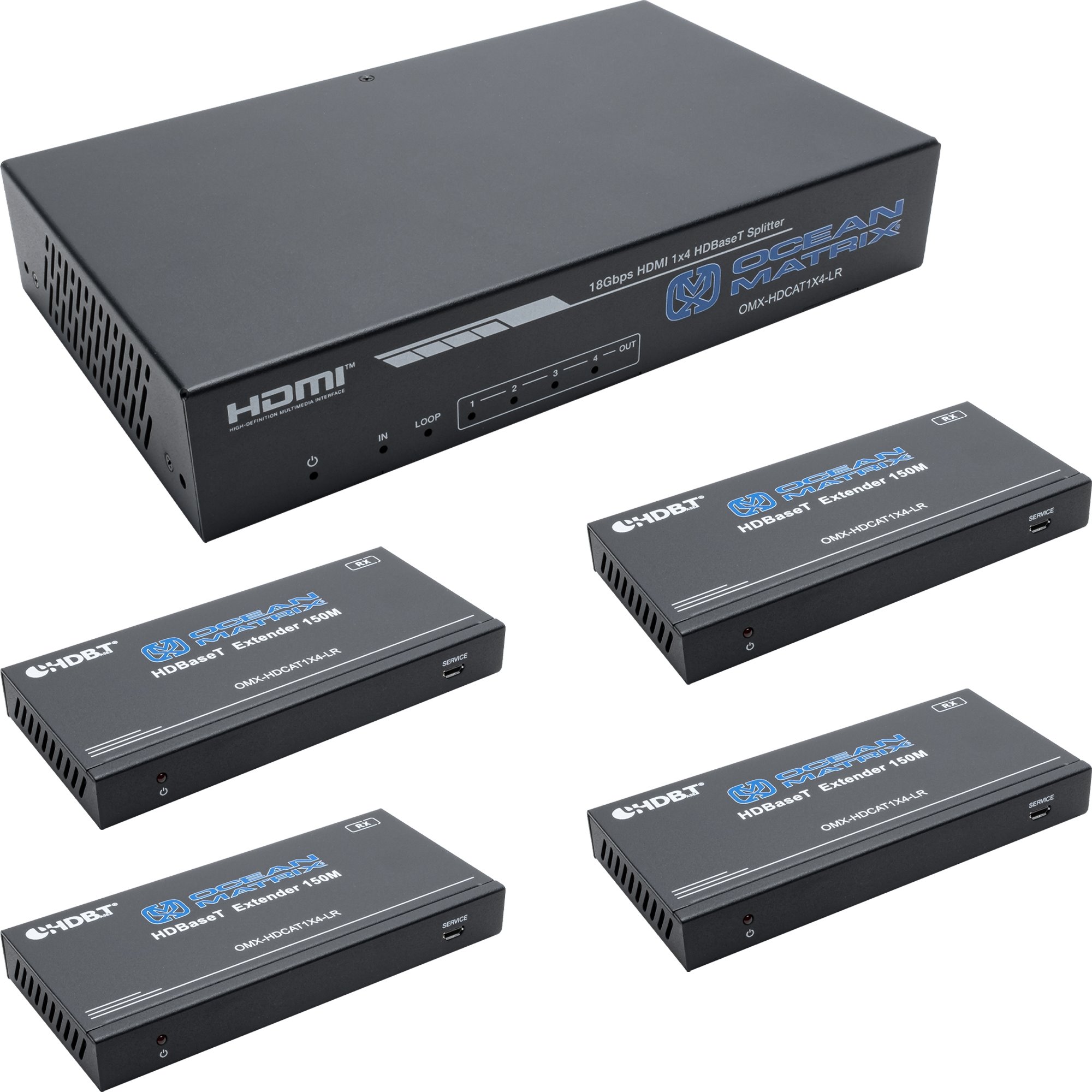

Ocean Matrix OMX-HDCAT1X4-LR 1x4 HDBaseT Splitter Extender Set — 4K60 up to 393ft/120m

The Ocean Matrix OMX-HDCAT1X4-LR is a 1x4 HDMI HDBaseT splitter extender set that extends 4K60 signals up to 393ft. The splitter can distribute 1 source signal to any 4 display devices with its 4 HDBaseT outputs, and also features an HDMI loop out on the transmitter for local monitoring. The OMX-HDCAT1X4 also supports HDMI, Coaxial, and Analog audio extraction as well as RS-232 and EDID management.

Part Number: OMX-HDCAT1X4-LR | $899.95

Features:

Supports Video Resolutions up to 4K2K@60Hz 4:4:4
HDMI 2.0b, HDCP 2.2 and HDCP 1.x Compliant
Supports EDID Management
18 Gbps Video Bandwidth
Supports HDR, HDR10+, HLG and Dolby Vision
7.1CH HD Audio Pass-through
Digital and Analog Audio De-embedded Output
Extends Signal Transmission Distance up to 120 Meters at Resolutions of 4K2K@60Hz, and 150 Meters at 1080p@60Hz via a Single CAT6/6a/7 Cable

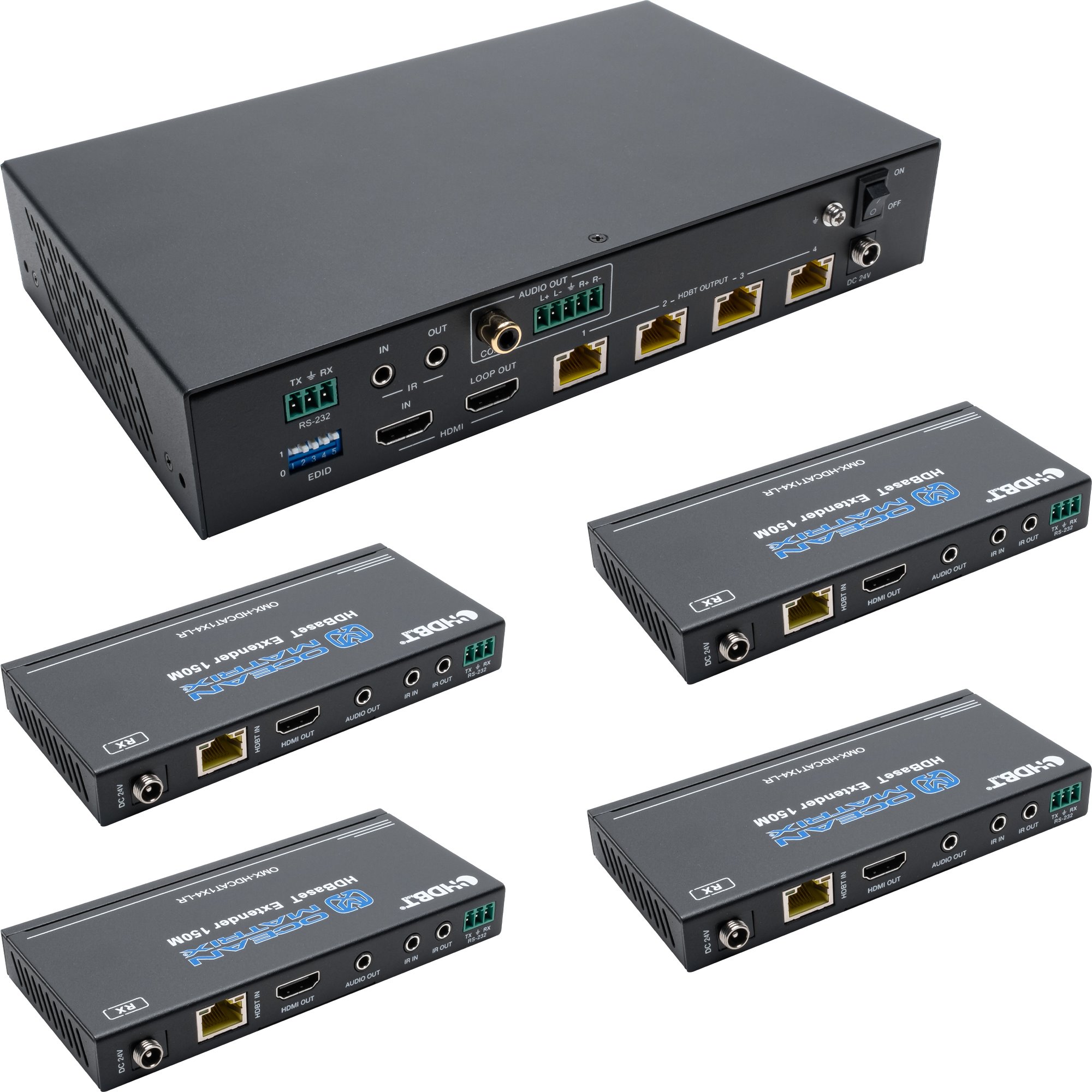

1 HDMI Input, 1 HDMI Loop Output, and 4 HDBaseT Outputs
IR & RS-232 Routed to HDBaseT Output
One-way POC Functionality (Transmitter powers the receivers)
Compact Design for Easy and Flexible Installation

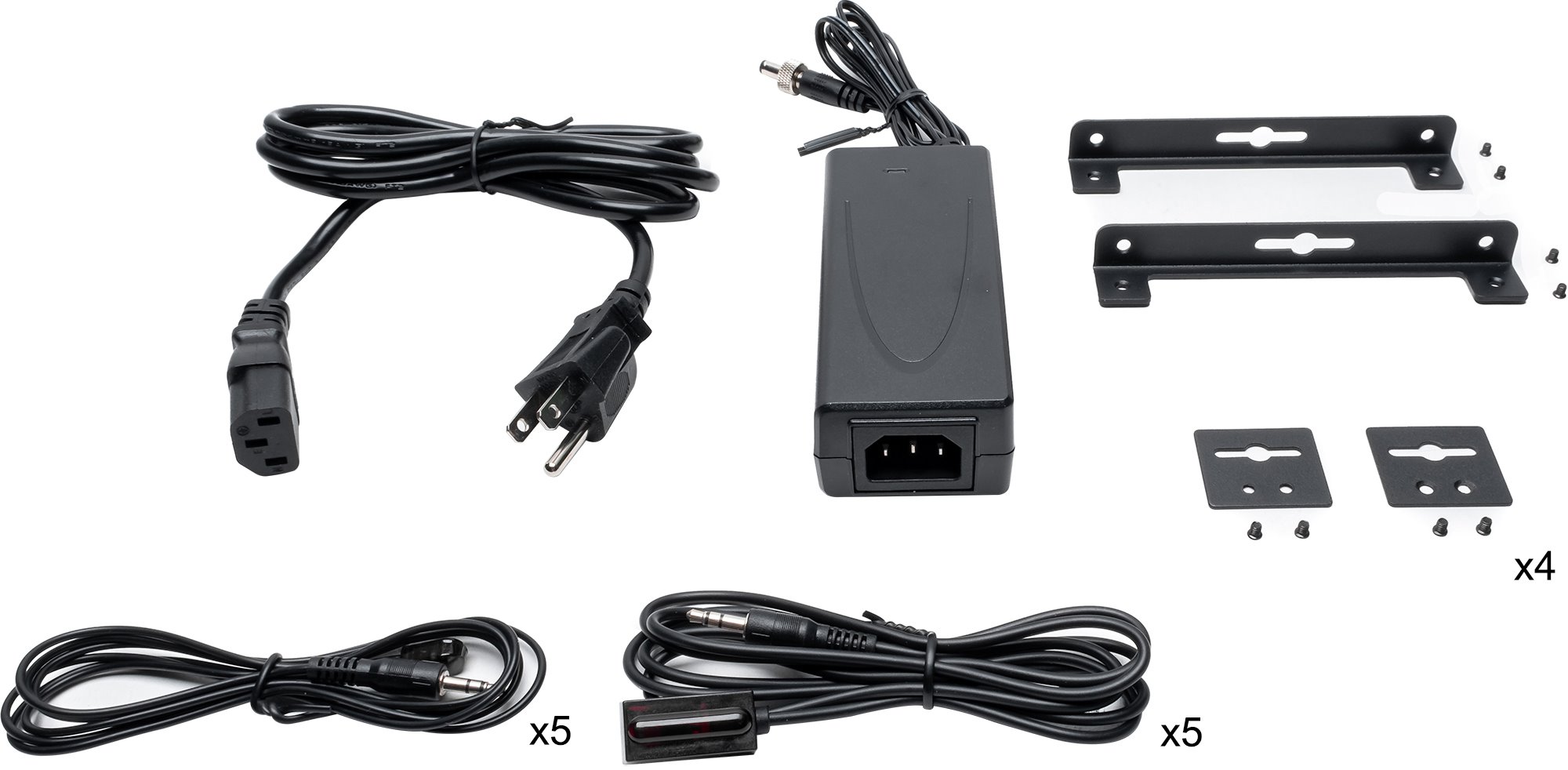

Item Includes:

1 x Transmitter

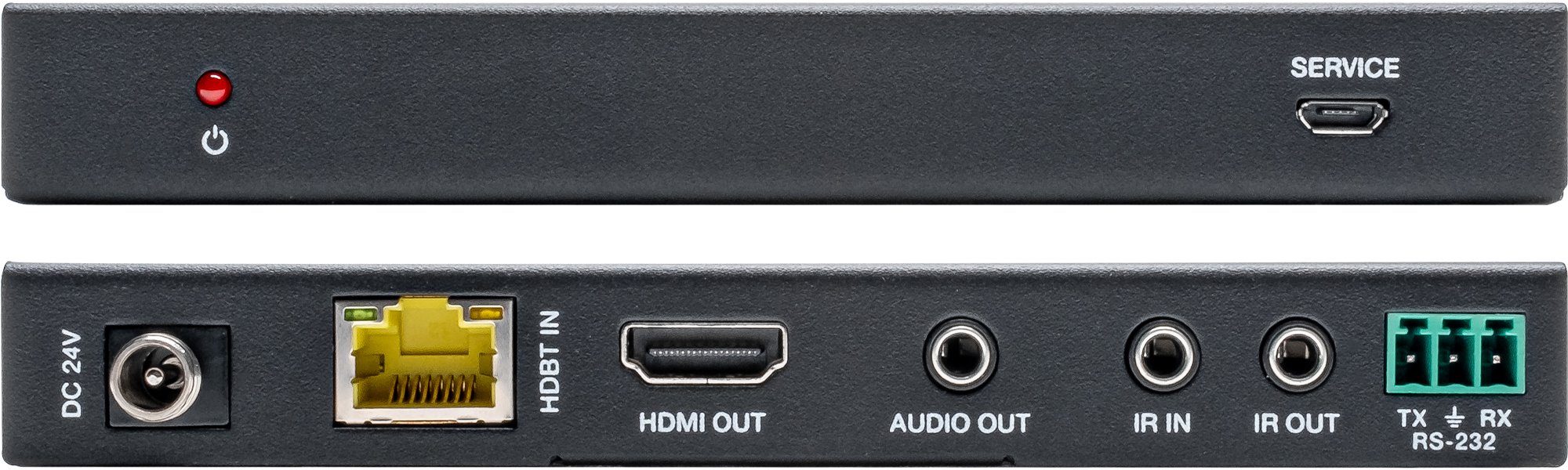

4 x Receiver
5 x IR Blaster Cable (1.5 meters)
5 x 20K-60KHz IR Receiver Cable (1.5 meters)
5 x 3-pin Phoenix Connector
1 x 5-pin Phoenix Connector
10 x Mounting Ear
1 x 24V/2.7A DC Locking Power Adapter

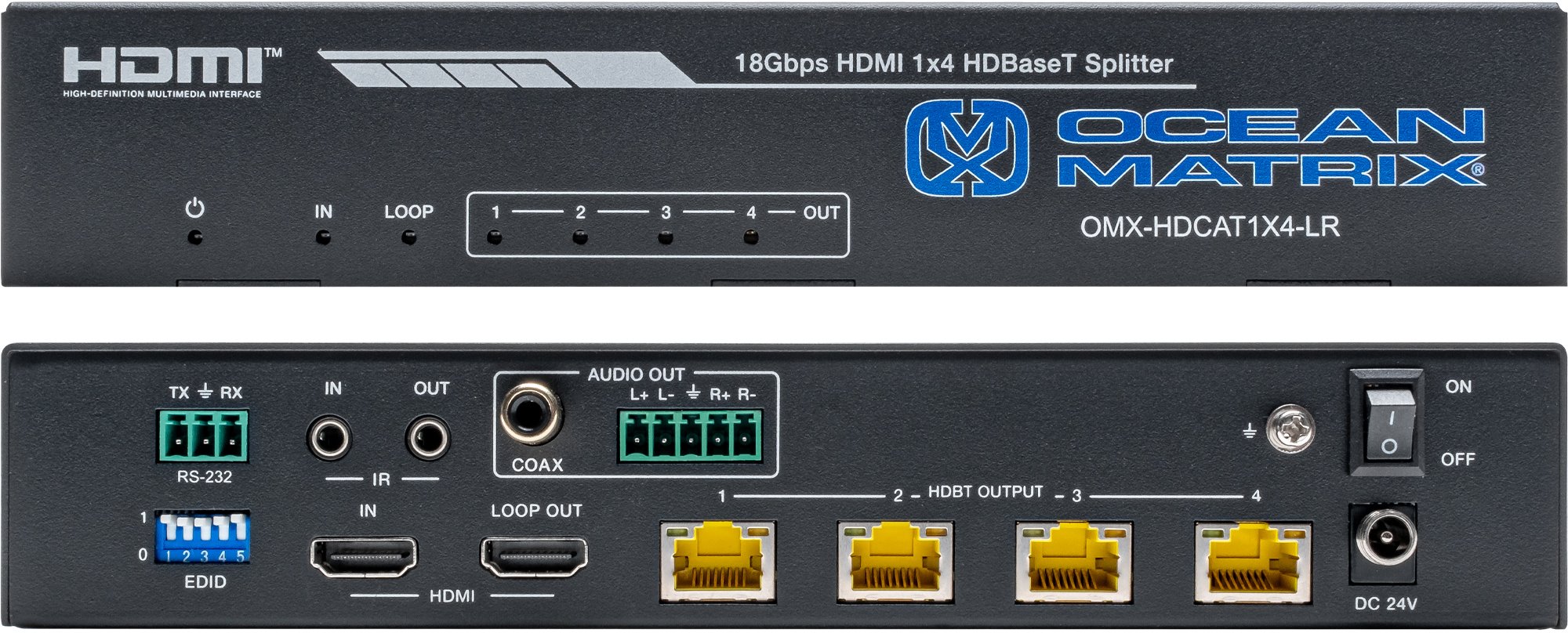

Input: 1 x HDMI Type A (19-pin Female)
Outputs: 1 x HDMI Type A (19-pin female) 4 x CAT OUT [RJ45, 8-pin female] 1 x Coaxial Audio OUT [RCA] 1 x L/R Audio OUT [3.5mm Stereo Mini-jack]
Control Inputs and Outputs: 1 x RS-232 (3-pin Phoenix Connector) 1 x EDID DIP switch [5-pin] 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack]
HDMI Compliance: HDMI 2.0
HDCP Compliance: HDCP 2.2 / HDCP 1.4
Video Bandwidth: 18Gbps
Video Resolution: Up to 4K2K@60Hz 4:4:4
Color Space: RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
HDR: Supports HDR10, HDR10+, HLG & Dolby Vision
HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, & DTS-X
Coaxial Audio Formats: PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Audio Formats: PCM 2.0CH
Transmission Distance: 4K2K@60Hz, 120m / 1080P@60Hz, 150m
Dimensions (LxWxH): Transmitter: 8.69 x 5.13 x 1.59" Receiver: 5.52 x 2.57 x 0.07"
Weight: Transmitter: 1.91lbs Receiver: 0.55lbs
Power Consumption: 35W
Operating Temperature: 32-104°F (0-40°C)
Storage Temperature: -4-140°F (-20-60°C)
