Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Extender / HDMI to CAT5/CAT6 Converter

HDMI over Ethernet is a technology that allows HDMI audio and video signals to be transmitted over standard Ethernet cables or local area networks (LANs). It enables the extension of HDMI signals beyond the typical maximum cable length limitations.

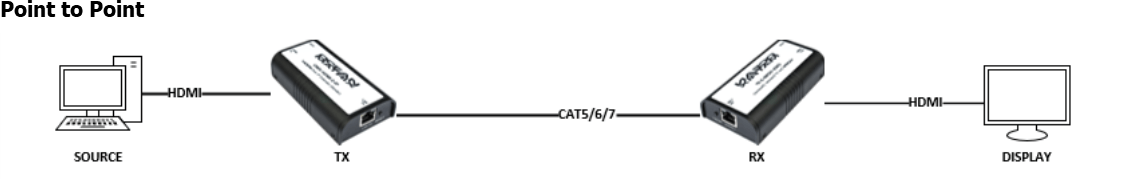

The HDMI over Ethernet system typically consists of two main components: a transmitter and a receiver. The transmitter converts the HDMI signal into a data stream for transmission over an Ethernet. The receiver is connected to the display or television at the receiving end. It decodes the data stream and converts it back to an HDMI signal for viewing.

HDMI over ethernet offers longer cable runs than standard HDMI cables, allowing you to extend the HDMI signal over a much greater distance. This is useful in larger spaces, such as conference rooms and auditoriums, as well as in home theater setups.

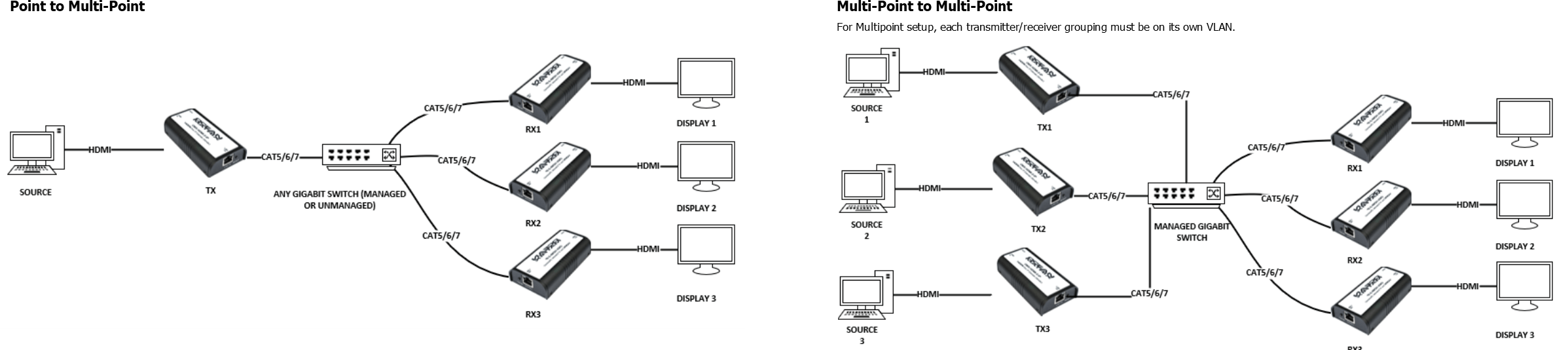

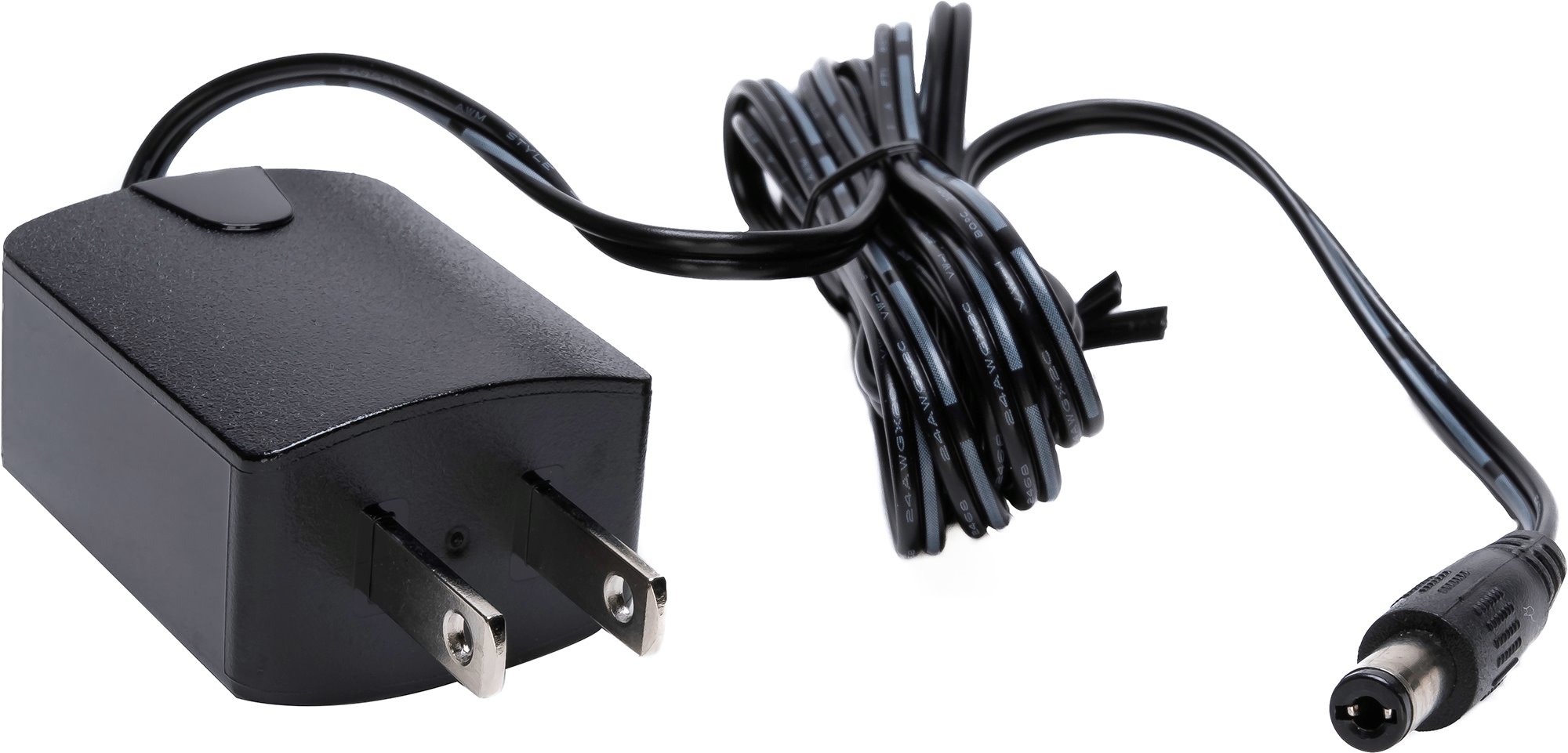

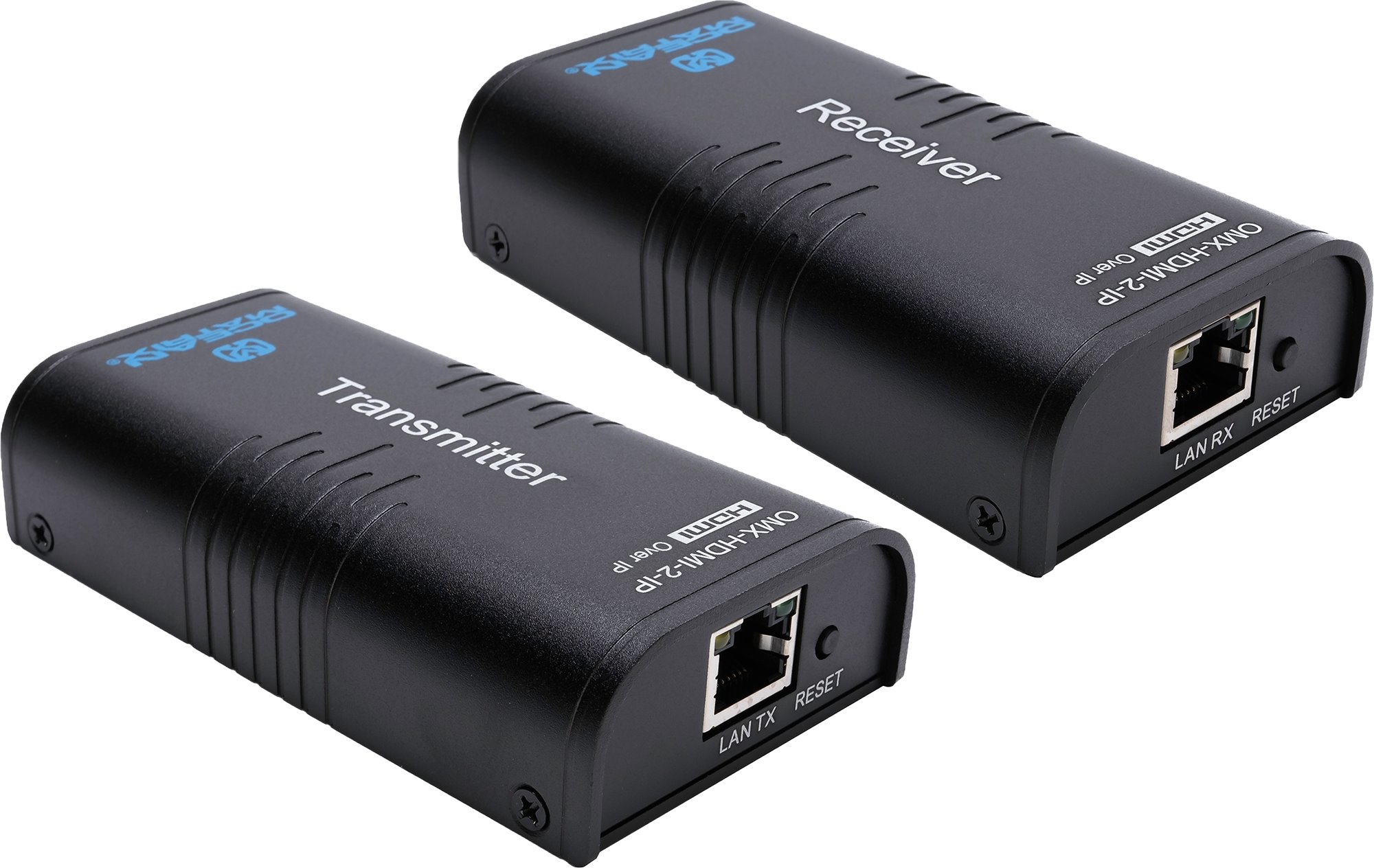

The Ocean Matrix OMX-HDMI-2-IP converter and ethernet extender sends HDMI over a local area network (LAN) by first converting the signal from HDMI to TCP/IP. One transmitter can pair with up to 8 receivers over one network with a VLAN switch. Includes transmitter, receiver, and two 5VAC/DC switching power supplies.



Part Number: OMX-HDMI-2-IP  |  $130.00
  • HDCP Support: HDCP1.2
  • Input HDMI resolution: 480i@60Hz; 480p@60Hz; 576i@50Hz; 576p@50Hz; 720p@50/60Hz; 1080i@50/60Hz; 1080p@50/60Hz;
  • Output HDMI resolution: 480p@60Hz; 576p@50Hz; 720p@50/60Hz; 1080p@50/60Hz
  • Supported Video Color Formats: 24 Bit/Deep color; 30 Bit/Deep color; 36 Bit Deep Color
  • Max transmission rate: 10.2Gbps
  • Network Bandwidth Utilized: 80Mbs
  • Latency: 70ms
  • Audio signal transmission format: L/R stereo audio
  • TMDS signal: 0.5-1.5Vp-p (TMDS)
  • DDC signal: 5Vp-p(TTL)
  • Input cable length: 5m (AWG26 HDMI1.3 standard cable)
  • Output cable length: 5m (AWG26 HDMI1.3 standard cable)
  • Transmission medium
  • Connector Type: RJ45
  • Twisted Pair Interface: Cat5e/6
  • Transmission distance: Cat6 up to 120m (Cat5e up to 100m)
  • Cabling standards: TIA/EIA568 B
  • Power Supply: 5VDC/1A
  • Power comsumption: <3.6W
  • Dimensions (Tx or Rx Unit): 4.25"L x 2.25"W x 1.0"H
  • Weight: Tx/Rx Unit Each: 0.3 Lbs
