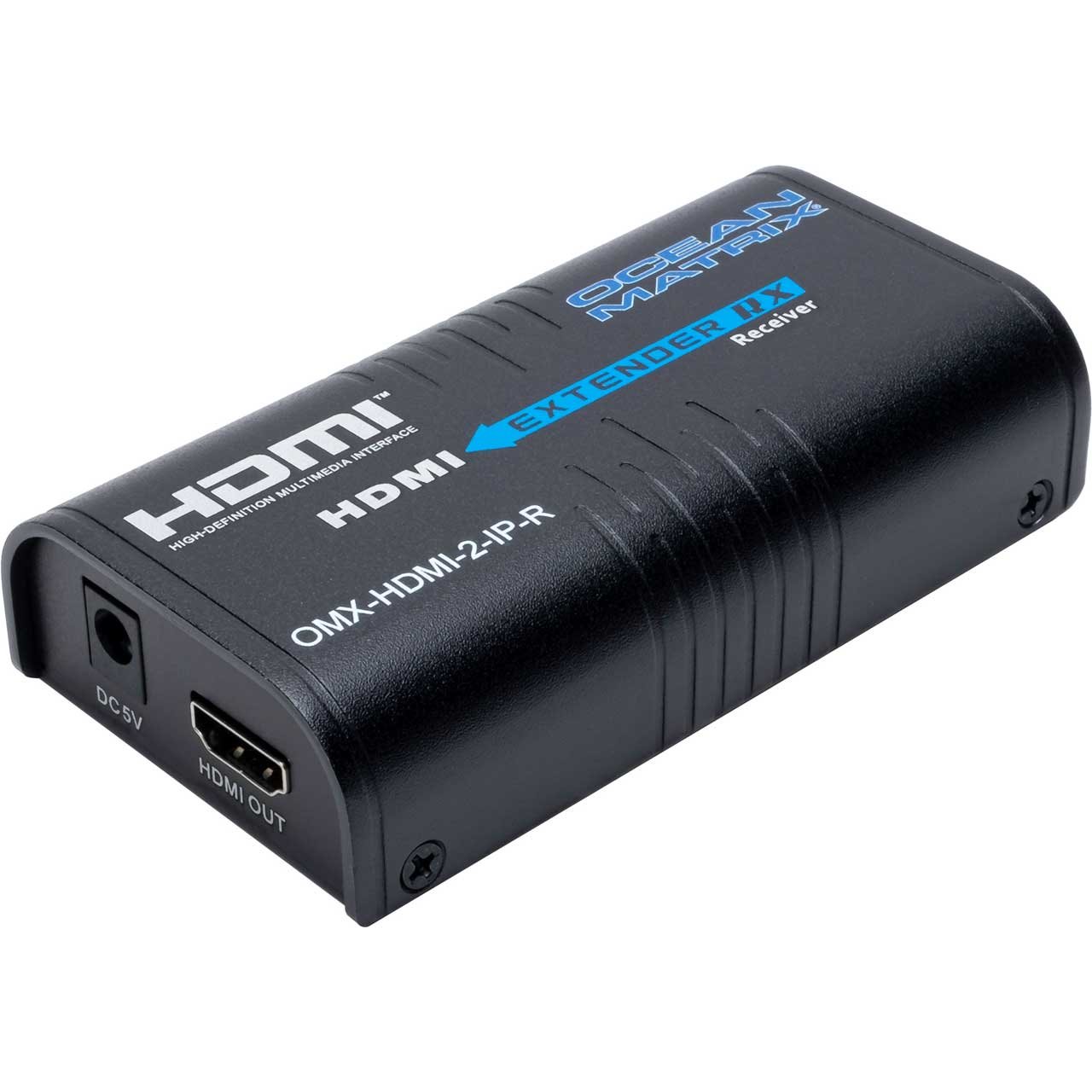

Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Extender / Receiver Only

Name: Ocean Matrix
Address: 812 Kings Highway, Saugerties, NY, 12477
Price range: $

Part Number: OMX-HDMI-2-IP-R | $79.95

Qty

The Ocean Matrix OMX-HDMI-2-IP-R is a receiver for the OMX-HDMI-2-IP converter/extender set up. The transmitter can pair with up to 8 receivers over one network with a VLAN switch.

Features:

Supports Multiple Receivers (up to 8) from a Single HDMI Extender / Transmitter
36 Bit Deep Color Support
May Also be Used as a Standard Point-to-Point (up to 120 meters) Transmit & Receive for On-Location Monitoring & Content Delivery
Supports DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD Audio Formats
Transmission Rate Supported:10.2Gbps
Robust Aluminum Housing

Item Includes:

Two 5.0V AC/DC Switching Power Supply

Specifications

HDCP Support: HDCP1.2
Input HDMI resolution: 480i@60Hz; 480p@60Hz; 576i@50Hz; 576p@50Hz; 720p@50/60Hz; 1080i@50/60Hz; 1080p@50/60Hz;
Output HDMI resolution: 480p@60Hz; 576p@50Hz; 720p@50/60Hz; 1080p@50/60Hz
Supported Video Color Formats: 24 Bit/Deep color; 30 Bit/Deep color; 36 Bit Deep Color
Support audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Max transmission rate: 10.2Gbps
Audio signal transmission format: L/R stereo audio
TMDS signal: 0.5-1.5Vp-p (TMDS)
DDC signal: 5Vp-p(TTL)
Input cable length: 5m (AWG26 HDMI1.3 standard cable)
Output cable length: 5m (AWG26 HDMI1.3 standard cable)
Transmission medium
Connector Type: RJ45
Twisted Pair Interface: Cat5e/6
Transmission distance: Cat6 up to 120m (Cat5e up to 100m)
Cabling standards: TIA/EIA568 B
Power Supply: 5VDC/1A
Power comsumption: <3.6W
Dimensions: 4.25"L x 2.25"W x 1.0"H
Weight: 0.3 Lbs
