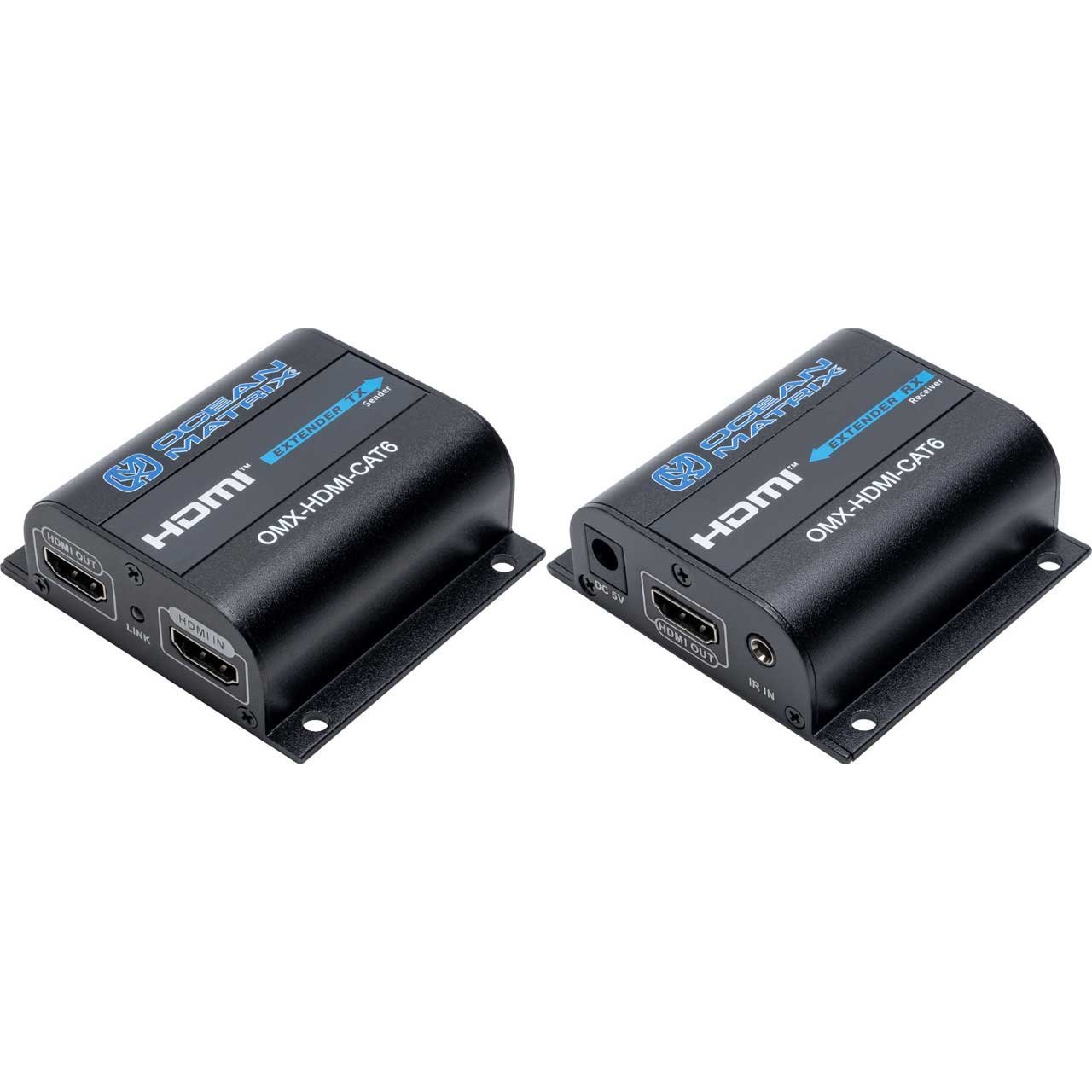

Ocean Matrix OMX-HDMI-CAT6 160 Foot 1080p HDMI Extender over Single Cat6 with Looping Out

Name: Ocean Matrix
Address: 812 Kings Highway, Saugerties, NY, 12477
Price range: $

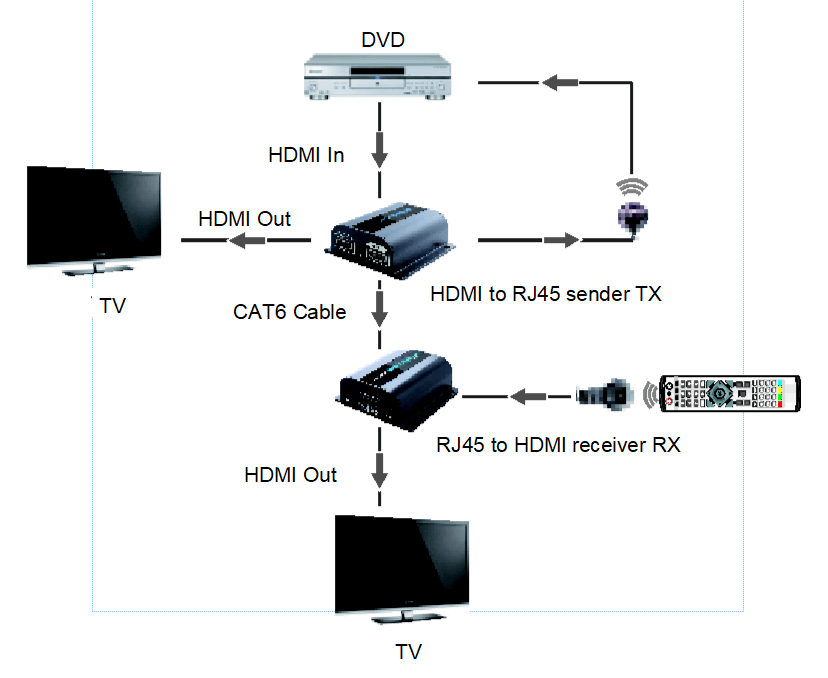

The Ocean Matrix OMX-HDMI-CAT6 extender system includes a transmitter and receiver to send 1080P HDMI signals up to 164 feet over a single CAT6 cable. Features a local HDMI loop-out on the transmitter and IR signal transmission.

Part Number: OMX-HDMI-CAT6 | $89.95

Features:

Supports 1080p HDMI resolution
Transmits over a single CAT6 up to 164 feet
Local HDMI loop-out on transmitter
IR signal transmission support
Works with HDMI HDCP compliant devices

Item Includes:

One transmitter
One receiver
Two 5VDC power adapters
One IR blaster extension cable, connects to transmitter- 3.28 ft (1m)
One IR receiver extension cable, connects to receiver - 3.28 ft (1m)

Warranty:

1 Year

Support Resolution: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Network Cable: Low resistance and consumption oxygen-free copper core UTP or STP
Transmission Range: 1080p resolution up to 164 feet (50m)
IR Remote Control: Supports 20~60KHz standard IR remote controls
Power Supply: 5VDC/1A
Power Consumption: Transmitter 3W, Receiver 2W
Dimensions (LxWxH): 2.82x2.62x0.97in (71.6x66.6x24.8mm) per unit
Weight: Transmitter 2.93 lb., Receiver 2.84 lb. (83g/80.6g)
