Ocean Matrix OMX-HDMI-CAT6X 4K@30Hz at 8-Bit HDMI Extender Set

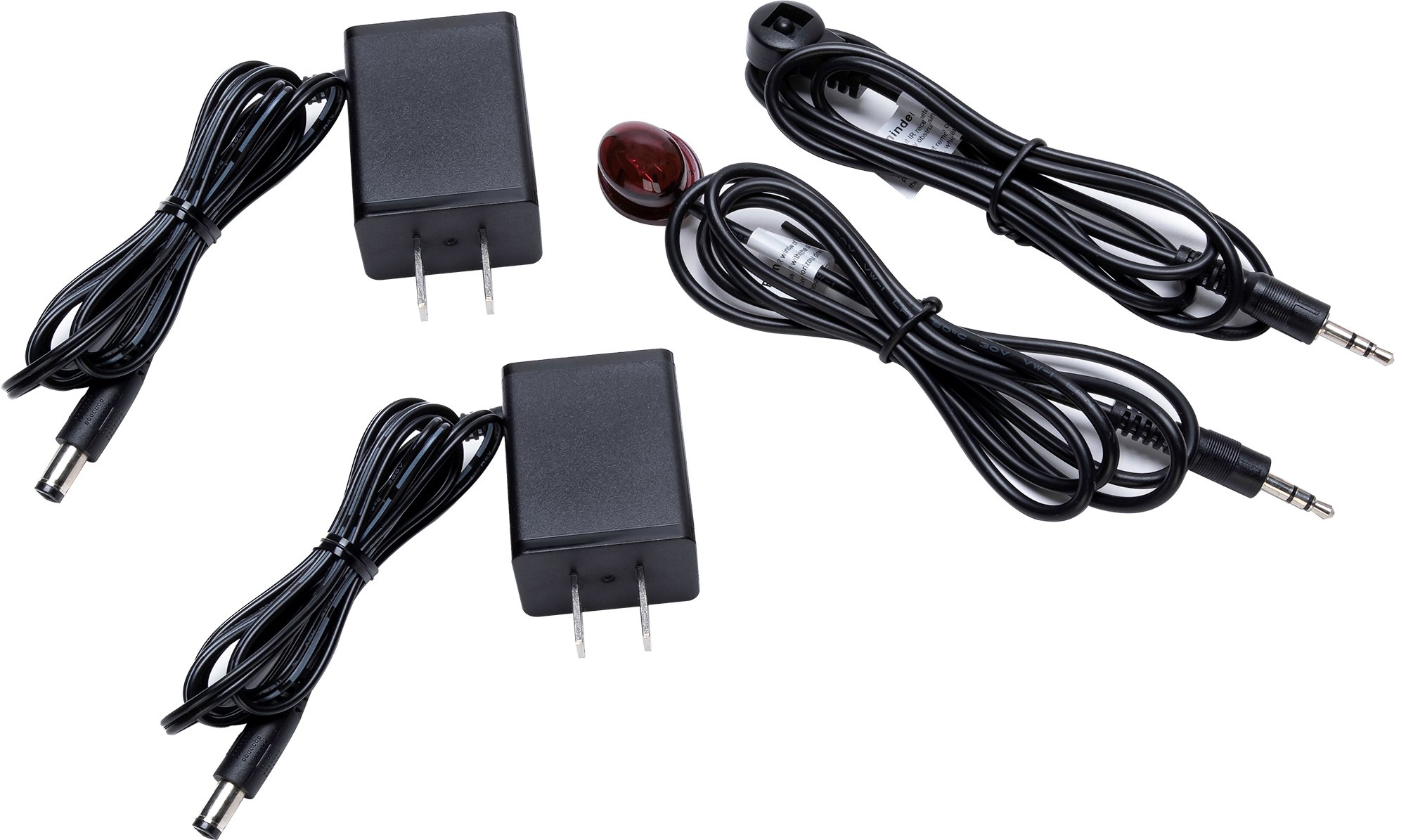

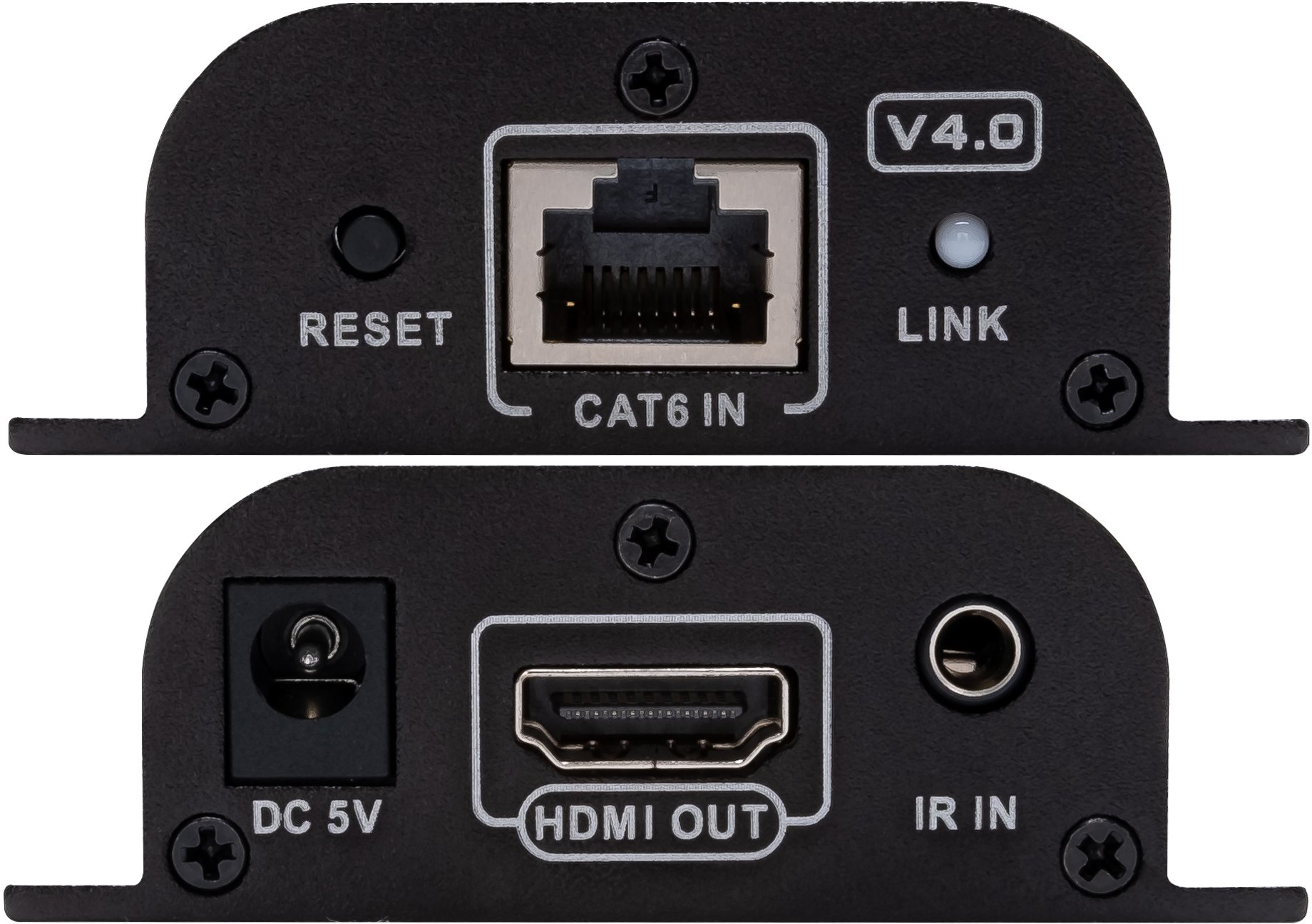

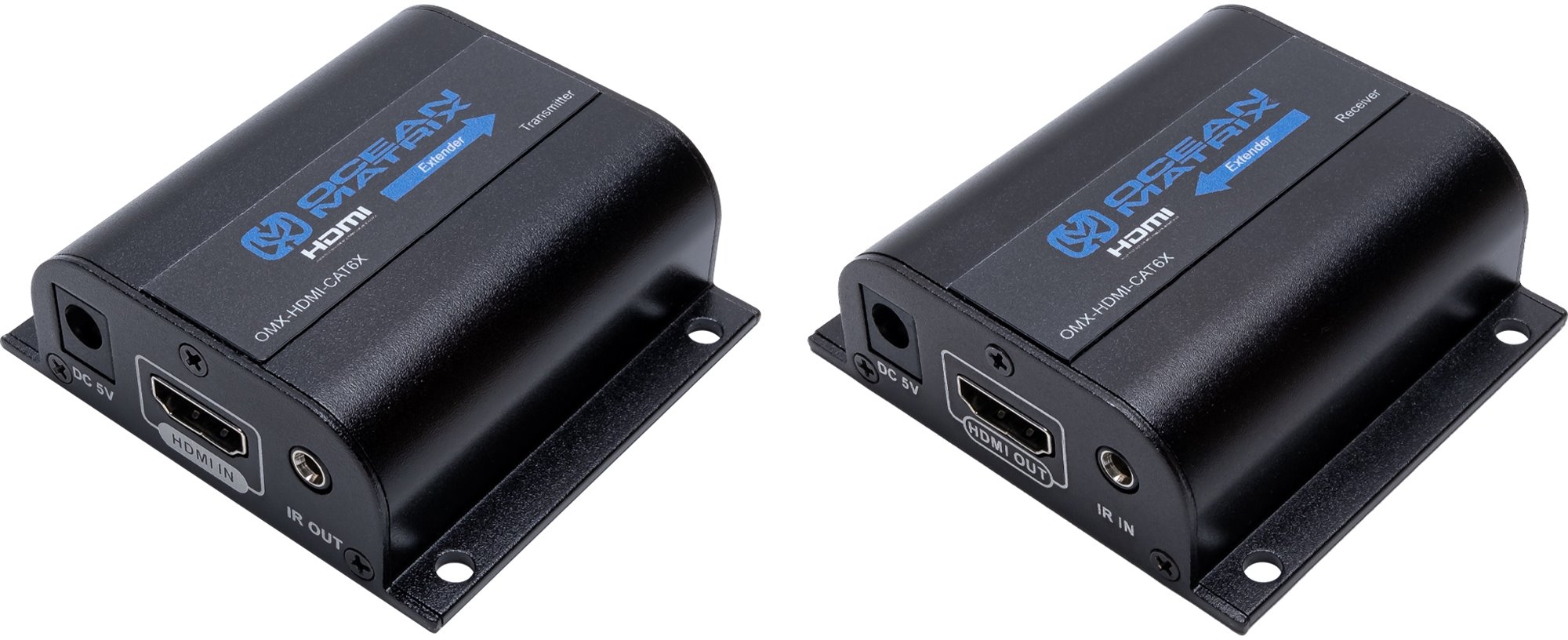

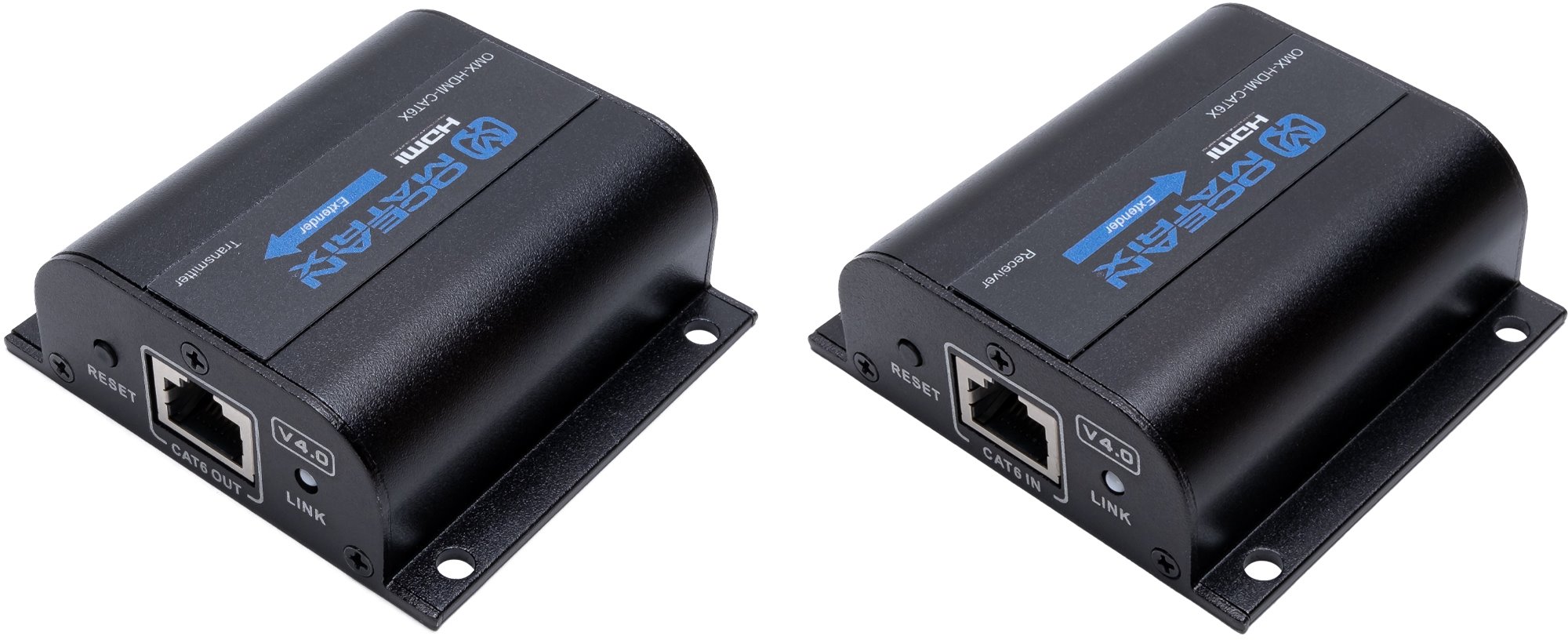

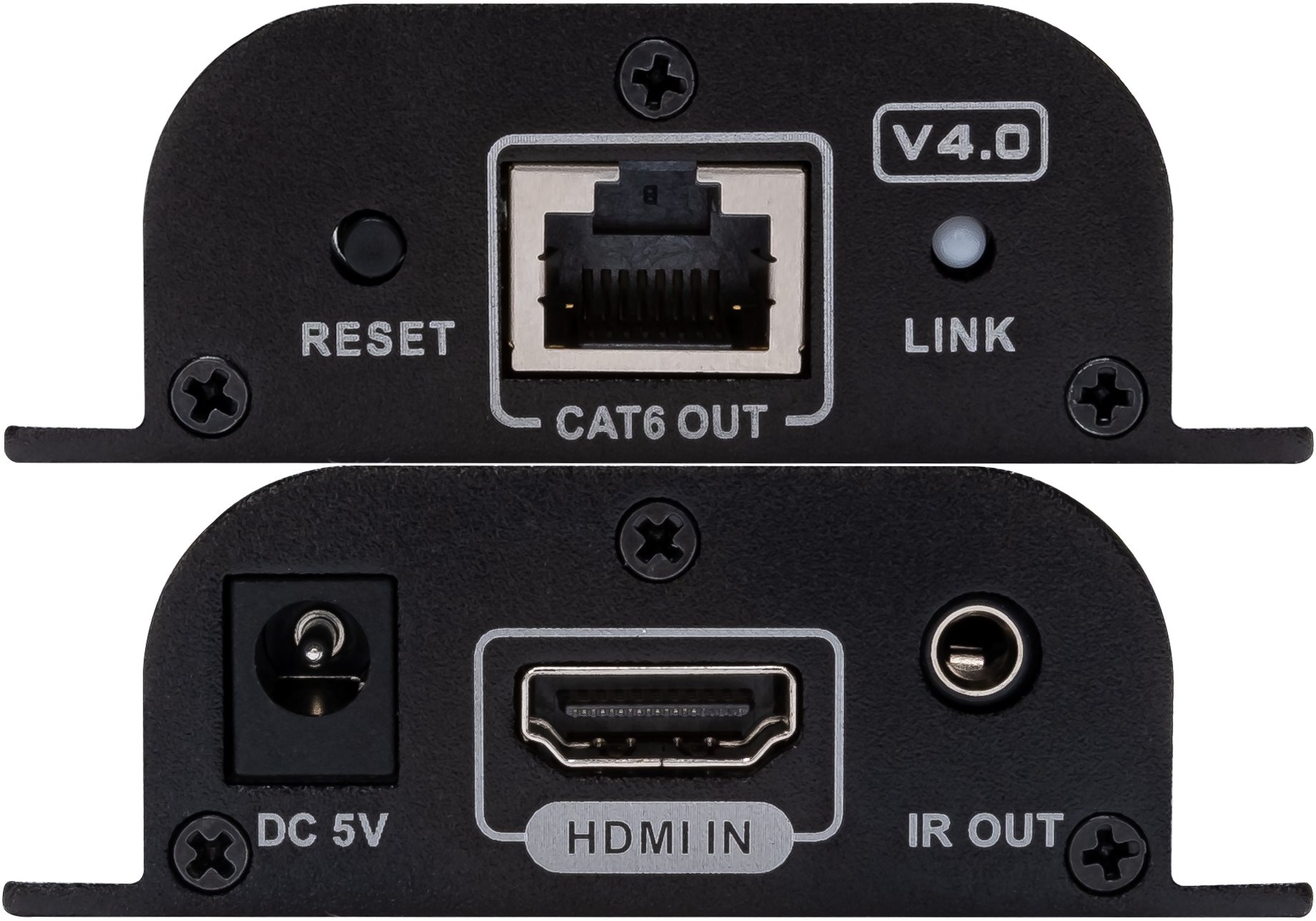

The Ocean Matrix OMX-HDMI-CAT6X extender system includes a transmitter and receiver to extend 4K HDMI signals up to 40 meters and 1080p up to 70 meters over a single CAT6 cable. This set features a local HDMI loop-out on the transmitter, IR signal transmission, and EDID passthrough pass-through support.

Part Number: OMX-HDMI-CAT6X  |  $59.95
  • HDMI Compliance: HDCP 1.4
  • HDMI Resolutions: Up to 4K@30Hz 8-bit
  • Audio Formats: DTS, DTS-HD, PCM, LPCM
  • HDR Supported
  • IR Pass-Back: Frequency Range 20-60KHz
  • Operating Temperature: -20 - 60°C / -4 - 140°F
  • Dimensions (W)(D)(H): 71.6 x 66.6 x 24.8mm / 2.82 x 2.62 x 0.98in
  • Each Unit Weight: 2.86 oz
  • Power Supply: DC5V/500mA
