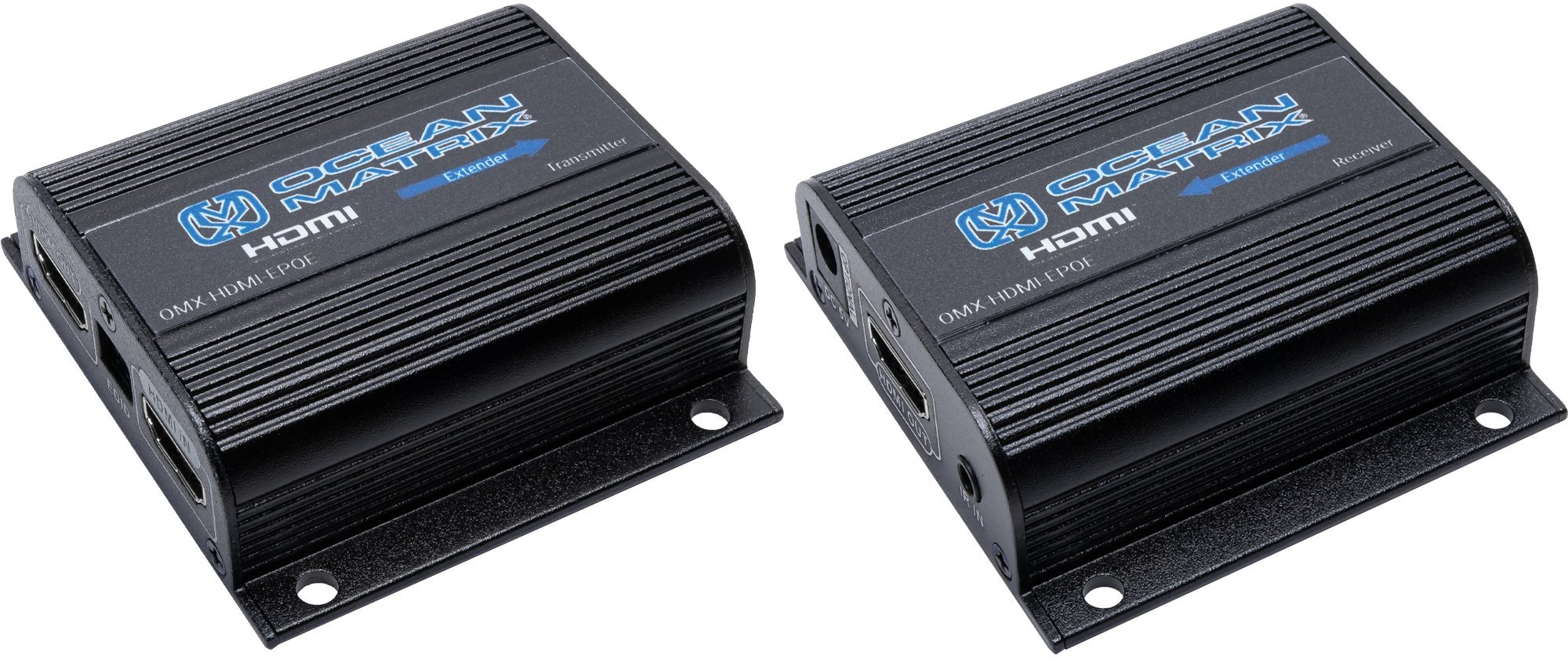

Ocean Matrix OMX-HDMI-EPOE 110 Feet/34 Meter 1080p HDMI Extender with EDID and POE

OMX-HDMI-EPOE 1.jpg
OMX-HDMI-EPOE 2.jpg
OMX-HDMI-EPOE 3.jpg
OMX-HDMI-EPOE 4.jpg
OMX-HDMI-EPOE 5.jpg
Part Number: OMX-HDMI-EPOE  |  $85.00

The Ocean Matrix OMX-HDMI-EPOE extender delivers full 1080p HDMI over CAT6/6A/7 cables up to 110 feet/34 meter (OEM states 131 feet/40 meters) with zero latency and features EDID management and PoE. The power supply is connected to the transmitter and powers the receiver over the network cable.

An IR signal transmission allows for remote control of the source at a secondary location with IR extension cables (included). Ideal for projection screens, remote conferencing, CCTV, high-end security, and HD digital advertising and signage. Includes HDMI loop outputs.

Features:
  • Full HD resolution 1080p@60Hz up to 110 feet/34 meter
  • Compatible with Cat6/6A/7 Cables
  • HMDI Loop Outs
  • Uncompressed and Zero Latency
  • EDID Management
  • PoE Transmitter to Receiver
  • IR Signal Control
Item Includes:

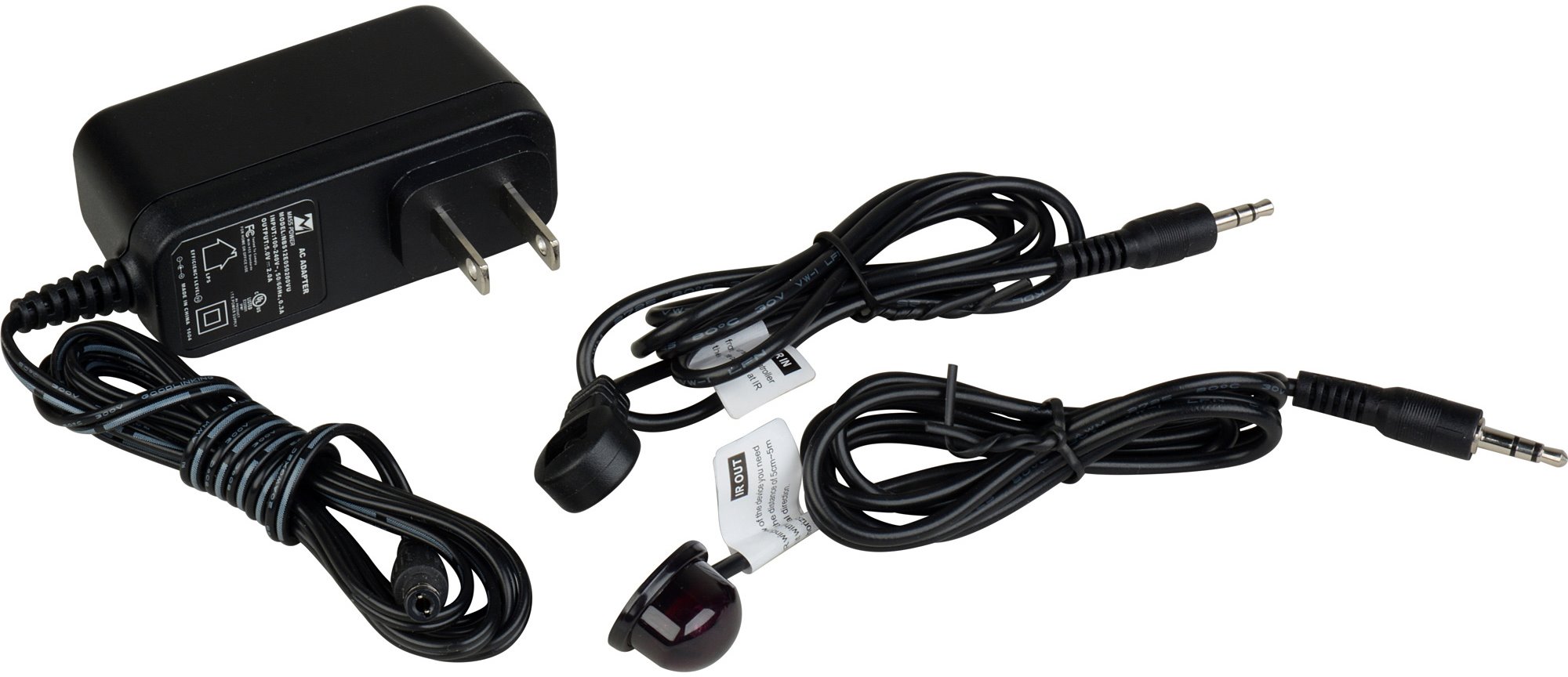

  • 1 Transmitter, 1 Receiver, 1 5VDC/2A Power Supply, IR Extension Cables & Remote Control
Warranty:
  • 1 Year
Specifications
  • Transmission Distance: up to 110 feet/34 meter
  • IR Remote Control: Support 20~60kHz wide frequency
  • HDMI Signal: HDMI1.4a / HDCP: HDCP1.2a
  • Supported Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 3D:1080p@60Hz
  • Audio Format: PCM, AC3, DTS
  • Power Consumption: Each Unit 3W
  • Dimensions LxWxH: 2.82x2.63x0.89 in / 71.6x66.9x22.6 mm each unit
  • Weight: Each Unit 2.5 oz/70g
