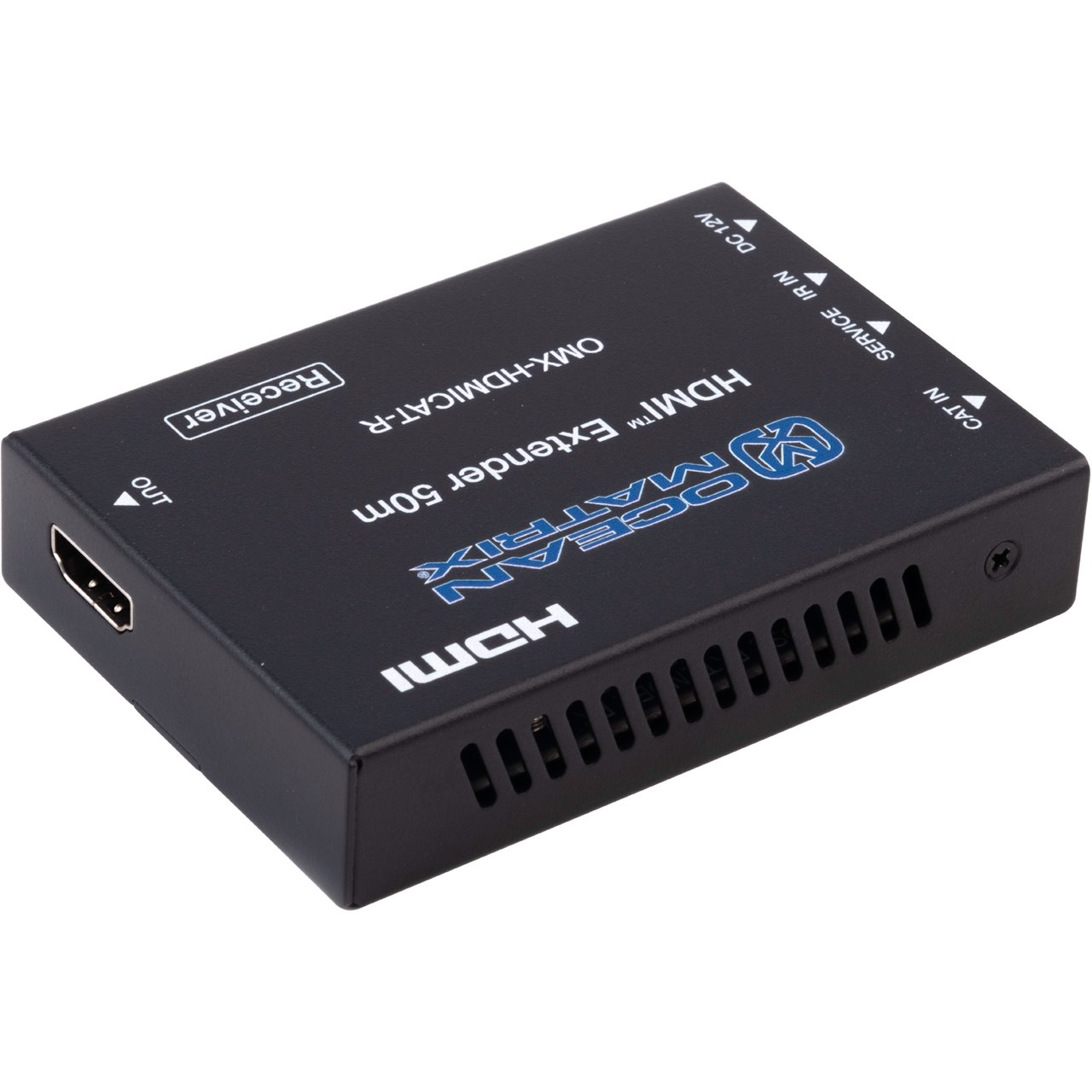

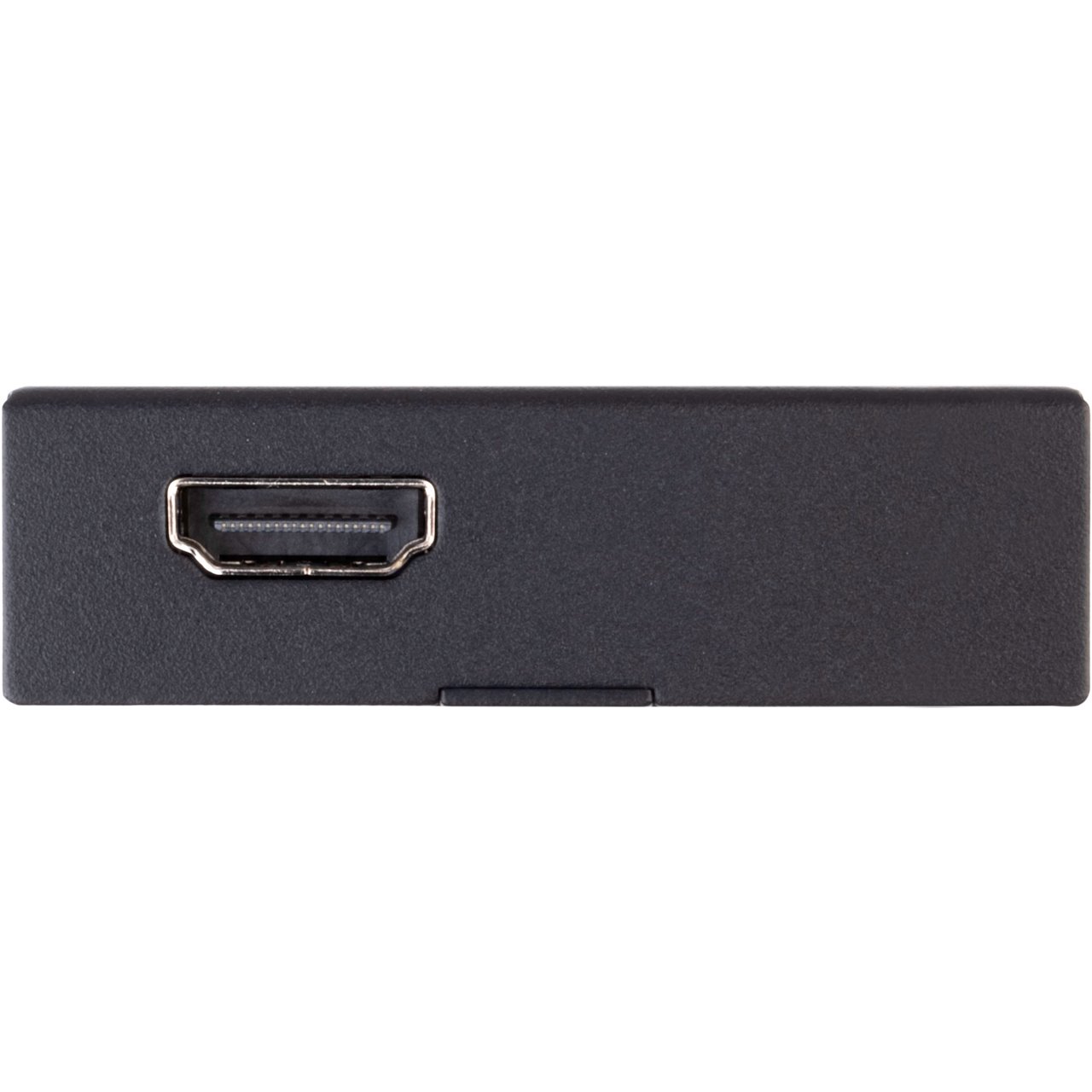

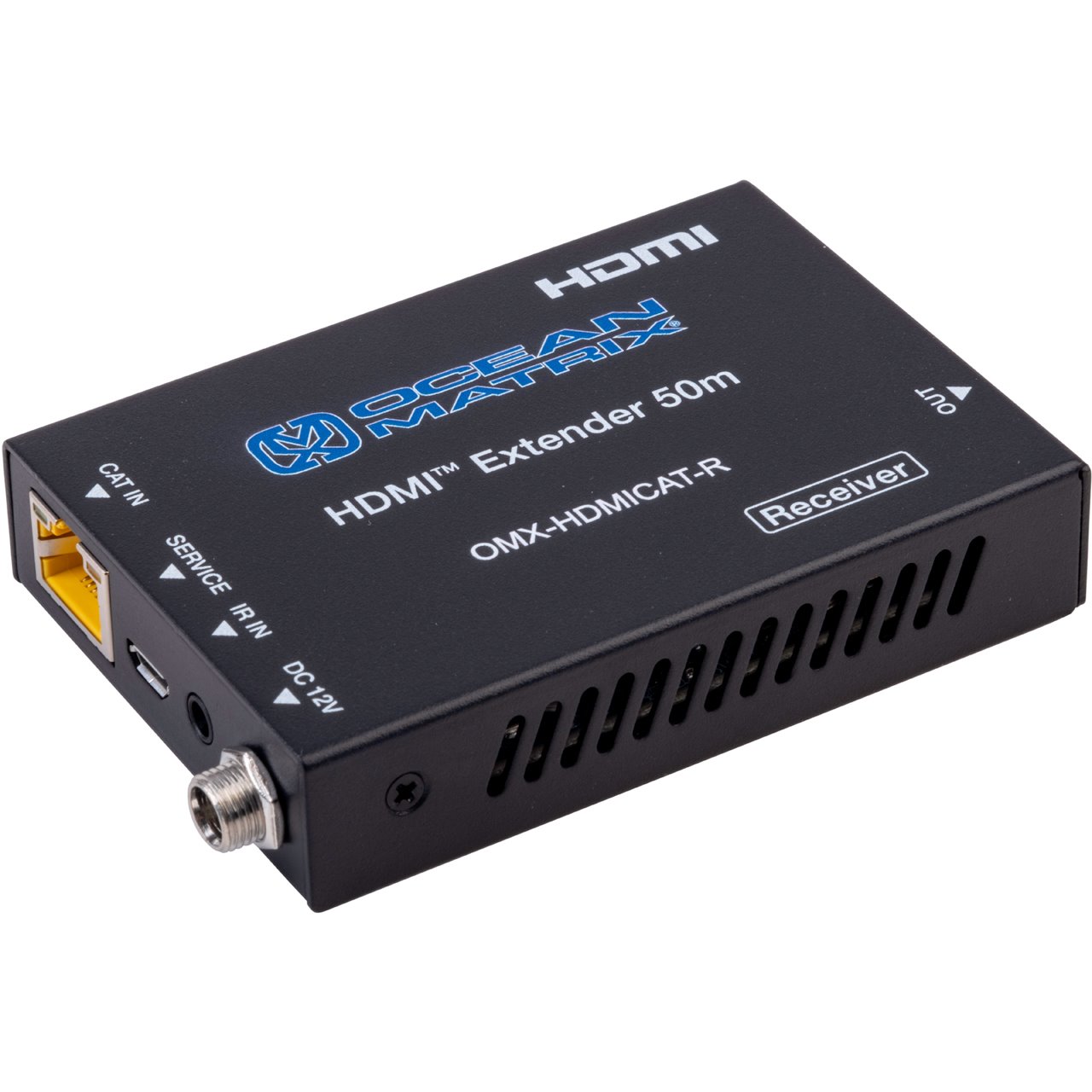

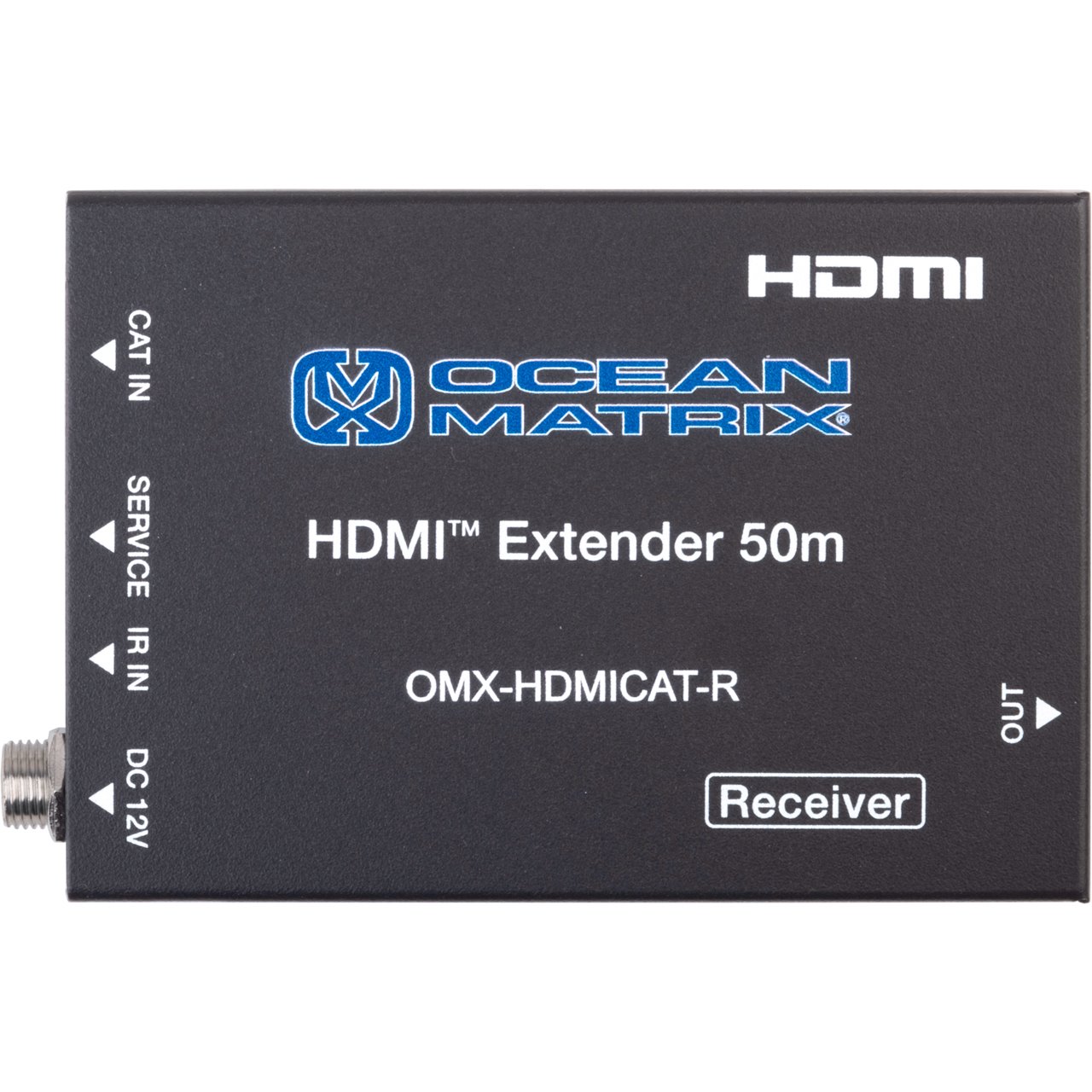

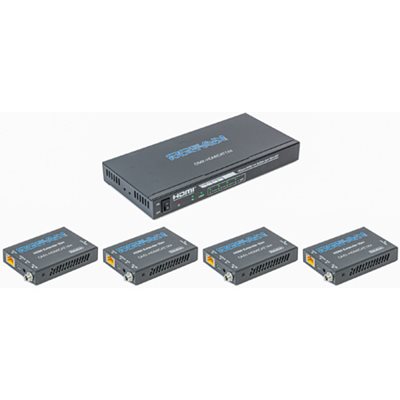

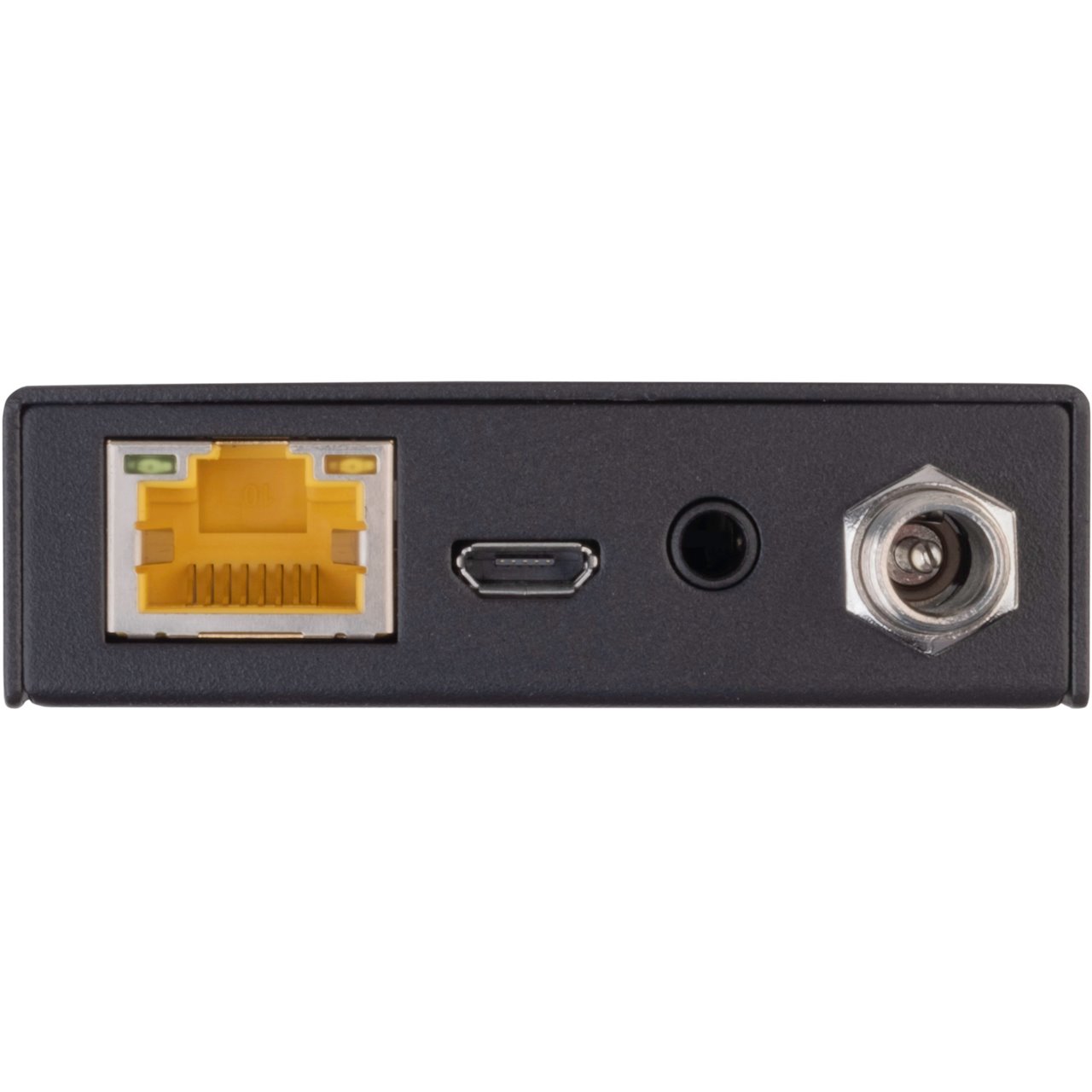

The OMX-HDMICAT-R Receiver is designed for use with the Ocean Matrix OMX-HDMICAT1X4 and OMX-HDMICAT1X8 18Gbps HDMI extender/splitter systems. These systems distribute a 4K2K@50/60Hz 4:4:4, HDMI 2.0 signal up to 115ft/35m over Cat 6/7 to 4 or 8 HDMI receivers. Built-in EDID management confirms signal compatibility between the source and displays. Featuring one-way PoC and IR control, this splitter is a cost-effective solution for multi-display applications in homes, offices, schools, and commercial facilities.
The Ocean Matrix OMX-HDMICAT-R can also be used with the OMX-01HMET0003 18Gb 4K extender system, which supports and sends 4K2K@60Hz 4:4:4 HDMI signals up to 197 feet over Cat6/6a/7 cable and up to 164 feet over Cat5e. It is fully compatible with HDCP 2.2 and offers one-way IR control for source devices. It also has an HDMI Looping output on the transmitter and EDID at the receiver to ensure display compatibility.
