Ocean Matrix OMX-HDMICAT1X8 HDMI 18Gbps 4K@60Hz 1x8 Splitter & Cat6/6a/7 Extender with 8 Receivers - PoC/IR/EDID

Part Number: OMX-HDMICAT1X8  |  $899.95

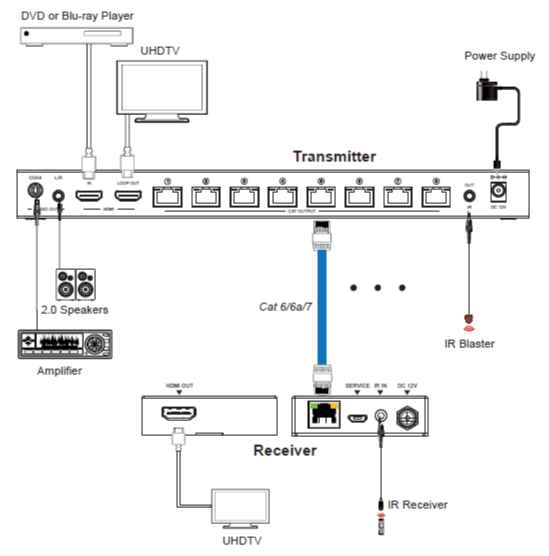

The Ocean Matrix OMX-HDMICAT1X8 18Gbps HDMI extender/splitter distributes a 4K2K@50/60Hz 4:4:4, HDMI 2.0 signal over Cat 6/6a/7 to 8 HDMI receivers up to 115 ft/35m. Built-in EDID management confirms signal compatibility between the source and displays. Featuring one-way PoC and IR control, this splitter is a cost-effective solution for multi-display applications for home, office, schools, and commercial facilities.

Features:
  • Extends 4K2K@50/60Hz up to 35m, 4K2K@30Hz up to 50m, 1080p up to 60m over CAT/6/6a/7 cable
  • Includes 8 Receivers
  • Supports 3D, HDR, HDR10+, HLG and Dolby vision
  • Advanced EDID Management
  • One-Way PoC from Tx to Rx
  • One-Way IR Control
  • HDMI Loop Out
  • 12V/2.5A DC Locking Power Adapter
  • Metal Enclosure

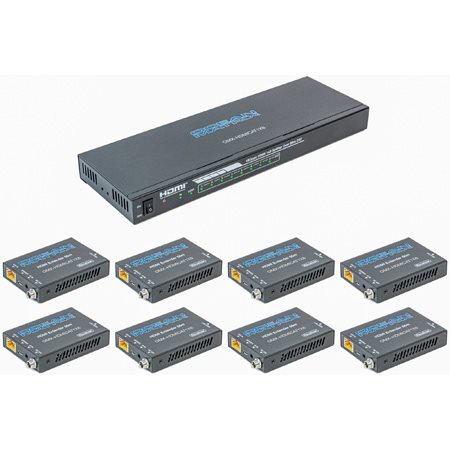

Item Includes:
  • (8) CAT Receivers & (8) 20K-60KHz IR Receiver Cables (4.9ft/1.5m), (1) IR Blaster (4.9ft/1.5m), (1) 12V/2.5A DC Locking Power Adapter
Warranty:
  • 1 Year
Specifications
  • HDMI 2.0, HDCP 2.2, and DVI 1.0 Compliant
  • Audio Pass-Through up to 7.1CH HD Audio
  • Supports 3D, HDR, HDR10+, HLG, and Dolby Vision
  • Supports Digital and Analog Audio De-embedded Outputs
  • Video Bandwidth: 18Gbps
  • Power Consumption: 25.44W
  • Power Input: 100-240V AC 50/60Hz
  • Power Output: 12/2.5A DC
  • Dimensions (WxDxH): TX 11.8 x 3.9 x 1.1 inch / RX 3.5 x 2.4 x 0.7 inch
  • Weight: TX 1.81 lb / RX 0.34 lb
