Ocean Matrix OMX-HDMI-HDB1X8 1x8 HDMI Extender Splitter Set - 1080p60 Over CAT5/5e/6

OMX-HDMI-HDB1X8 1.jpg
OMX-HDMI-HDB1X8 2.jpg
OMX-HDMI-HDB1X8 3.jpg
OMX-HDMI-HDB1X8 4.jpg
OMX-HDMI-HDB1X8 5.jpg
Part Number: OMX-HDMI-HDB1X8

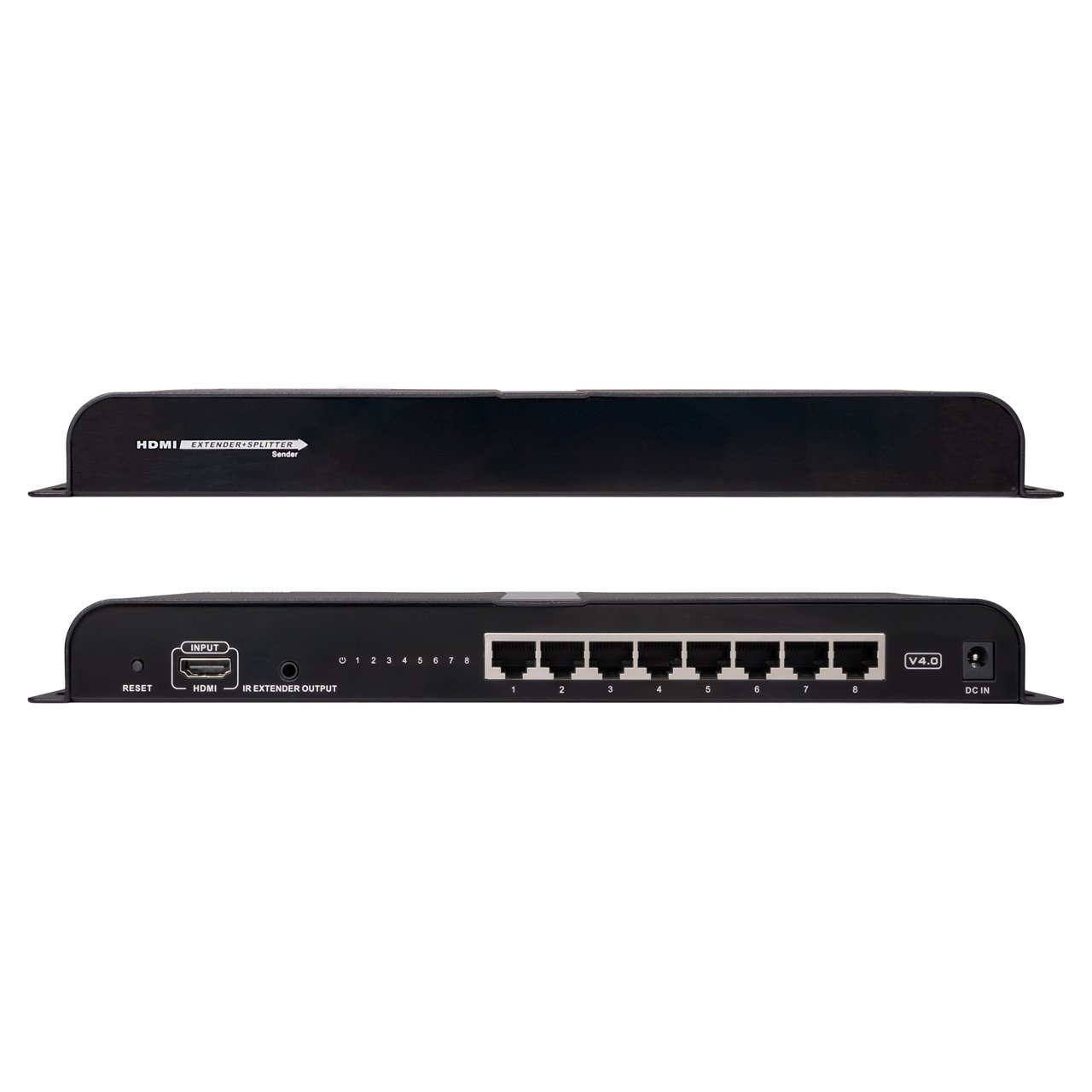

The Ocean Matrix OMX-HDMI-HDB1X8 splitter extender system over a single Cat5/Cat5e/Cat6 distributes 1 HDMI source to 8 HDMI displays simultaneously. This system extends high definition audio/video transmission beyond the standard distances for HDMI cable limitations via HDbitT technology. The OMX-HDMI-HDB1X8 delivers full 1080P HDMI signal up to 394 feet over a single Cat6 network cable. An IR signal transmission allows for remote control of the source at a secondary location with IR extension cables (included).

Ideal for projection screens, remote conferencing, CCTV, high-end security, and remote HD monitoring.


Features:

  • Splits a single HDMI input signal into 8 HDMI output signals identical to the input
  • Extends HDMI signals up to 80m (CAT5) 100m (CAT5e) and 120m (CAT6)
  • Supports full HD resolutions up to 1080p@60Hz
  • Plug and play
  • Rugged metal mountable housing
  • Lightning, surge, and ESD protected

Item Includes:

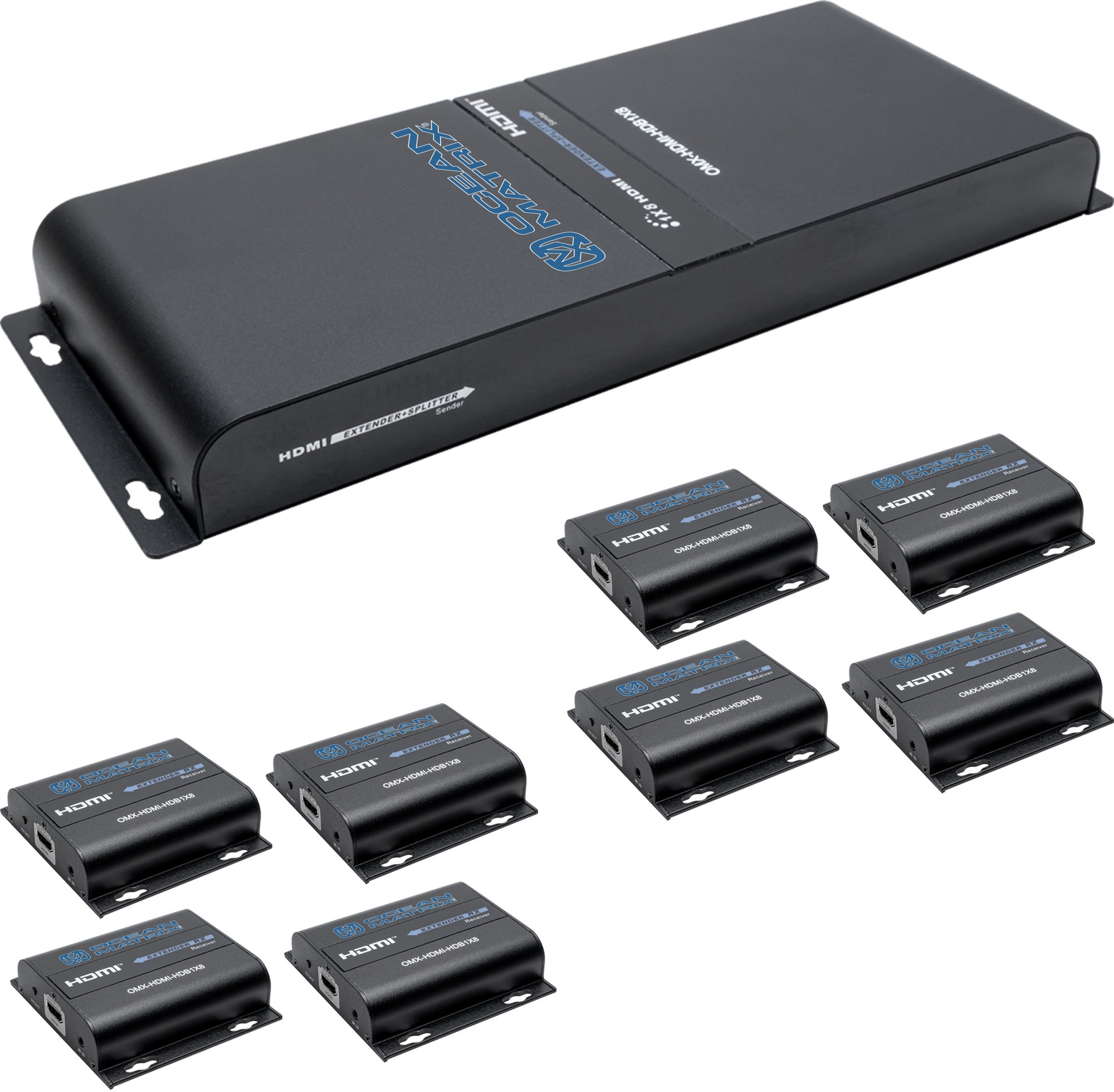

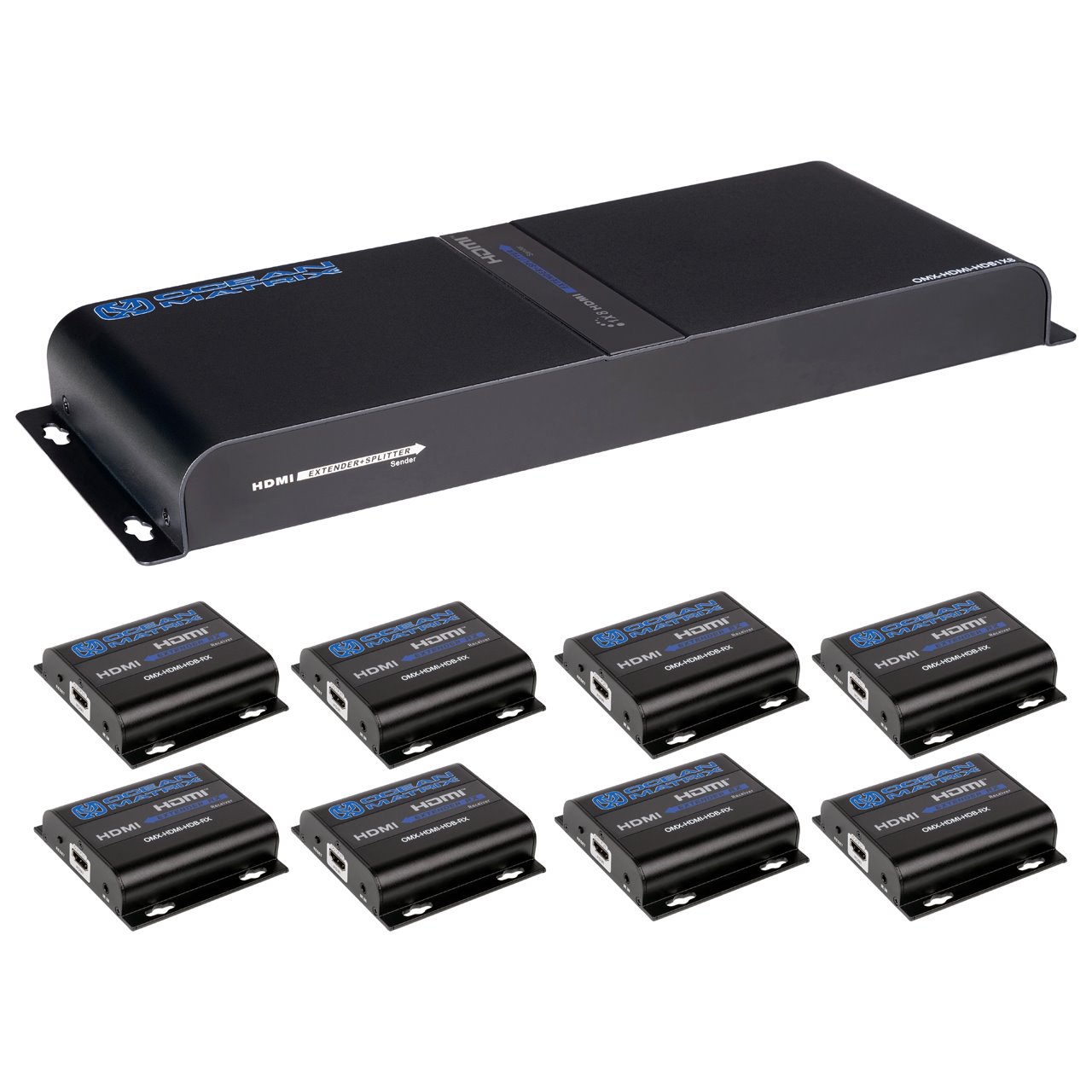

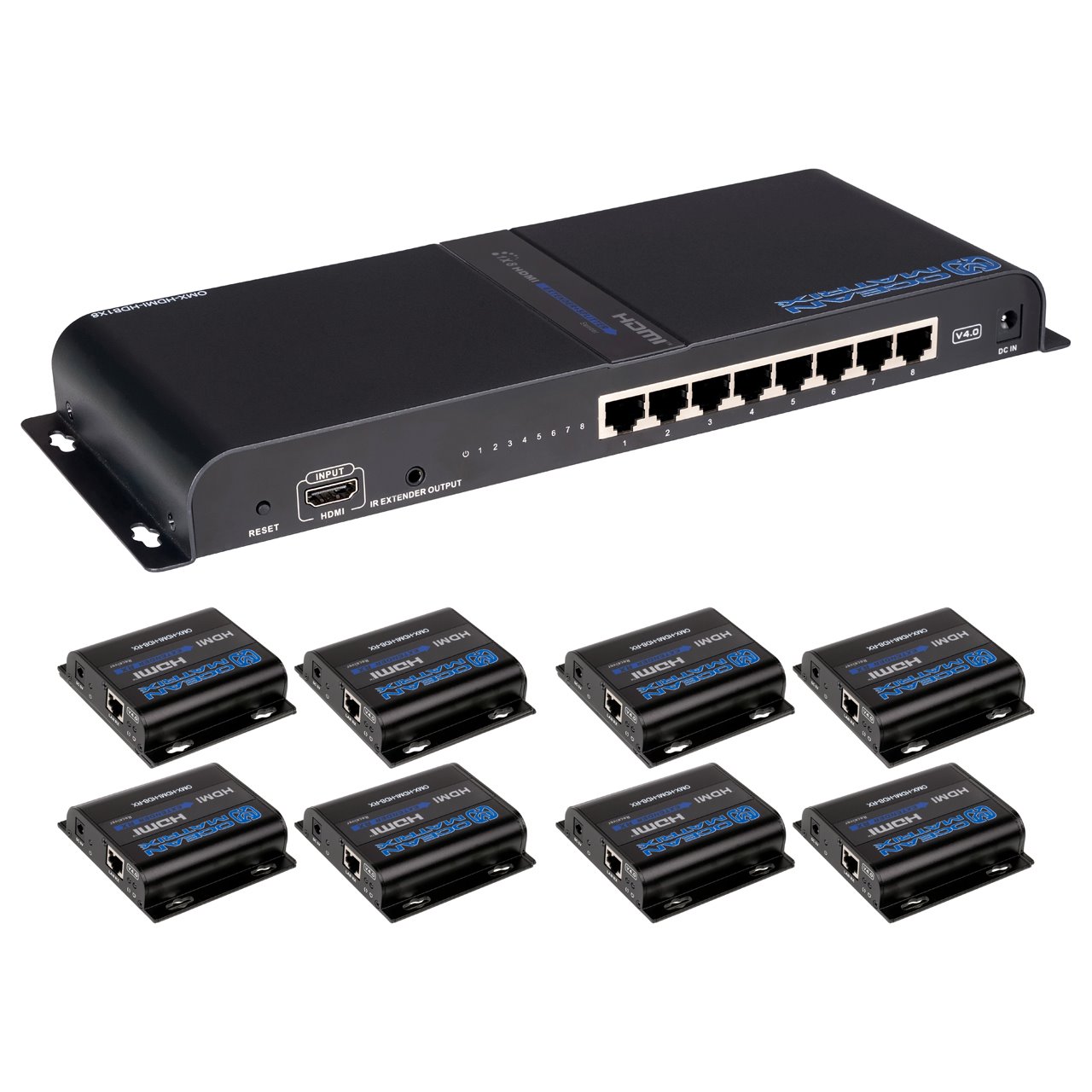

  • 1 x OMX-HDMI-HDB1X8 Extender Set (1 x Extender 8 x Receivers)

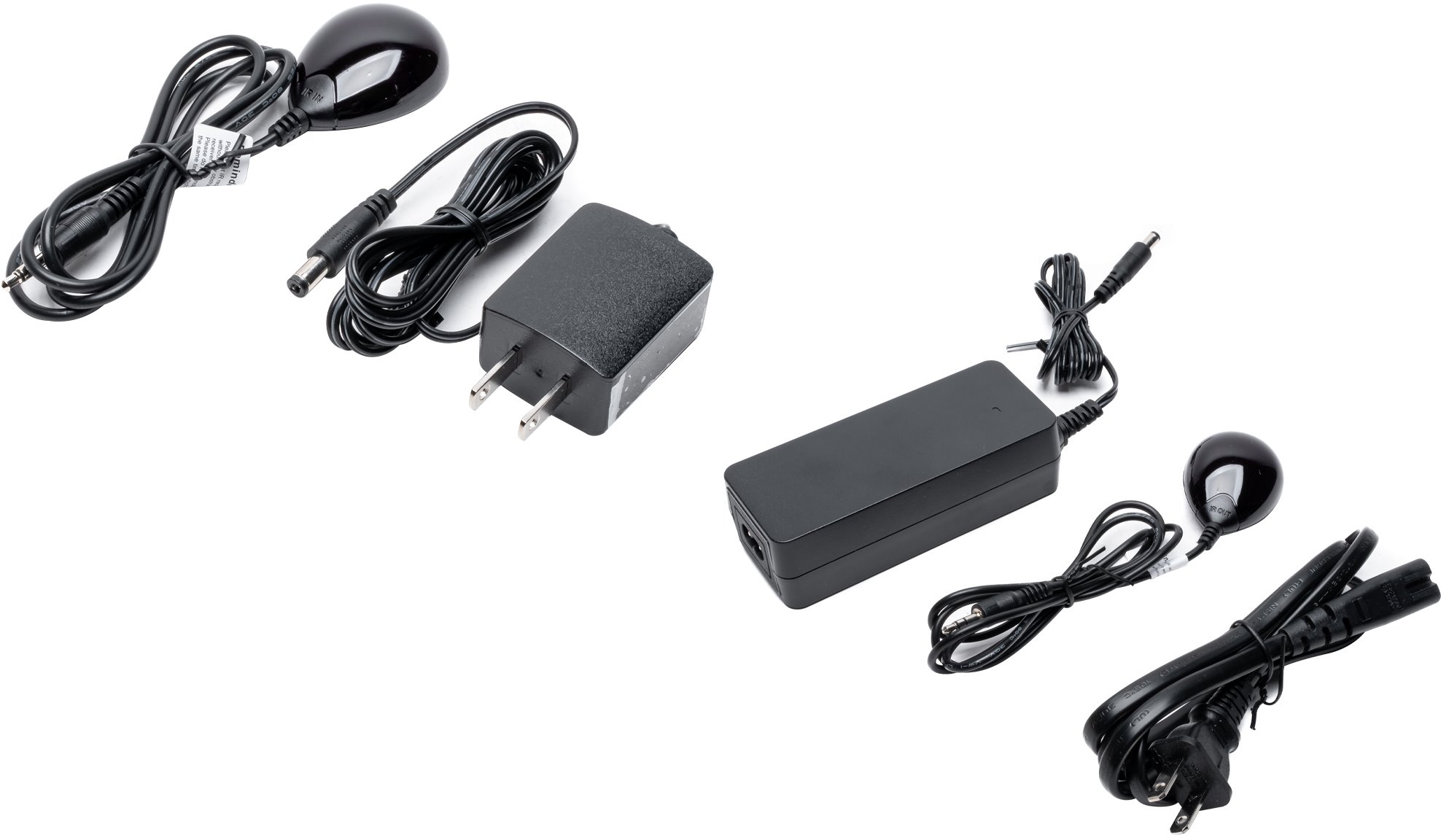

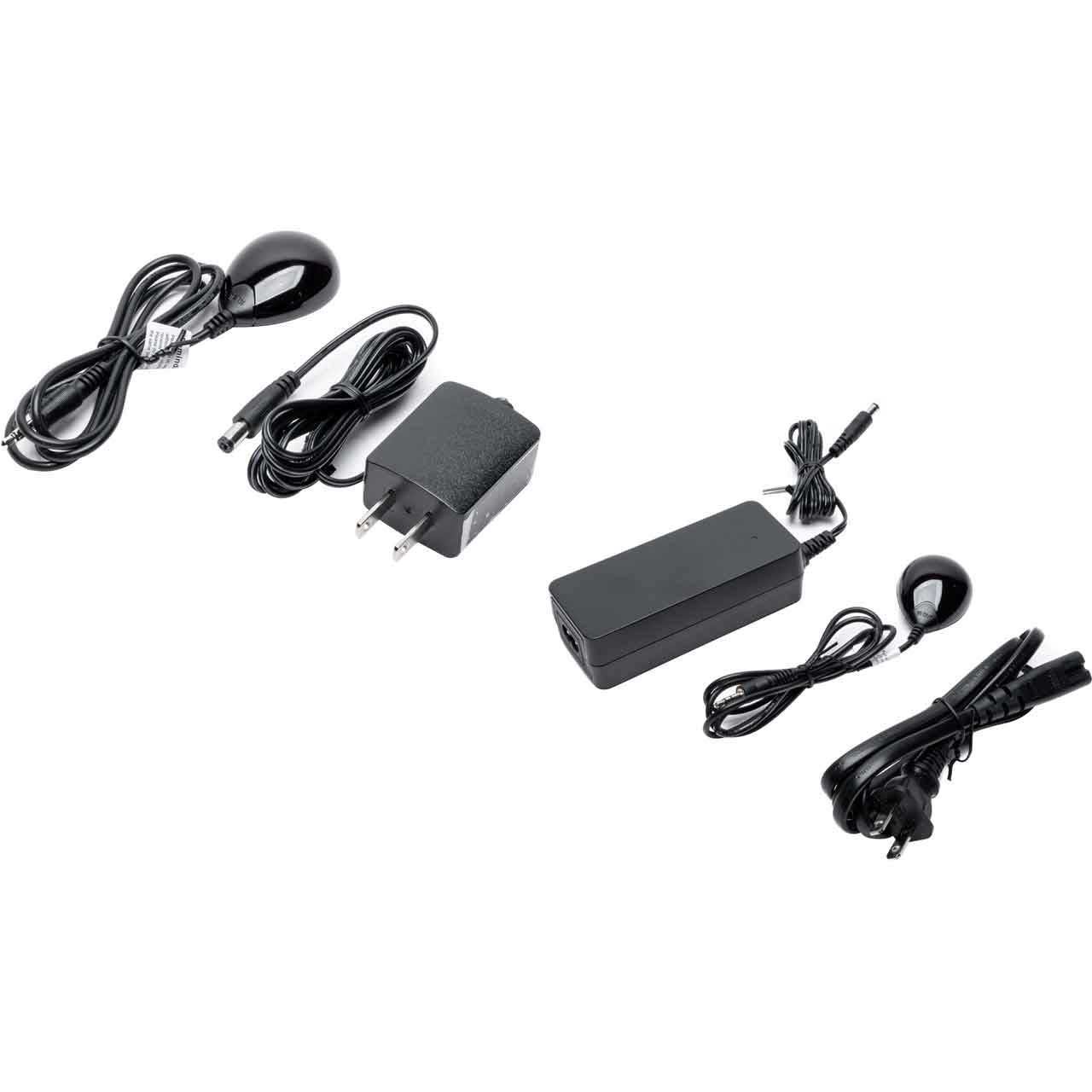

  • 1 x DC12/3A Adapter
  • 8 x DC5/1A Adapter
  • 1 x IR Blaster Extension Cable
  • 4 x IR Receiver Extension Cable

Specifications
  • Inputs: 1 x HDMI
  • Outputs: 8 x RJ45
  • HDMI Version: HDMI1.3 Compatible with HDCP1.4
  • Supported Resolutions: 480i@60Hz / 480p@60Hz / 576i@50Hz / 576p@50Hz / 720p@50/60Hz / 1080i@50/60Hz / 1080p@50/60Hz
  • Transmission Distance: 1080p 60Hz up to 120m with full HD over a single CAT6 cable
  • IR Signal: Supports 20-60kHz IR device
  • Operating Temperature: 32°F - 140°F (0°C - 60°C)
  • Power Supply: DC12V/3A
  • Power Consumption: < 24W
  • Dimensions (LxWxH): TX: 11.75 x 4.33 x 1.17in RX: 3.70 x 3.80 x 0.93in
  • Weight: TX: 1.75lbs RX: 0.30lbs
